4.11.3 Event

4.11.3.1 Detect
In the main menu, from Setting->Event->Detect, you can see motion detect interface.
See Figure 4-109.There is three detection types: motion detection, video loss,
tampering.
The video loss has no detection region and sensitivity setup and tampering has no
detection region setup.
You can see motion detect icon if current channel has enabled motion detect
alarm.
You can drag you mouse to set motion detect region. Please click OK button to
save current region setup. Right click mouse to exit current interface.
For digital channel, the detect function refers to support detection function of the
front-end and support local activation function. The front-end
enable/disable status, sensitivity and region setup. You can get corresponding
prompt if front-end can not get the above information. You can change front-end
setup if it can get.
4.11.3.1.1 Motion Detect
After analysis video, system can generate a video loss alarm when the detected moving
signal reached the sensitivity you set here.
Detection menu is shown as below. See Figure 4-109.
Event type: From the dropdown list you can select motion detection type.
Channel: Select a channel from the dropdown list to set motion detect function.
Enable: Check the box here to enable motion detect function.

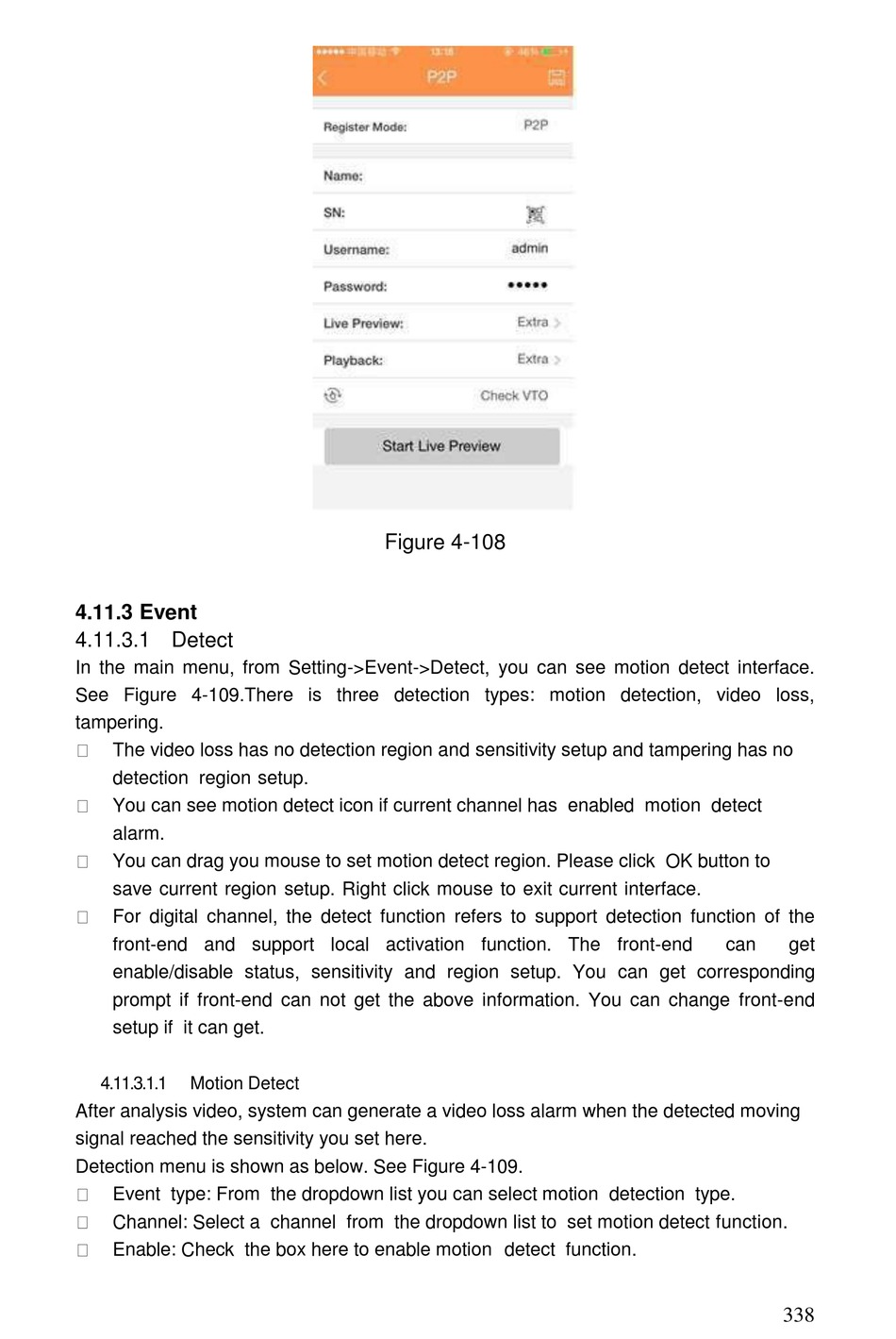

Figure 4-108
can get
338
