Lan Mode - Optiview HDVR4/8/16-Q2 User Manual

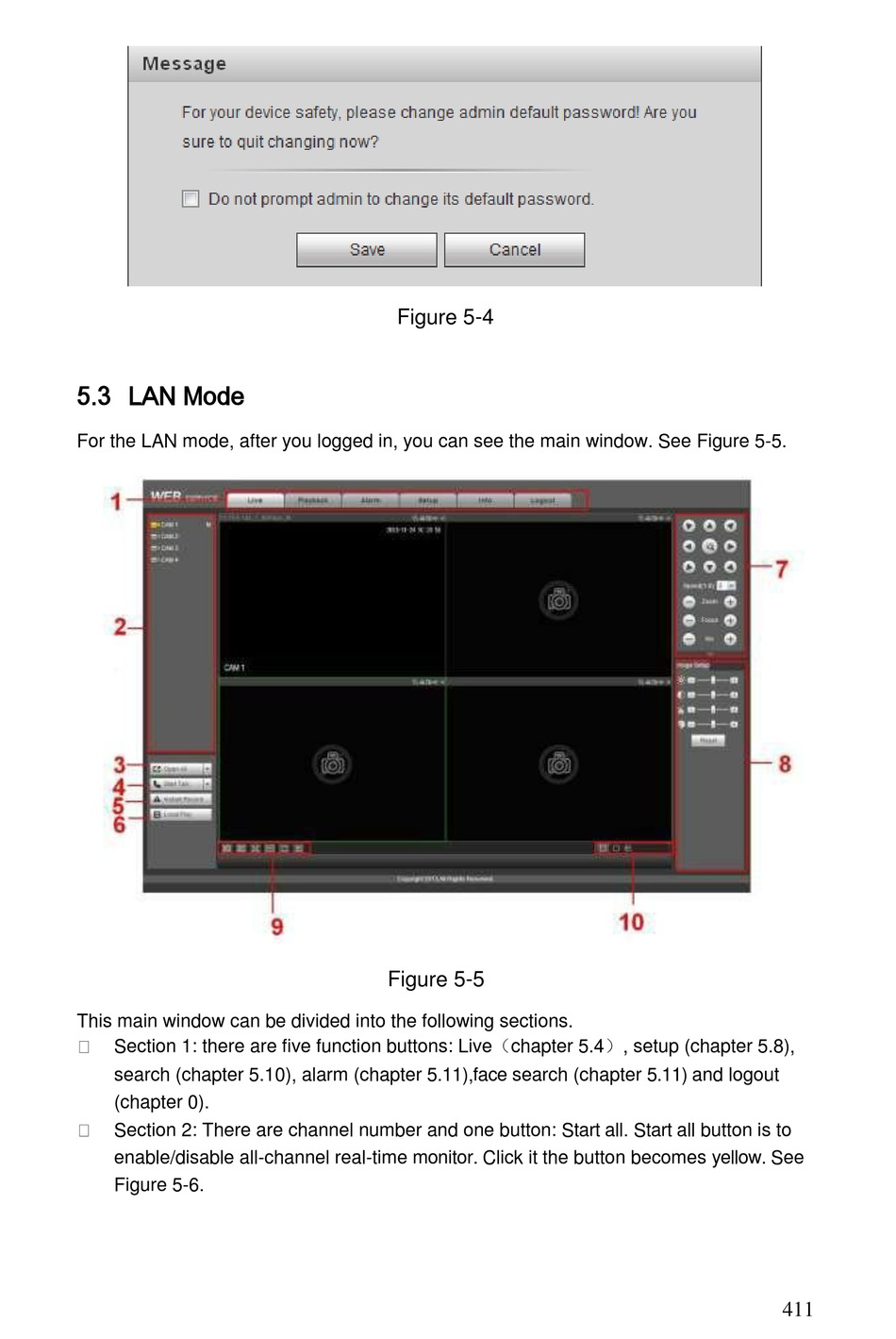

5.3 LAN Mode

For the LAN mode, after you logged in, you can see the main window. See Figure 5-5.
This main window can be divided into the following sections.
Section 1: there are five function buttons: Live（chapter 5.4）, setup (chapter 5.8),
search (chapter 5.10), alarm (chapter 5.11),face search (chapter 5.11) and logout
(chapter 0).
Section 2: There are channel number and one button: Start all. Start all button is to
enable/disable all-channel real-time monitor. Click it the button becomes yellow. See
Figure 5-6.
Figure 5-4
Figure 5-5
411
