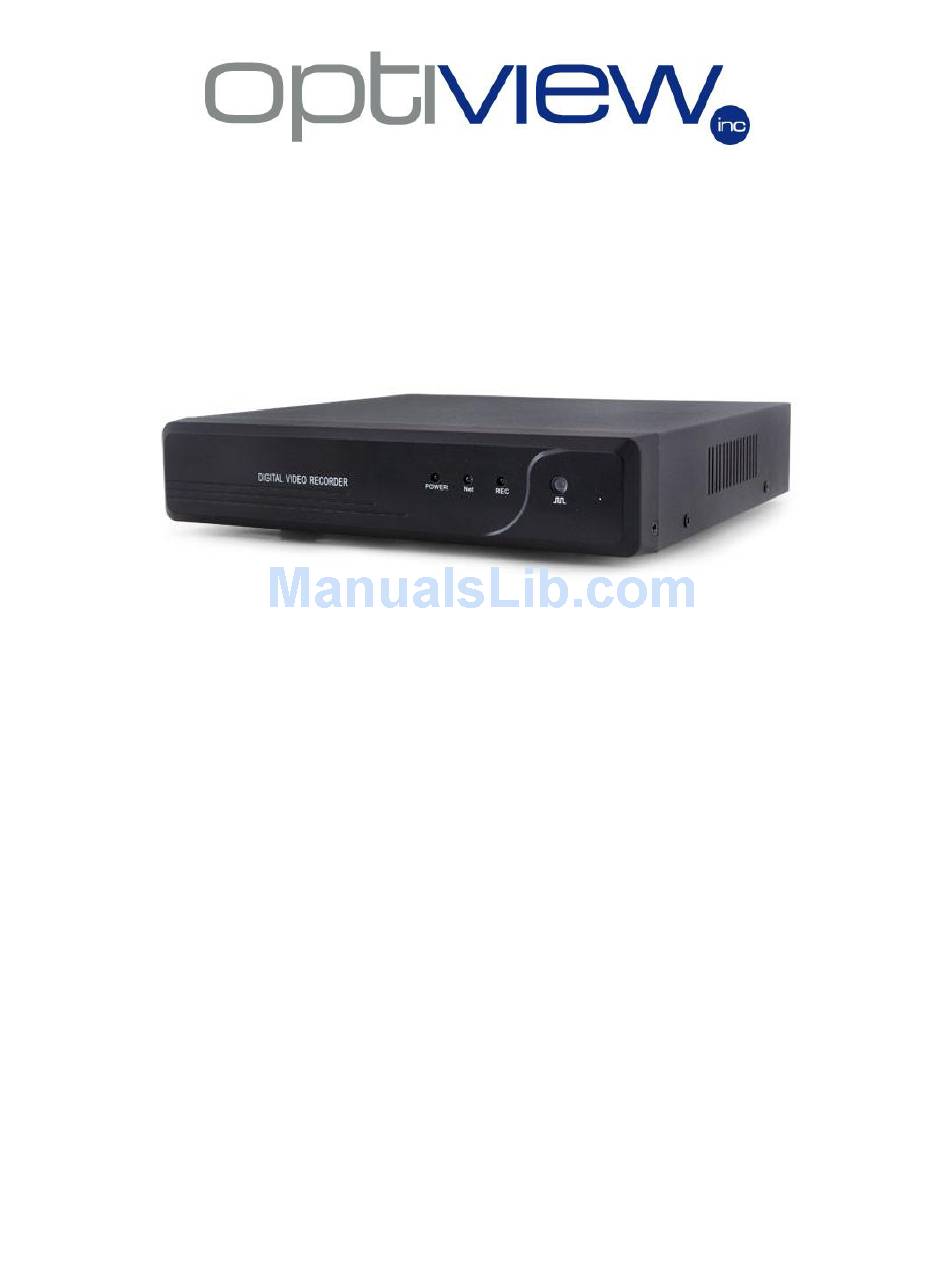

- Page 1 DVR4Lite DVR System Remote Client Manual Including IE Access Guide...
-
Page 2: Table Of Contents
USER’S MANUAL USER’S MANUAL..........................3 Preface ............................3 1. Introduction .......................... 3 2. System requirement and executing environment ..............3 2.1. Supported operating System: ..................3 2.2. Hardware requirement (recommend): ............... 3 2.3. Web bandwidth requirement: ..................3 3. Functions and Operation Instruction ................... - Page 3 3.7.2. shortcut for Local Folder ................24 3.7.3. customize shortcut bar .................. 24 3.8. languages support ....................25...
-
Page 4: User'smanual
USER’S MANUAL Remote Surveillance System Client Software Preface Remote Surveillance System Client Software (short for RSSC below) is a typical client management program whose main function is to manage small quantity security surveillance devices. It releases with the device and does not support the products from other manufacturers. This manual will help you to familiarize with the software and master its operation methods. -
Page 5: Login And Exit
Figure 3.1 ① Menu bar – includes almost operation command for Remote Surveillance System Client Software. ② Shortcut bar – shows shortcut icons you use frequently. ③ Remote View – Displays the remote live view. ④ P.T.Z. Function – Shows functions for PTZ control. ⑤... -
Page 6: Switch User
Figure 3.1.1.1 NOTE: The factory default for account name is “admin” and for password is “88888888” respectively. You can change the default account name and password once you are logged in. 3.1.1.2. Switch user To switch user after you login, Click on “System(S) > Switch User”, and then input your switch account name and password. -
Page 7: To View The Remote Dvr Status
Figure 3.1.2.1 3.1.2.2. To view the remote DVR status Operation steps: (1) After connected to the remote DVR, move the mouse cursor on the connected DVR name, the remote DVR status indicator will popup as shown as follow. Figure 3.1.2.2 Remote DVR status indicator: Cruise –... -
Page 8: To View The Remote Dvr Live Video
Panel Lock – indicates remote DVR panel lock enable/disable. Schedule – indicates remote DVR schedule active/inactive. Buzzer – indicates remote DVR buzzer on/off. Alert – indicates remote DVR alert active/inactive Prerecord Buffer – indicates remote DVR enable/disable prerecording buffer. Time – displays the current date and time of the DVR Server the Remote Client is connected to. -
Page 9: Remote Client Osd
3.1.3 Remote client OSD Figure 3.1.3 ① Time – displays the current date and time of the DVR Server the Remote Client is connected ② Channel name– Indicates camera label/channel name. To modify, please go to remote configuration. 3.1.4. Screen Layout and Full Screen Click sub option “Screen Layout”... -
Page 10: Screen Capture
1. To capture an image of the display screen, select a live video screen you want to capture then click on the Snap button on the live video tools bar. The image will be saved in the path of Local Folder. Figure 3.1.5 3.1.6. -
Page 11: Image Control And Ptz Function
Figure 3.1.8 3.2. Image control and PTZ Function Select/unselect “View(V) > PTZ” to show/hide the PTZ Control panel in the left of the windows. Click on to lock PTZ Control and image control panel. Click on unlock PTZ Control and image control panel. Figure 3.2 3.2.1. -
Page 12: Ptz Function
3.2.2. PTZ Function To use PTZ Function, ensure that your camera is a PTZ (Pan/Tilt/Zoom) camera. Figure 3.2.1 1. Pan/Tilt buttons – Pans/Tilts camera 2. Auto Pan – Executes a pre-programmed sequence of PTZ commands 3. Focus Control – Adjusts focus 4. -
Page 13: Group Management
Figure 3.3 3.3.1. Group Management 3.3.1.1. Create a group To create a DVR connection, you must create a group first. (1) Click “System(S) > Device Management” to open DVR Management windows. (2) Right-click on Group Management column on the left of the windows, then select “Add” option. -
Page 14: Modify A Group
Figure 3.3.1.1 3.3.1.2. Modify a group (1) To modify the group, right-click on the selected group name and then select “update” option. (2) Modify the configuration, and then click on Update button. Figure 3.3.1.2 3.3.1.3. Remove a group (1) Right-click on the selected group under “Group Management” column on the left of the windows, then select “Remove”... -
Page 15: Create/Modify A Dvr Connection
3.3.2. Create/modify a DVR connection 3.3.2.1. Create a DVR connection After create a group, you can create a DVR connection. (1) Click “System(S) > Device Management” to open DVR Management windows. (2) Right-click on DVR Management column on the right of the windows, then select “Add” option to open DVR add windows. -
Page 16: Modify A Dvr Connection
3.3.2.3. remove a DVR connection (1) Right-click on the selected DVR connection under “DVR Management” column on the right of the windows, then select “Remove” option to remove an existed DVR connection. 3.3.2.4. Search a DVR connection by name (1) enter the DVR connection name. (2) click on Search button. -
Page 17: Current Account Password Changing
Figure 3.4.1 3.4.2. User access management 3.4.2.1. create a new user access level You must create a access level before create a new account. (1) Under “Account Management” windows, click on the “User Access” tab. (2) Right-click on “Access Level” column on the right of the windows, then select “Add” option to create a new access level. -
Page 18: Create A New User Access Level
Figure 3.4.2.1 3.4.2.2. remove an access level (1) Under “Account Management” windows, click on the “User Access” tab. (2) Right-click on the selected group under “Access Level” column on the right of the windows, then select “Remove” option to remove an existed user access level. 3.4.3. -
Page 19: Modify A Exist Account
Figure 3.4.3.2 3.4.3.3. remove an account (1) Under “Account Management” windows, click on the “User Access” tab. (2) Right-click on the selected account under “Access Level” tab, then select “Remove” option to remove an existed account. 3.5. Remote server management Remote server management include 3 section: (1) remote video search, playback and backup (2) remote server logs view and export... - Page 20 Figure 3.5.1.1 search results by time Figure 3.5.1.2 backup the selected recording clip...
-
Page 21: Remote Server's Logs Management
Figure 3.5.1.3 backup processing 3.5.2. remote server’s logs management Click on “Remote(M) > Remote Log” to open “Log Management” windows. Figure 3.5.2.1 (1) DVR list – display remote server list. (2) event filter - Displays drop list menu for type of event. (3) operator filter - Displays drop list menu for operator. -
Page 22: Remote Server Configuration
Figure 3.5.2.2 3.5.3. remote server configuration Click on “Remote(M) > Remote Configuration” to open “Remote Configuration” windows. Click on Configuration button to open remote server configuration windows. To configure the remote server under remote server configuration please refer to the user’s manual of DVR, which is packed in the box with the device. -
Page 23: Add-On Tools
(1) PTZ- display/hide PTZ control panel and image control panel. (2) DVR List – display/hide DVR list panel. (3) live tools bar – display/hide live tools bar. (4) shortcut bar – display/hide shortcut bar. (5) screen layout – display/hide screen layout. Figure 3.6.1 Figure 3.6.1 3.7. -
Page 24: Video Player
Figure 3.7 3.7.1. video player Click on “Tool(T) > player” to open the video player. Figure 3.7.1 (1) playback screen – display the playback video. (2) open – open the local video files or remote server video files. (3) stop – stop playback. (4) SF –... - Page 25 (7) repeat – playback the video clip in cyclic mode. Next Frame – Moves playback to the next frame and then pauses the playback. (9) record – recording the playing back screen in local folder. (10) screen capture - To capture an image of the display screen and save in local folder. (11) audio –...
- Page 26 Access to remote DVR from IE USER’S MANUAL CONTENT .......................... 2 USER’S MANUAL ............................2 Preface ........................... 2 1. Introduction ..............2 2. System requirement and executing environment ..................2 2.1. Supported operating System: ................ 2 2.2. Hardware requirement (recommend): ..................
-
Page 27: User's Manual
Access to remote DVR from IE USER’S MANUAL Preface You can access to remote DVR with remote surveillance without a client software installed. Our DVR supports IE control. The main function of IE control is to view the remote live, playback and backup remote recordings, view and export remote server’s logs, etc. -
Page 28: Login To The Remote Dvr Server Through Ie Browser
(1) Double-click the IE browser icon to open the IE browser. (2) Select “tools > Internet Options” in the menu bar to pop up “internet options” window. (3) Click “security” tab, then click “custom level…” in “security level for this zone” to open “security settings”... -
Page 29: Live View And Control Of The Remote Server
Figure 4 5. Live view and control of the remote server Figure 5 5.1. remote live viewing (1) View - Remote view tab. (2) Camera list – camera list of the remote server. -
Page 30: Control Function
(3) Screen – live view screen. (4) Screen layout - Switch from 1, 4, 9, 16, 36, 64, etc channel views. Simply click on your selected layout to change the layout. (5) Live start/stop – start/stop live view of the remote camera. (6) Screen capture - To capture an image of the display screen, the image will be saved in the path of local folder. -
Page 31: Search, Playback And Backup Remote Recordings
configuration. 6. Search, playback and backup remote recordings Figure 6 (1) Playback tab – switch to remote search, playback and backup tab. (2) Camera list – camera list of the remote server. (3) Playback screen – display the remote server recordings. (4) Playback processing bar –... -
Page 32: Logs Viewing An Exporting From The Remote Server
7. Logs viewing an exporting from the remote server Figure 7 (1) log – switch to remote logs management tab. (2) logs list – list the results logs from the remote server. (3) logs type filter - filter the search results by logs type. (4) time filter - filter the search results by logs time. -
Page 33: Remote Server Configuration
(1) DVR state - switch to remote server status indicator tab. (2) Status indicator – display the status of the remote server. Remote DVR status indicator: Alert – indicates remote DVR alert active/inactive Mute – indicates the mute on/off Schedule – indicates remote DVR schedule active/inactive. VGA –...
