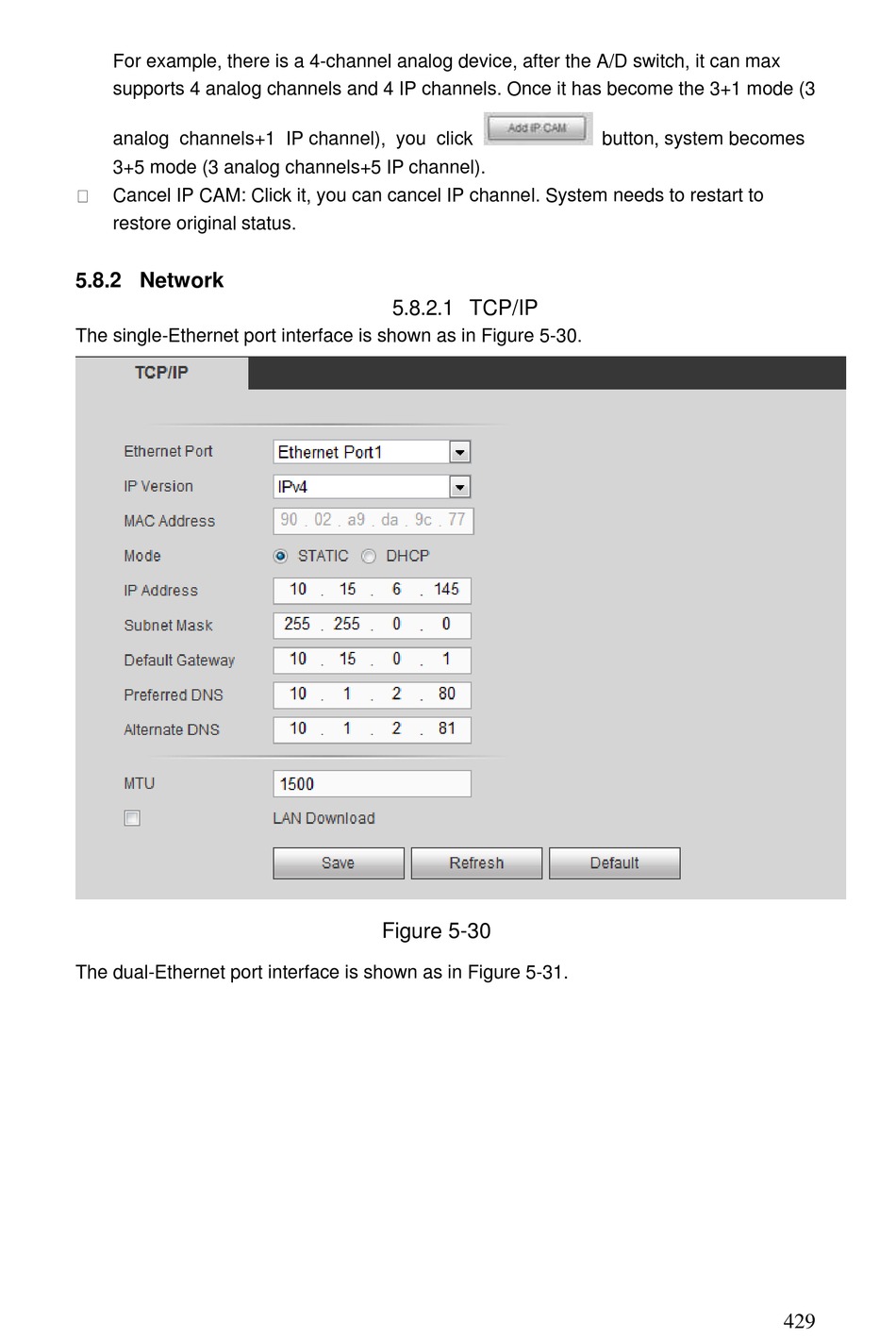

Network - Optiview HDVR4/8/16-Q2 User Manual

For example, there is a 4-channel analog device, after the A/D switch, it can max
supports 4 analog channels and 4 IP channels. Once it has become the 3+1 mode (3
analog channels+1 IP channel), you click
3+5 mode (3 analog channels+5 IP channel).
Cancel IP CAM: Click it, you can cancel IP channel. System needs to restart to
restore original status.

5.8.2 Network

The single-Ethernet port interface is shown as in Figure 5-30.
The dual-Ethernet port interface is shown as in Figure 5-31.
5.8.2.1 TCP/IP
Figure 5-30
button, system becomes
429
