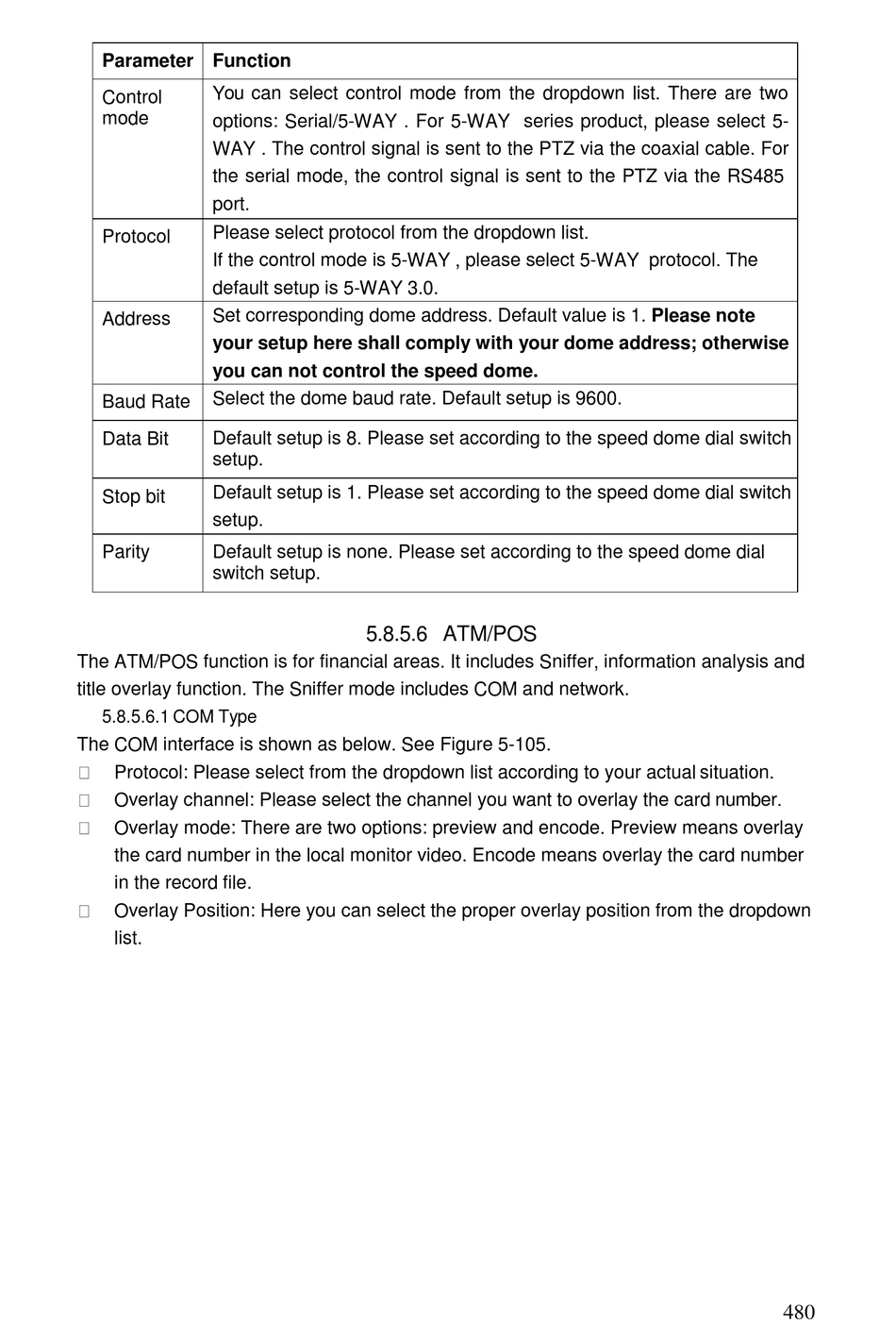

Parameter Function
You can select control mode from the dropdown list. There are two
Control
mode
options: Serial/5-WAY . For 5-WAY series product, please select 5-
WAY . The control signal is sent to the PTZ via the coaxial cable. For
the serial mode, the control signal is sent to the PTZ via the RS485
port.
Please select protocol from the dropdown list.
Protocol
If the control mode is 5-WAY , please select 5-WAY protocol. The
default setup is 5-WAY 3.0.
Set corresponding dome address. Default value is 1. Please note
Address
your setup here shall comply with your dome address; otherwise
you can not control the speed dome.
Select the dome baud rate. Default setup is 9600.
Baud Rate
Data Bit Default setup is 8. Please set according to the speed dome dial switch
setup.
Default setup is 1. Please set according to the speed dome dial switch
Stop bit
setup.
Default setup is none. Please set according to the speed dome dial
Parity
switch setup.
The ATM/POS function is for financial areas. It includes Sniffer, information analysis and
title overlay function. The Sniffer mode includes COM and network.
5.8.5.6.1 COM Type
The COM interface is shown as below. See Figure 5-105.
Protocol: Please select from the dropdown list according to your actual situation.
Overlay channel: Please select the channel you want to overlay the card number.
Overlay mode: There are two options: preview and encode. Preview means overlay
the card number in the local monitor video. Encode means overlay the card number
in the record file.
Overlay Position: Here you can select the proper overlay position from the dropdown
list.
5.8.5.6 ATM/POS
