Scan Setup

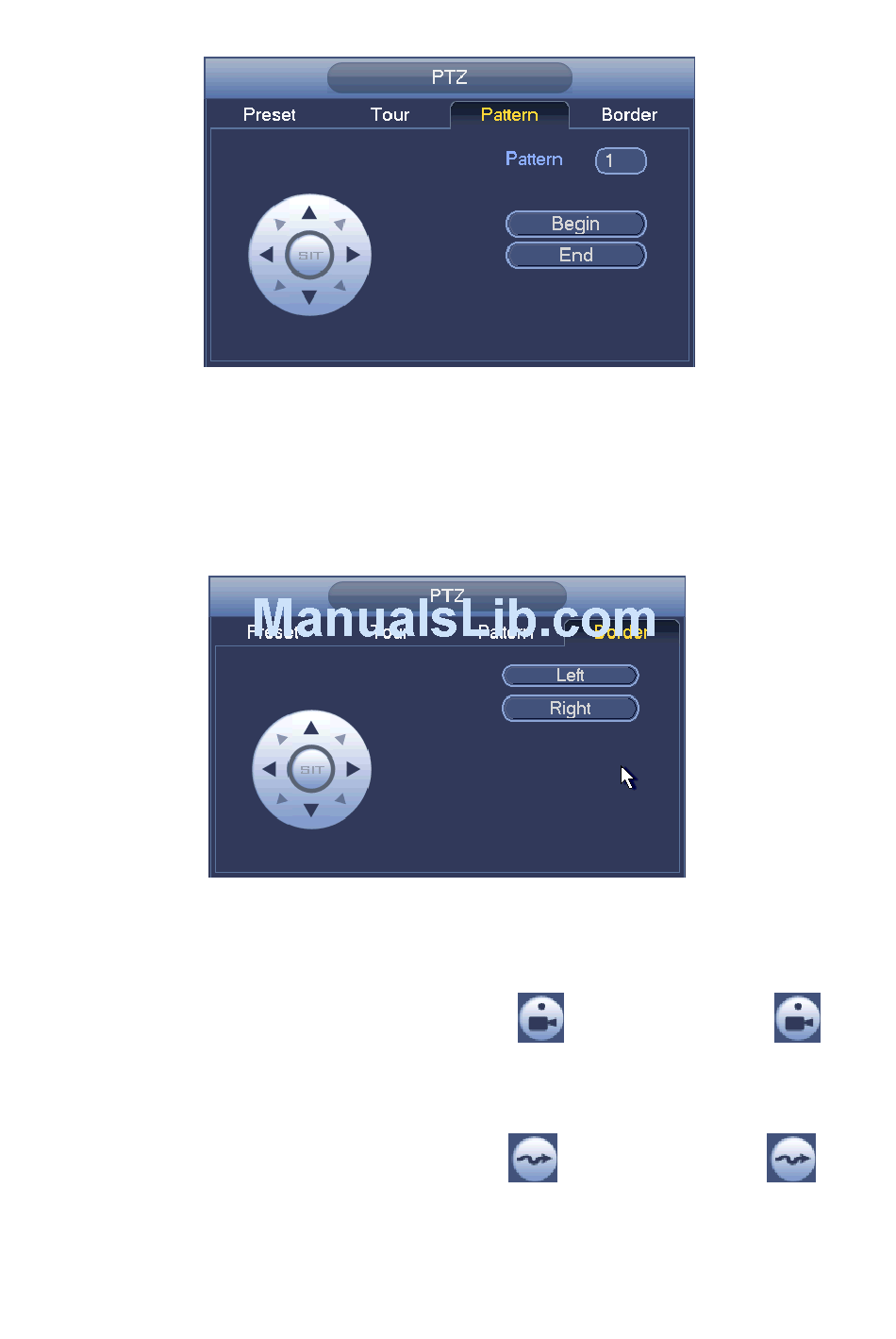

In Figure 4-23, click Scan button.
Use direction buttons to set camera left limit and then click Left button.
Use direction buttons to set camera right limit and then click Right button. Now the scan
setup process is complete.
4.5.3.2 Call PTZ Function
Call Preset
In Figure 4-22, input preset value and then click
again to stop call.
Call Pattern
In Figure 4-22, input pattern value and then click
again to stop call.
Call Tour
Figure 4-26
Figure 4-27
to call a preset. Click
to call a pattern. Click
72
