4.11.4.1.2.2 Trigger Snapshot
Please follow the steps listed below to enable the activation snapshot function. After
you enabled this function, system can snapshot when the
occurred.
In main menu, from Setting->Camera->Encode->Snapshot interface, here you can
input snapshot mode as trigger, size, quality and frequency. See Figure 4-157.
In main menu, from Setting->Event->Detect, please enable snapshot function for
specified channels (Figure 4-158). Or In main menu, from Setting->Event->Alarm
(Figure 4-159) please enable snapshot function for specified channels.

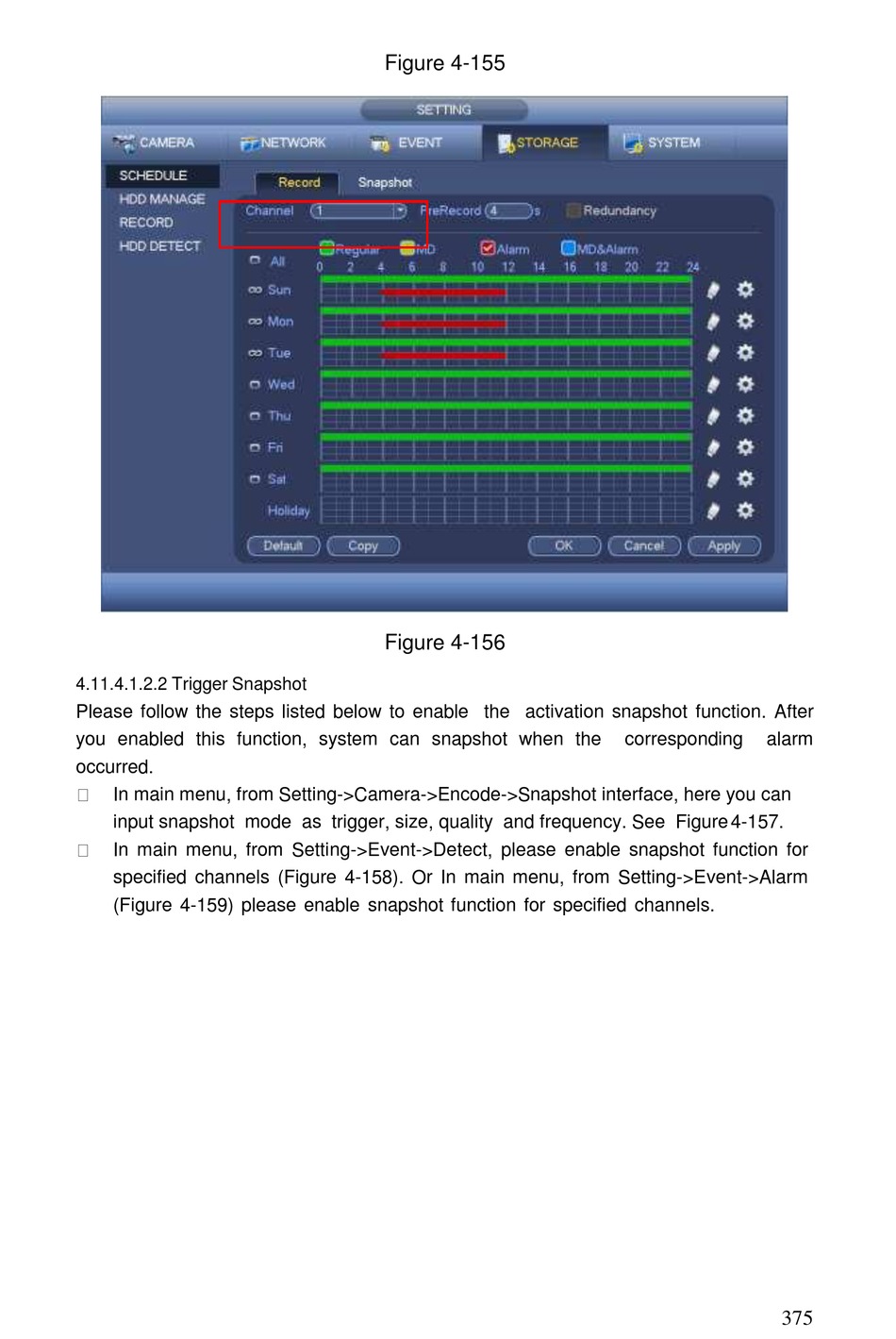

Figure 4-155
Figure 4-156
corresponding alarm
375
