4.11.1.3.5 Channel Type
It is to set channel type.
For analog channel (CVBS signal or 5-WAY HD signal), you can select coaxial
cable or UTP cable. Please check first and then save setup. There is no need to
reboot.
You can switch analog channel type to digital channel type if you want to connect to
network camera. The IP channel shall start from the last channel. System needs to
reboot to activate current setup.
Note
If there is no connected channel, the channel type here just displays previous connection
record. System supports self-adaptive after camera connection.
The interface is shown as in Figure 4-80 (5-Wayseries product) or Figure 4-81 (general
series product).

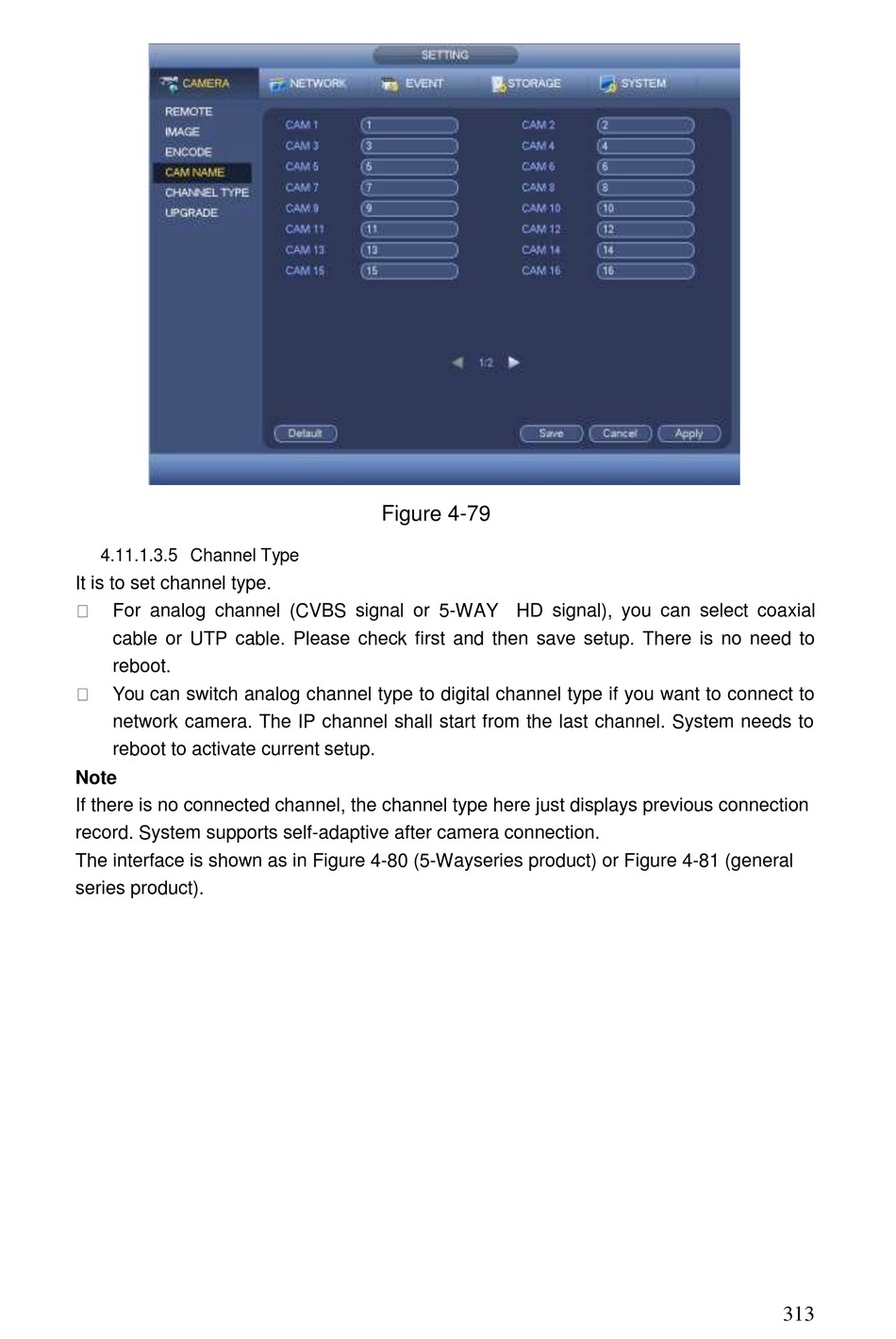

Figure 4-79
313
