Optiview HDVR4/8/16-Q2 User Manual page 186



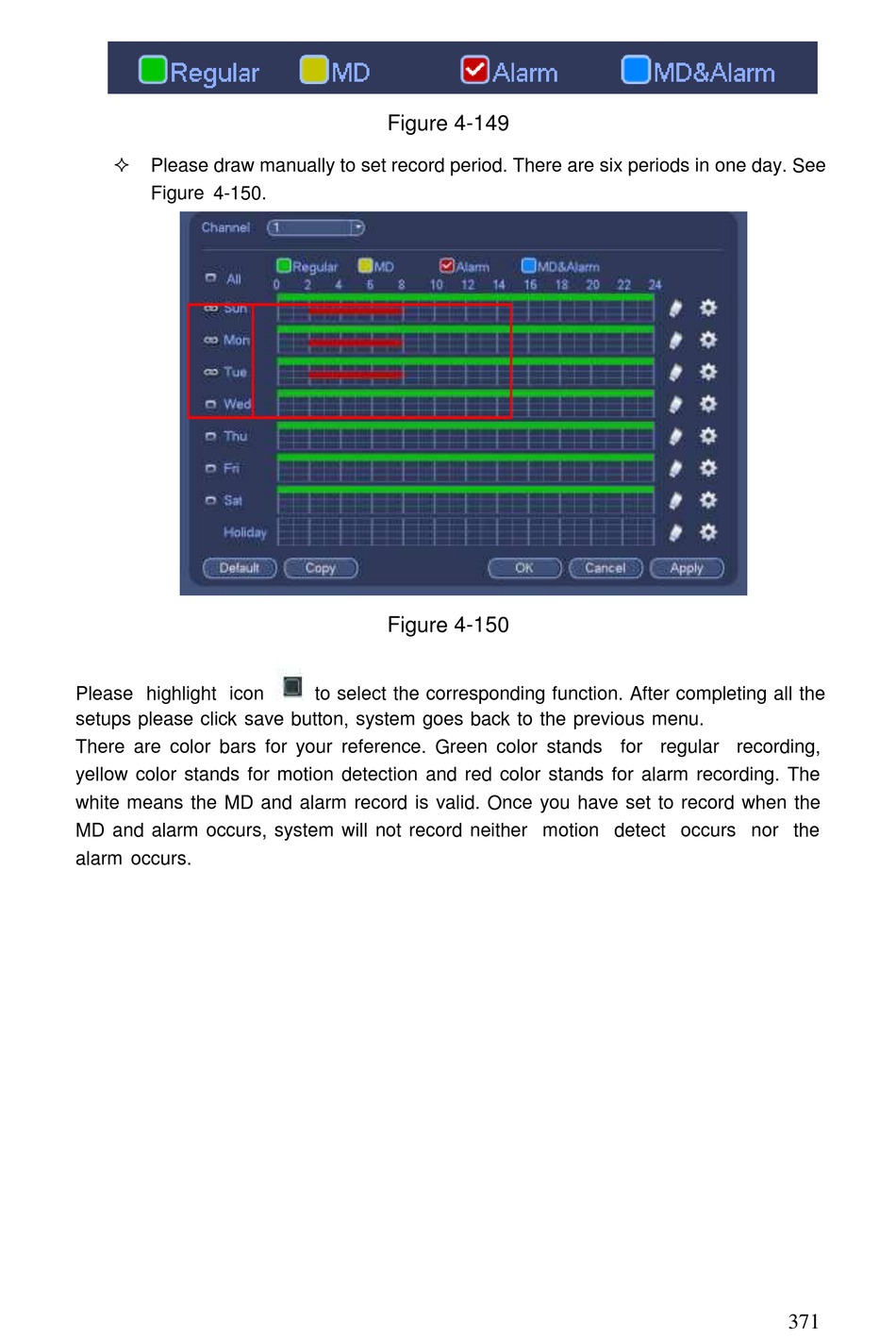

Please draw manually to set record period. There are six periods in one day. See
Figure 4-150.
Please highlight icon
setups please click save button, system goes back to the previous menu.
There are color bars for your reference. Green color stands for regular recording,
yellow color stands for motion detection and red color stands for alarm recording. The
white means the MD and alarm record is valid. Once you have set to record when the
MD and alarm occurs, system will not record neither motion detect occurs nor the
alarm occurs.
Figure 4-149
Figure 4-150
to select the corresponding function. After completing all the
371
