4.11.5.5 PTZ
The pan/tilt/zoom setup includes the following items. Please select channel first. See
Figure 4-180.
PTZ type: There are two options: local/remote. Please select remote if you are
connecting to the network PTZ.
Control mode: You can select control mode from the dropdown list. There are two
options: Serial/5-WAY . For 5-WAY series product, please select 5-WAY . The control
signal is sent to the PTZ via the coaxial cable. For the serial mode, the control signal
is sent to the PTZ via the RS485 port.
Protocol: If the control mode is 5-WAY , please select 5-WAY protocol. The
default setup is 5-WAY 3.0
Address: input corresponding PTZ address.
Baud rate: Select baud rate.
Data bit: Select data bit.
Stop bit: Select stop bit.
Parity: There are three choices: none/odd/even.
After completed all the setups please click save button, system goes back to the previous
menu.

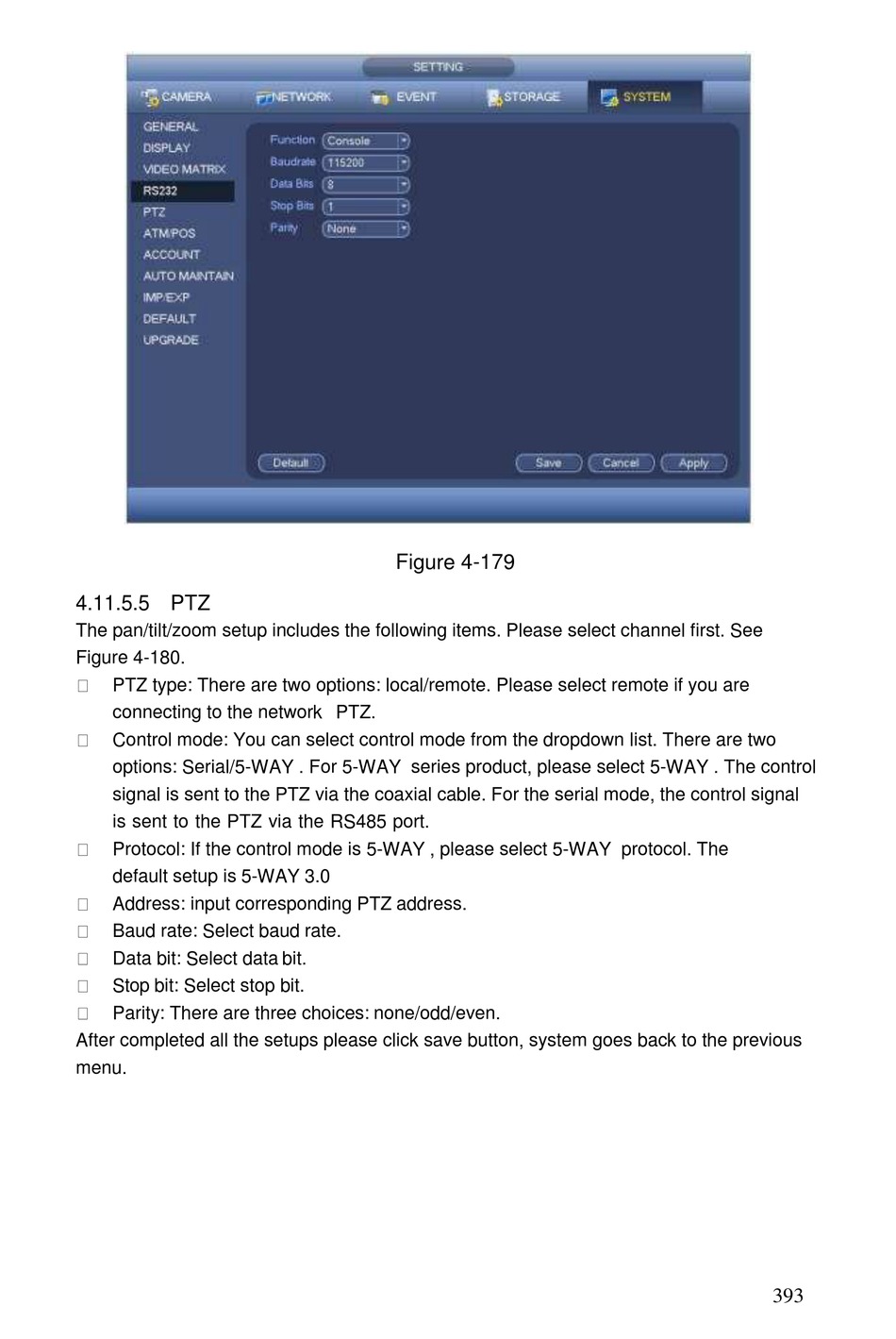

Figure 4-179
