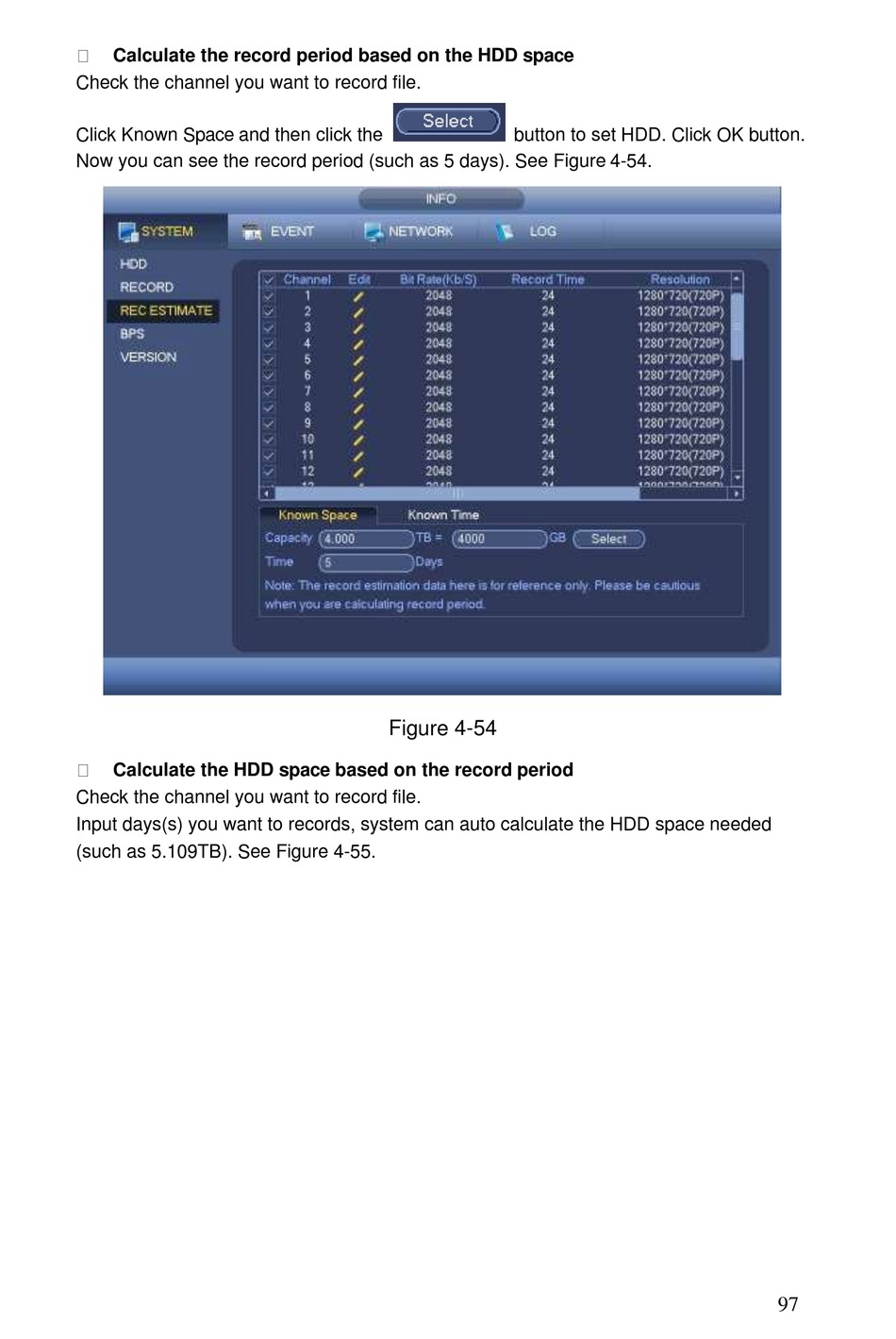

Optiview HDVR4/8/16-Q2 User Manual page 107

Calculate the record period based on the HDD space
Check the channel you want to record file.
Click Known Space and then click the
Now you can see the record period (such as 5 days). See Figure 4-54.
Calculate the HDD space based on the record period
Check the channel you want to record file.
Input days(s) you want to records, system can auto calculate the HDD space needed
(such as 5.109TB). See Figure 4-55.
button to set HDD. Click OK button.
Figure 4-54
97
