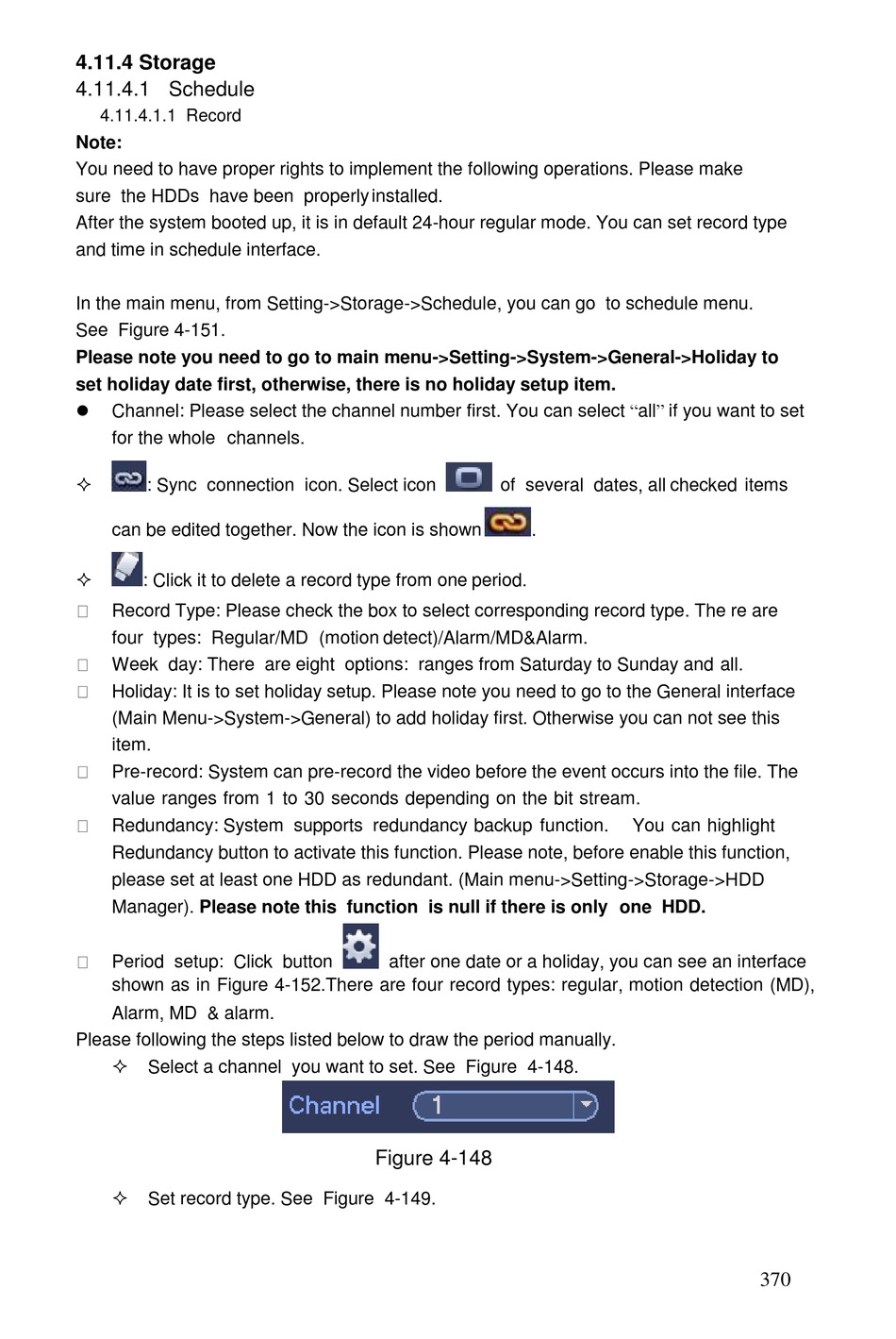

4.11.4 Storage

4.11.4.1 Schedule
4.11.4.1.1 Record
Note:
You need to have proper rights to implement the following operations. Please make
sure the HDDs have been properly installed.
After the system booted up, it is in default 24-hour regular mode. You can set record type
and time in schedule interface.
In the main menu, from Setting->Storage->Schedule, you can go to schedule menu.
See Figure 4-151.
Please note you need to go to main menu->Setting->System->General->Holiday to
set holiday date first, otherwise, there is no holiday setup item.
 Channel: Please select the channel number first. You can select "all" if you want to set
for the whole channels.

: Sync connection icon. Select icon
can be edited together. Now the icon is shown

: Click it to delete a record type from one period.
Record Type: Please check the box to select corresponding record type. The re are
four types: Regular/MD (motion detect)/Alarm/MD&Alarm.
Week day: There are eight options: ranges from Saturday to Sunday and all.
Holiday: It is to set holiday setup. Please note you need to go to the General interface
(Main Menu->System->General) to add holiday first. Otherwise you can not see this
item.
Pre-record: System can pre-record the video before the event occurs into the file. The
value ranges from 1 to 30 seconds depending on the bit stream.
Redundancy: System supports redundancy backup function.
Redundancy button to activate this function. Please note, before enable this function,
please set at least one HDD as redundant. (Main menu->Setting->Storage->HDD
Manager). Please note this function is null if there is only one HDD.
Period setup: Click button
shown as in Figure 4-152.There are four record types: regular, motion detection (MD),
Alarm, MD & alarm.
Please following the steps listed below to draw the period manually.

Select a channel you want to set. See Figure 4-148.

Set record type. See Figure 4-149.
of several dates, all checked items
.
after one date or a holiday, you can see an interface
Figure 4-148
You can highlight
370
