2.2 Rear Panel
2.2.1 General 4MP 1U Series

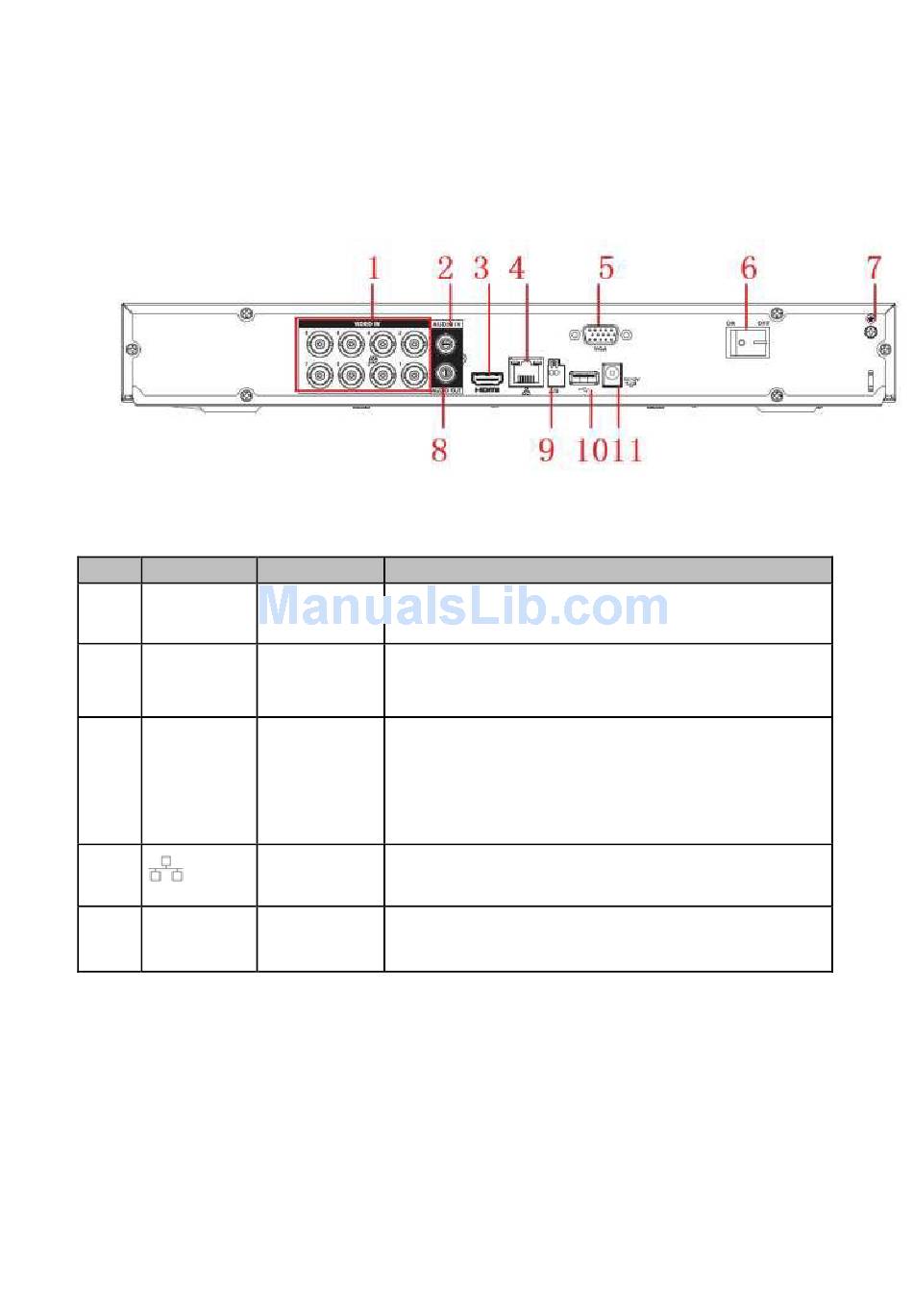

The rear panel is shown as in Figure 2-83.
The following figure is based on the 8-channel series product.
Please refer to the following sheet for detailed information.
SN Icon
1 VIDEO IN
2 AUDIO IN
3 HDMI
4
5 VGA
Figure 2-83
Name Function
Video input Connect to analog camera, video input signal.
port
Audio input Connect to microphone and etc to input signal.
port
High definition High definition audio and video signal output port. It
transmits the same video signal as that of the VGA/TV or
media
different video signal from that of the VGA/TV（support
interface
customized setup）.
Support mouse operation.
Network port 1000M Ethernet port
VGA VGA video output port
