4
Turn the device upside down and
then turn the screws in firmly.
○
7
Put the cover in accordance with
the clip and then place the upper cover
back.

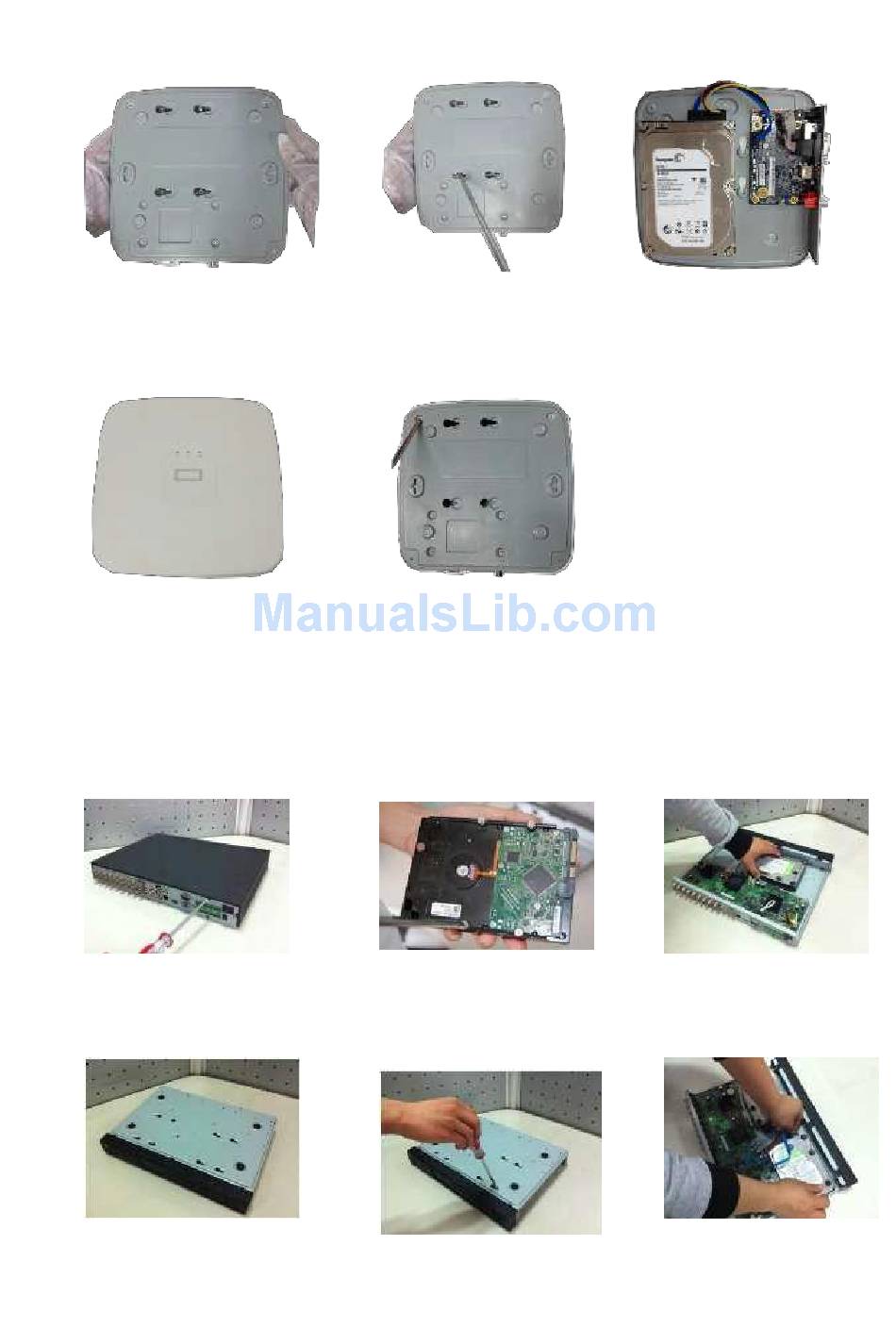

3.3.3 Compact 1U and Mini 1U Series

The series DVR has one SATA HDD.
①Loosen the screws of the upper cover
and side panel.
○
5
Fix the HDD firmly.
○
8
Secure the screws in the rear panel and the side panel.
②
Fix four screws in the HDD (Turn
just three rounds).
○
6
Connect the HDD cable and
power cable.
③
Place the HDD in accordance
with the four holes in the bottom.
