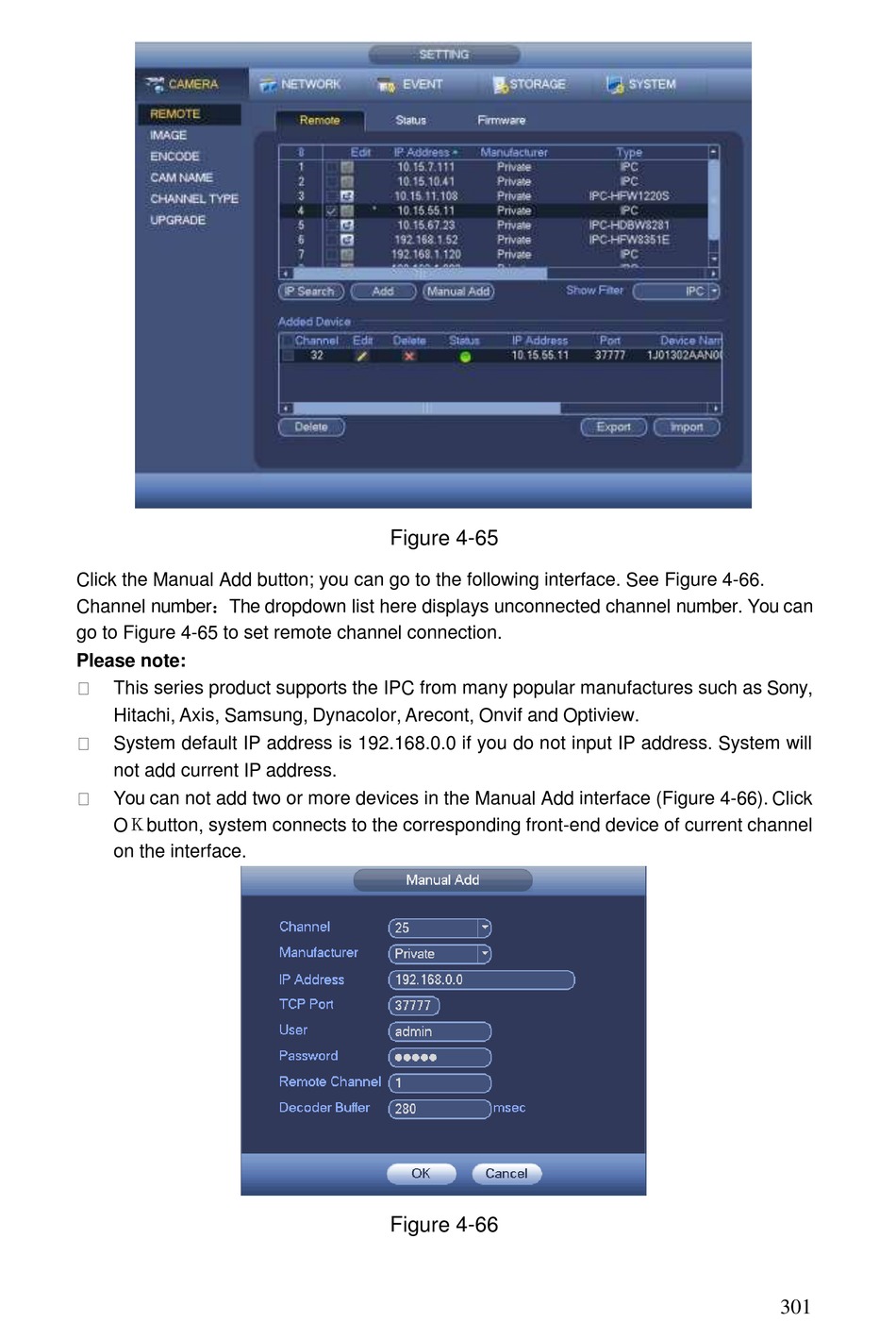

Optiview HDVR4/8/16-Q2 User Manual page 116

Click the Manual Add button; you can go to the following interface. See Figure 4-66.
Channel number：The dropdown list here displays unconnected channel number. You can
go to Figure 4-65 to set remote channel connection.
Please note:
This series product supports the IPC from many popular manufactures such as Sony,
Hitachi, Axis, Samsung, Dynacolor, Arecont, Onvif and Optiview.
System default IP address is 192.168.0.0 if you do not input IP address. System will
not add current IP address.
You can not add two or more devices in the Manual Add interface (Figure 4-66). Click
OＫbutton, system connects to the corresponding front-end device of current channel
on the interface.
Figure 4-65
Figure 4-66
301
