GE MiCOM P40 Agile Technical Manual page 604

Issue: Revision:
DRAWING OUTLINE UPDATED . CID BLIN-8BHLDT
G
Date: 25/11/2010 Name: W.LINTERN
CAD DATA 1:1 DIMENSIONS: mm
DO NOT SCALE
Date: Chkd:
Title:

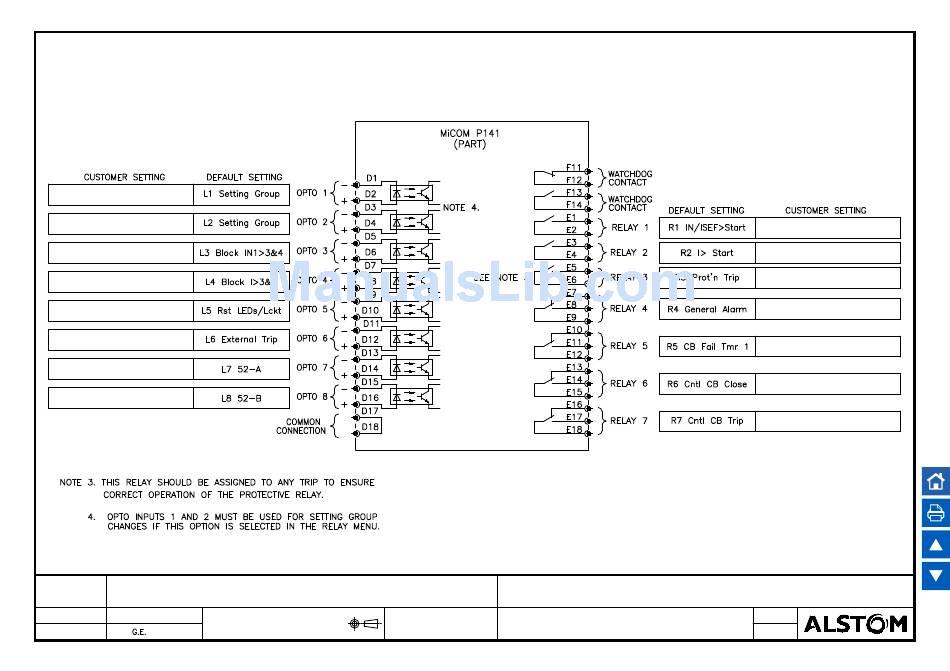

EXTERNAL CONNECTION DIAGRAM: FEEDER PROT RELAY
(40TE) DIRECTIONAL PHASE O/C & E/F (8 I/P & 7 0/P)
Drg
ALSTOM GRID UK LTD
No: 10P14101
Substation Automation Solutions
(STAFFORD)
4
Sht:
Next
5
Sht:
