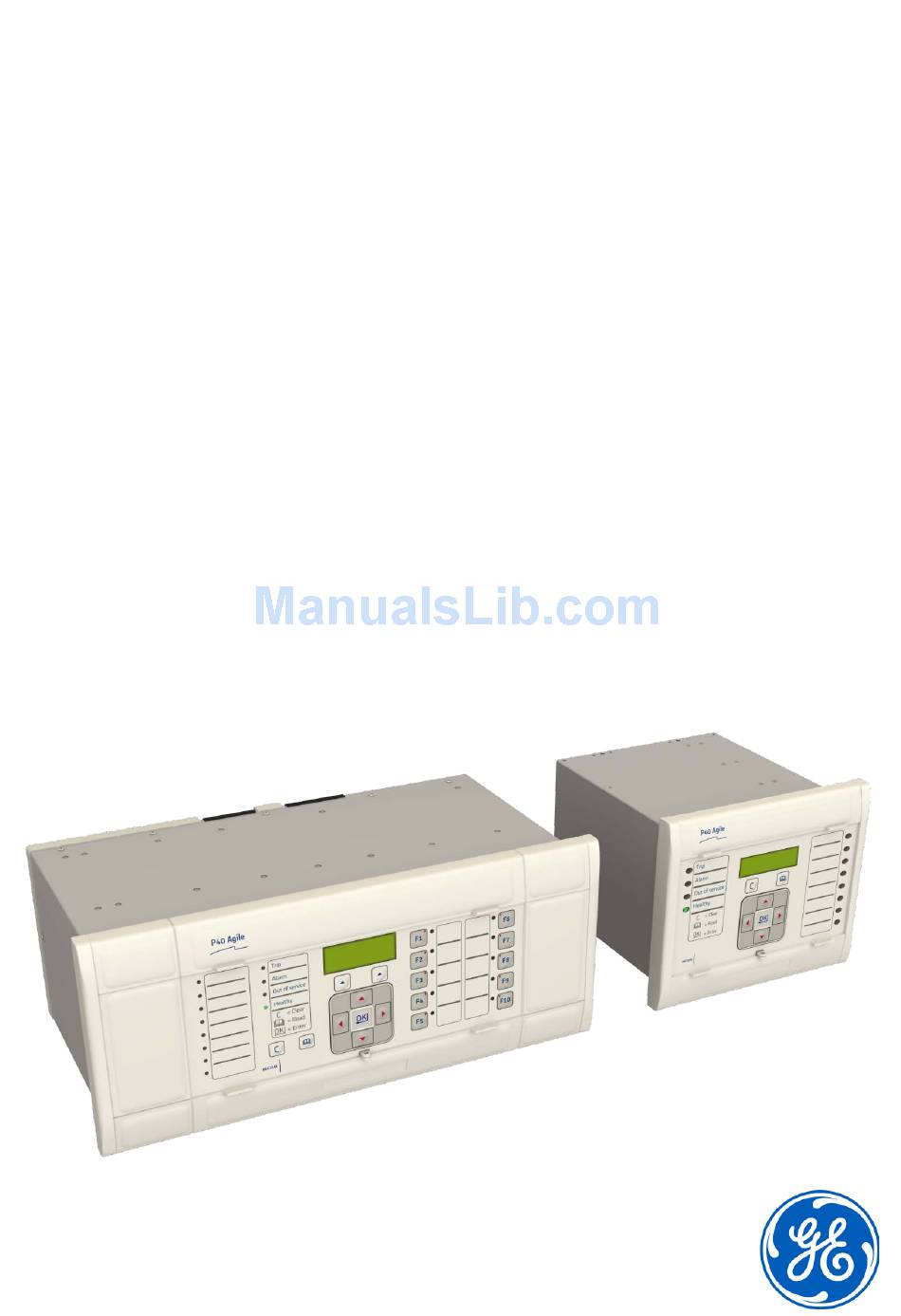

Page 1 GE Energy Connections Grid Solutions MiCOM P40 Agile P747 Technical Manual Busbar Protection IED Hardware version: A Software version: 2 Publication reference: P747-TM-EN-1.1...
Page 3: Table Of Contents
Contents Chapter 1 Introduction Chapter Overview Foreword Target Audience Typographical Conventions Nomenclature Product Scope Features and Functions Protection Functions Control Functions Measurement Functions Communication Functions Compliance Functional Overview Ordering Options Chapter 2 Safety Information Chapter Overview Health and Safety Symbols Installation, Commissioning and Servicing Lifting Hazards Electrical Hazards...
Page 4 Contents MiCOM P747 Main Processor Board Combined Coprocessor and Isolated Input Board Power Supply Board 6.5.1 Watchdog 6.5.2 Rear Serial Port Input Module - 2 Transformer Boards 6.6.1 Sigma-Delta Input Module Circuit Description 6.6.2 Transformer Board 6.6.3 Main Input Board Standard Output Relay Board IRIG-B Board Fibre Optic Board...
Page 5 MiCOM P747 Contents Unit Protection Current Differential Protection Principles Through Fault Stability Bias Current Compensation Busbar Multiple Tripping Criteria Tripping Criteria DDBs Topology Replica Function Topology Replica Function DDBs Zone Current Differential Elements Check Zone 3.5.1 Check Zone Supervision 3.5.2 Auxiliary Contacts Discrepancy Continuous Supervision of Current Circuits (Circuitry Fail) Current Phase Comparison Check...
Page 6 Contents MiCOM P747 Measurement Table 3 I/O Functions Function Keys 5.1.1 Function Key DDB Signals 5.1.2 Function Key Settings LEDs 5.2.1 Fixed Function LEDs 5.2.2 Programable LEDs 5.2.3 Function Key LEDs 5.2.4 Trip LED Logic 5.2.5 LED DDB Signals 5.2.6 LED Conditioners Opto-inputs 5.3.1...
Page 7 MiCOM P747 Contents 6.10 Configuration IEC 60870-5-103 Physical Connection and Link Layer Initialisation Time Synchronisation Spontaneous Events General Interrogation (GI) Cyclic Measurements Commands Test Mode Disturbance Records 7.10 Command/Monitor Blocking 7.11 Configuration DNP 3.0 Physical Connection and Link Layer Object 1 Binary Inputs Object 10 Binary Outputs Object 20 Binary Counters Object 30 Analogue Input...
Page 8 Contents MiCOM P747 11.3 IEC 61850 Protocol 11.4 Read-Only Settings 11.5 Read-Only DDB Signals Time Synchronisation Demodulated IRIG-B 13.1 IRIG-B Implementation SNTP Time Synchronsiation using the Communication Protocols Communication Settings Chapter 8 Redundant Ethernet Chapter Overview Board Versions Board Connections Redundancy Protocols Parallel Redundancy Protocol (PRP) 4.1.1...
Page 9 MiCOM P747 Contents 8.8.3 Port States End of Session Switch Manager Installation Setup Network Setup Bandwidth Used Reset Counters Check for Connected Equipment Mirroring Function Ports On/Off VLAN 9.10 End of Session Chapter 9 Cyber-Security Overview The Need for Cyber-Security Standards NERC Compliance 3.1.1...
Page 10 Contents MiCOM P747 1.1.7 Extract Settings From a Device 1.1.8 Extract a PSL File From a Device 1.1.9 Extract a DNP3 File From a Device 1.1.10 Extract an Events File From a Device 1.1.11 Extract a Disturbance Record From a Device PSL Editor IEC 61850 Configurator DNP3 Configurator...
Page 11 MiCOM P747 Contents Viewing and Printing PSL Diagrams Trip Output Mappings Opto-Input Mappings Output Relay Mappings LED Mappings Control Input Mappings Function Key Mappings Circuit Breaker Mapping Fault Record Trigger Mapping 4.10 Check Synchronisation and Voltage Monitor Mappings 4.11 Settings Chapter 13 Installation Chapter Overview Handling the Goods...
Page 12 Contents MiCOM P747 3.8.2 Monitor Bit 1 to 8 Cells 3.8.3 Using a Monitor Port Test Box Commissioning Equipment Minimum Equipment Required Optional Equipment Required Product Checks Product Checks with the IED De-energised 5.1.1 Visual Inspection 5.1.2 Current Transformer Shorting Contacts 5.1.3 Insulation 5.1.4...
Page 13 MiCOM P747 Contents 2.5.2 Replacement of communications boards 2.5.3 Replacement of the input module 2.5.4 Replacement of the power supply board 2.5.5 Replacement of the I/O boards Recalibration Changing the battery 2.7.1 Post Modification Tests 2.7.2 Battery Disposal Cleaning Troubleshooting Self-Diagnostic Software Power-up Errors Error Message or Code on Power-up...
Page 14 Contents MiCOM P747 EMC Compliance: 2004/108/EC Product Safety: 2006/95/EC R&TTE Compliance UL/CUL Compliance Mechanical Specifications Physical Parameters Enclosure Protection Mechanical Robustness Transit Packaging Performance Ratings AC Measuring Inputs Current Transformer Inputs Voltage Transformer Inputs Auxiliary Supply Voltage Nominal Burden Power Supply Interruption Standard Output Contacts Watchdog Contacts Isolated Digital Inputs...
Page 15 MiCOM P747 Contents Test Record Engineer Details Front Plate Information Test Equipment Tests with Product De-energised Tests with Product Energised Communication Tests Current Input Tests Voltage Input Tests Overcurrent Checks 1.10 On-load Checks 1.11 Final Checks Appendix C Wiring Diagrams Appendix Overview P747: Busbar Protection P747: I/O Option A...
Page 16 Contents MiCOM P747 P747-TM-EN-1 P747-TM-EN-1.1...
Page 17 Table of Figures Figure 1: Functional Overview Figure 2: Hardware architecture Figure 3: Exploded view of IED Figure 4: Front panel (80TE) Figure 5: Rear view of populated 80TE case Figure 6: Terminal block types Figure 7: Rear connection to terminal block Figure 8: Main processor board Figure 9:...
Page 18 Table of Figures MiCOM P747 Figure 39: Fault recorder stop conditions Figure 40: Trip LED logic Figure 41: TCS Scheme 1 Figure 42: PSL for TCS Scheme 1 Figure 43: TCS Scheme 2 Figure 44: PSL for TCS Scheme 2 Figure 45: TCS Scheme 3 Figure 46:...
Page 19 MiCOM P747 Table of Figures Figure 77: CB Fail Non Current Protection Logic Figure 78: Composite Earth Fault Start Logic Figure 79: Any Trip Logic Figure 80: SEF Any Start Logic Figure 81: Trip Output Mappings Figure 82: Opto-Input Mappings Figure 83: Output Relay Mappings Figure 84:...
Page 20 Table of Figures MiCOM P747 xviii P747-TM-EN-1 P747-TM-EN-1.1...
Page 21: Chapter 1 Introduction
INTRODUCTION CHAPTER 1...
Page 22: Trip Circuit Supervision Scheme
Chapter 1 - Introduction MiCOM P747 P747-TM-EN-1 P747-TM-EN-1.1...
Page 23: Chapter Overview
MiCOM P747 Chapter 1 - Introduction CHAPTER OVERVIEW This chapter contains the following sections: Chapter Overview Foreword Features and Functions Compliance Functional Overview Ordering Options P747-TM-EN-1 P747-TM-EN-1.1...
Page 24: Foreword
Chapter 1 - Introduction MiCOM P747 FOREWORD This technical manual provides a functional and technical description of Alstom Grid's MiCOM P747, as well as a comprehensive set of instructions for using the device. We have attempted to make this manual as accurate, comprehensive and user-friendly as possible. However we cannot guarantee that it is free from errors.
Page 25: Product Scope
MiCOM P747 Chapter 1 - Introduction We would like to highlight the following changes of nomenclature however: ● The word 'relay' is no longer used for the device itself. Instead, the device is referred to as an 'IED' (Intelligent Electronic Device), the 'device', the 'product', or the 'unit'. The word 'relay' is used purely to describe the electromechanical components within the device, i.e.
Page 26: Features And Functions
Chapter 1 - Introduction MiCOM P747 FEATURES AND FUNCTIONS PROTECTION FUNCTIONS The P747 provides the following protection functions: Protection Function IEC 61850 ANSI Phase segregated biased current differential high speed busbar protection PhsPDIF 87BB/P Check Zone segregated biased phase current differential high speed busbar protection CzPPDIF 87CZ/P Definite Time overcurrent protection (2 stages)
Page 27: Communication Functions
MiCOM P747 Chapter 1 - Introduction Measurement Function IEC 61850 ANSI Maintenance Records Event Records / Event logging Event records Time Stamping of Opto-inputs COMMUNICATION FUNCTIONS The device offers the following communication functions: Feature ANSI NERC compliant cyber-security Front RS232 serial communication port for configuration Rear serial RS485 communication port for SCADA control 2 Additional rear serial communication ports for SCADA control and teleprotection (fibre and copper) (optional)
Page 28: Compliance
Chapter 1 - Introduction MiCOM P747 COMPLIANCE The device has undergone a range of extensive testing and certification processes to ensure and prove compatibility with all target markets. Below is a list of standards with which the device is compliant. A detailed description of these criteria can be found in the Technical Specifications chapter.
Page 29: Functional Overview
MiCOM P747 Chapter 1 - Introduction FUNCTIONAL OVERVIEW Remote Local Fault Disturbance Comms. Port Communication Records Records Measurements 50/51 50DZ 87BB/P 87CZ/P 50BF Binary LEDs Input / Output E00029 Figure 1: Functional Overview P747-TM-EN-1 P747-TM-EN-1.1...
Page 30: Ordering Options
Chapter 1 - Introduction MiCOM P747 ORDERING OPTIONS Variants Order Number P747 P747 Numerical Busbar Differential Protection Relay with 4-zone enhancements Vx Aux Rating: New PSU 24-54 Vdc New PSU 48-125 Vdc (40-100 Vac) New PSU 110-250 Vdc (100-240 Vac) In/Vn Rating: CT1 - CT18 In = 1A/5A, Vn = (100/120V) (18CT/3VT) Hardware Options:...
Page 31: Chapter 2 Safety Information
SAFETY INFORMATION CHAPTER 2...
Page 32 Chapter 2 - Safety Information MiCOM P747 P747-TM-EN-1 P747-TM-EN-1.1...
Page 33: Chapter Overview
MiCOM P747 Chapter 2 - Safety Information CHAPTER OVERVIEW This chapter provides information about the safe handling of the equipment. The equipment must be properly installed and handled in order to maintain it in a safe condition and to keep personnel safe at all times. You must be familiar with information contained in this chapter before unpacking, installing, commissioning, or servicing the equipment.
Page 34 Chapter 2 - Safety Information MiCOM P747 HEALTH AND SAFETY Personnel associated with the equipment must be familiar with the contents of this Safety Information. When electrical equipment is in operation, dangerous voltages are present in certain parts of the equipment. Improper use of the equipment and failure to observe warning notices will endanger personnel.
Page 35 MiCOM P747 Chapter 2 - Safety Information SYMBOLS Throughout this manual you will come across the following symbols. You will also see these symbols on parts of the equipment. Caution: Refer to equipment documentation. Failure to do so could result in damage to the equipment Warning: Risk of electric shock...
Page 36: Installation, Commissioning And Servicing
Chapter 2 - Safety Information MiCOM P747 INSTALLATION, COMMISSIONING AND SERVICING LIFTING HAZARDS Plan carefully, identify any possible hazards and determine whether the load needs to be moved at all. Look at other ways of moving the load to avoid manual handling. Use the correct lifting techniques and Personal Protective Equipment to reduce the risk of injury.
Page 37: Ul/Csa/Cul Requirements
MiCOM P747 Chapter 2 - Safety Information Caution: NEVER look into optical fibres. Always use optical power meters to determine operation or signal level. Caution: Insulation testing may leave capacitors charged up to a hazardous voltage. At the end of each part of the test, discharge the capacitors by reducing the voltage to zero, before disconnecting the test leads.
Page 38: Equipment Connections
Chapter 2 - Safety Information MiCOM P747 Caution: Auxiliary supply wiring and digital input circuits should be protected by a high rupture capacity NIT or TIA fuse with maximum rating of 16 A. for safety reasons, current transformer circuits must never be fused. Other circuits should be appropriately fused to protect the wire used.
Page 39: Pre-Energization Checklist
MiCOM P747 Chapter 2 - Safety Information Caution: Use a locknut or similar mechanism to ensure the integrity of stud-connected PCTs. Caution: The recommended minimum PCT wire size is 2.5 mm² for countries whose mains supply is 230 V (e.g. Europe) and 3.3 mm² for countries whose mains supply is 110 V (e.g.
Page 40: Peripheral Circuitry
Chapter 2 - Safety Information MiCOM P747 PERIPHERAL CIRCUITRY Warning: Do not open the secondary circuit of a live CT since the high voltage produced may be lethal to personnel and could damage insulation. Short the secondary of the line CT before opening any connections to it. Note: For most Alstom equipment with ring-terminal connections, the threaded terminal block for current transformer termination is automatically shorted when the module is removed.
Page 41: Decommissioning And Disposal
MiCOM P747 Chapter 2 - Safety Information DECOMMISSIONING AND DISPOSAL Caution: Before decommissioning, completely isolate the equipment power supplies (both poles of any dc supply). The auxiliary supply input may have capacitors in parallel, which may still be charged. To avoid electric shock, discharge the capacitors using the external terminals before to decommissioning.
Page 42 Chapter 2 - Safety Information MiCOM P747 P747-TM-EN-1 P747-TM-EN-1.1...
Page 43: Chapter 3 Hardware Design
HARDWARE DESIGN CHAPTER 3...
Page 44 Chapter 3 - Hardware Design MiCOM P747 P747-TM-EN-1 P747-TM-EN-1.1...
Page 45: Chapter Overview
MiCOM P747 Chapter 3 - Hardware Design CHAPTER OVERVIEW This chapter provides information about the product's hardware design. This chapter contains the following sections: Chapter Overview Hardware Architecture Mechanical Implementation Front Panel Rear Panel Boards and Modules P747-TM-EN-1 P747-TM-EN-1.1...
Page 46: Hardware Architecture
Chapter 3 - Hardware Design MiCOM P747 HARDWARE ARCHITECTURE The main components comprising devices based on the Px4x platform are as follows: ● The housing, consisting of a front panel and connections at the rear ● The Main processor module consisting of the main CPU (Central Processing Unit), memory and an interface to the front panel HMI (Human Machine Interface) ●...
Page 47: Mechanical Implementation
MiCOM P747 Chapter 3 - Hardware Design MECHANICAL IMPLEMENTATION All products based on the Px4x platform have common hardware architecture. The hardware is modular and consists of the following main parts: ● Case and terminal blocks ● Boards and modules ●...
Page 48: List Of Boards
Chapter 3 - Hardware Design MiCOM P747 Case width (TE) Case width (mm) Case width (inches) 40TE 203.2 60TE 304.8 80TE 406.4 Note: Due to the number of required input modules, the P747 only comes in an 80TE case LIST OF BOARDS The product's hardware consists of several modules drawn from a standard range.
Page 49: Front Panel
MiCOM P747 Chapter 3 - Hardware Design FRONT PANEL FRONT PANEL The following diagram shows the front panel of a typical 80TE unit. The hinged covers at the top and bottom of the front panel are shown open. An optional transparent front cover physically protects the front panel. Figure 4: Front panel (80TE) The front panel consists of: ●...
Page 50: Top Compartment With Hinged Cover
Chapter 3 - Hardware Design MiCOM P747 4.1.1 TOP COMPARTMENT WITH HINGED COVER The top compartment contains labels for the: ● Serial number ● Current and voltage ratings. The bottom compartment contains: ● A compartment for a 1/2 AA size backup battery (used for the real time clock and event, fault, and disturbance records).
Page 51: Front Parallel Port (Sk2)
MiCOM P747 Chapter 3 - Hardware Design protocol only. Courier is a proprietary communication protocol to allow communication with a range of protection equipment, and between the device and the Windows-based support software package. You can connect the unit to a PC with an EIA(RS)232 serial cable up to 15 m in length. The inactivity timer for the front port is set to 15 minutes.
Page 52: Function Keys
Chapter 3 - Hardware Design MiCOM P747 4.1.7 FUNCTION KEYS The programmable function keys are available for custom use for devices using 30TE cases or larger. Factory default settings associate specific functions to these keys, but by using programmable scheme logic, you can change the default functions of these keys to fit specific needs.
Page 53: Rear Panel
MiCOM P747 Chapter 3 - Hardware Design REAR PANEL The MiCOM Px40 series uses a modular construction. Most of the internal workings are on boards and modules which fit into slots. Some of the boards plug into terminal blocks, which are bolted onto the rear of the unit.
Page 54: Figure 6: Terminal Block Types
Chapter 3 - Hardware Design MiCOM P747 Figure 6: Terminal block types Note: Not all products use all types of terminal blocks. The product described in this manual may use one or more of the above types. P747-TM-EN-1 P747-TM-EN-1.1...
Page 55: Boards And Modules
MiCOM P747 Chapter 3 - Hardware Design BOARDS AND MODULES Each product comprises a selection of PCBs (Printed Circuit Boards) and sub-assemblies, depending on the chosen configuration. PCBS A PCB typically consists of the components, a front connector for connecting into the main system parallel bus via a ribbon cable, and an interface to the rear.
Page 56: Main Processor Board
Chapter 3 - Hardware Design MiCOM P747 The products in the Px40 series typically contain two sub-assemblies: ● The power supply assembly comprising: ▪ A power supply board ▪ An output relay board ● The input module comprising: ▪ One or more transformer boards, which contains the voltage and current transformers (partially or fully populated) ▪...
Page 57: Combined Coprocessor And Isolated Input Board
MiCOM P747 Chapter 3 - Hardware Design Main Processor Board Analogue to Digital Resolution 21 bit COMBINED COPROCESSOR AND ISOLATED INPUT BOARD Figure 9: Combined coprocessor and isolated digital input board This board has a coprocessor section and an isolated digital input section. The coprocessor section is based around a floating point, 32-bit Digital Signal Processor (DSP) with 1 MB SRAM.
Page 58: Power Supply Board
Chapter 3 - Hardware Design MiCOM P747 Terminal Number Isolated digital input Terminal 14 Isolated digital input 7 +ve Terminal 15 Isolated digital input 8 –ve Terminal 16 Isolated digital input 8 +ve Terminal 17 Common Terminal 18 Common POWER SUPPLY BOARD Figure 10: Power supply board The power supply board provides power to the unit.
Page 59: Figure 11: Power Supply Assembly
MiCOM P747 Chapter 3 - Hardware Design Figure 11: Power Supply Assembly The power supply outputs are used to provide isolated power supply rails to the various modules within the unit. Three voltage levels are used by the unit’s modules: ●...
Page 60: Watchdog
Chapter 3 - Hardware Design MiCOM P747 Figure 12: Power Supply Terminals 6.5.1 WATCHDOG For space reasons, the Watchdog facility is also hosted on the power supply board. This checks the operation of the IED's hardware and software when in service. The Watchdog facility provides two output relay contacts, one normally open and one normally closed.
Page 61: Rear Serial Port
MiCOM P747 Chapter 3 - Hardware Design Figure 13: Watchdog contact terminals 6.5.2 REAR SERIAL PORT For space reasons, the rear serial port (RP1) is also housed on the power supply board. This is a three- terminal serial communications port, intended for use with a permanently wired connection to a remote control centre.
Page 62: Input Module - 2 Transformer Boards
Chapter 3 - Hardware Design MiCOM P747 Figure 14: Rear serial port terminals An additional serial port with D-type presentation is available as an optional board, if required. The power supply board also provides a rear serial port. The rear serial port (RP1) is an EIA(RS)485 interface, which provides SCADA communication.
Page 63: Sigma-Delta Input Module Circuit Description
MiCOM P747 Chapter 3 - Hardware Design The input module consists of the main input board coupled together with two transformer boards. The transformer boards contain the voltage and current transformers, which isolate and scale the analogue input signals delivered by the system transformers. The input board contains the A/D conversion and digital processing circuitry, as well as eight digital isolated inputs (opto-inputs).
Page 64 Chapter 3 - Hardware Design MiCOM P747 Opto-isolated inputs The other function of the input board is to read in the digital inputs. As with the analogue inputs, the digital inputs must be electrically isolated from the power system. This is achieved by means of the 8 on-board optical isolators for connection of up to 8 digital signals.
Page 65: Transformer Board
MiCOM P747 Chapter 3 - Hardware Design 6.6.2 TRANSFORMER BOARD Figure 17: Instrument Transformer board The transformer board hosts the current and voltage transformers, which are used to step down the currents and voltages originating from the power systems' current and voltage transformers to levels, which can be used by the unit’s electronic circuitry.
Page 66: Main Input Board
Chapter 3 - Hardware Design MiCOM P747 Terminal Number Analogue Input Signal Terminal 16 Terminal 17 Terminal 18 Terminal 19 Terminal 20 Terminal 21 Terminal 22 Terminal 23 Terminal 24 Terminal 25 Terminal 26 Terminal 27 Terminal 28 6.6.3 MAIN INPUT BOARD Figure 18: Main input board The input board is used to convert the analogue signals delivered by the current and voltage transformers into digital quantities used by the IED.
Page 67: Standard Output Relay Board
MiCOM P747 Chapter 3 - Hardware Design Terminal Number Opto-input Terminal 1 Opto 1 -ve Terminal 2 Opto 1 +ve Terminal 3 Opto 2 -ve Terminal 4 Opto 2 +ve Terminal 5 Opto 3 -ve Terminal 6 Opto 3 +ve Terminal 7 Opto 4 -ve Terminal 8...
Page 68 Chapter 3 - Hardware Design MiCOM P747 The output relay board can be provided together with the power supply board as a complete assembly, or independently for the purposes of relay output expansion. In the above figure, you can see the two cut-out locations in the board. These can be removed to allow power supply components to protrude when coupling the output relay board to the power supply board.
Page 69: Irig-B Board
MiCOM P747 Chapter 3 - Hardware Design IRIG-B BOARD Figure 20: IRIG-B board The IRIG-B board can be fitted to provide an accurate timing reference for the device. The IRIG-B signal is connected to the board via a BNC connector. The timing information is used to synchronise the IED's internal real-time clock to an accuracy of 1 ms.
Page 70: Fibre Optic Board
Chapter 3 - Hardware Design MiCOM P747 FIBRE OPTIC BOARD Figure 21: Fibre optic board This board provides an interface for communicating with a master station. This communication link can use all compatible protocols (Courier, IEC 60870-5-103, MODBUS and DNP 3.0). It is a fibre-optic alternative to the metallic RS485 port presented on the power supply terminal block, and as such is mutually exclusive with it.
Page 71: Rear Communication Board
MiCOM P747 Chapter 3 - Hardware Design 6.10 REAR COMMUNICATION BOARD Figure 22: Rear communication board The optional communications board containing the secondary communication ports provide two serial interfaces presented on 9 pin D-type connectors. These interfaces are known as SK4 and SK5. SK4 can be used with RS232, RS485 and K-bus.
Page 72: Ethernet Board
Chapter 3 - Hardware Design MiCOM P747 6.11 ETHERNET BOARD Figure 23: Ethernet board This is a communications board that provides a standard 100-Base Ethernet interface. This board supports one electrical copper connection and one fibre-pair connection. There are several variants for this product as follows: ●...
Page 73: Redundant Ethernet Board
MiCOM P747 Chapter 3 - Hardware Design 6.12 REDUNDANT ETHERNET BOARD Figure 24: Redundant Ethernet board This board provides dual redundant Ethernet (supported by two fibre pairs) together with an IRIG-B interface for timing. We supply different board variants depending on the redundancy protocol and the type of IRIG-B signal (demodulated or modulated).
Page 74 Chapter 3 - Hardware Design MiCOM P747 P747-TM-EN-1 P747-TM-EN-1.1...
Page 75: Chapter 4 Configuration
CONFIGURATION CHAPTER 4...
Page 76 Chapter 4 - Configuration MiCOM P747 P747-TM-EN-1 P747-TM-EN-1.1...
Page 77: Chapter Overview
MiCOM P747 Chapter 4 - Configuration CHAPTER OVERVIEW Each product has different configuration parameters according to the functions it has been designed to perform. There is, however, a common methodology used across the entire product series to set these parameters. This chapter describes an overview of this common methodology, as well as providing concise instructions of how to configure the device.
Page 78: Using The Hmi Panel
Chapter 4 - Configuration MiCOM P747 USING THE HMI PANEL Using the HMI, you can: ● Display and modify settings ● View the digital I/O signal status ● Display measurements ● Display fault records ● Reset fault and alarm indications The keypad provides full access to the device functionality using a range of menu options.
Page 79: Navigating The Hmi Panel
MiCOM P747 Chapter 4 - Configuration NAVIGATING THE HMI PANEL The cursor keys are used to navigate the menus. These keys have an auto-repeat function if held down continuously. This can be used to speed up both setting value changes and menu navigation. The longer the key is held pressed, the faster the rate of change or movement.
Page 80: Default Display
Chapter 4 - Configuration MiCOM P747 If the device is fitted with an Ethernet card (not applicable to 20TE IEDs), the only way you will be able to completely clear this alarm will be by connecting the device into an Ethernet network. This is also the only way you will be able to get into the default display menu.
Page 81: Default Display Navigation
MiCOM P747 Chapter 4 - Configuration Access Level HOTKEY In addition to the above, there are also displays for the system voltages, currents, power and frequency etc., depending on the device model. DEFAULT DISPLAY NAVIGATION The default display navigation is best represented diagrammatically. NERC compliant banner NERC Compliance...
Page 82: Processing Alarms And Fault Records
Chapter 4 - Configuration MiCOM P747 Enter Password A flashing cursor shows which character field of the password can be changed. Press the up or down cursor keys to change each character (tip: pressing the up arrow once will return an upper case "A" as required by the default level 3 password).
Page 83: Menu Structure
MiCOM P747 Chapter 4 - Configuration Note: To speed up the procedure, you can enter the alarm viewer using the Read key and subsequently pressing the Clear key. This goes straight to the fault record display. Press the Clear key again to move straight to the alarm reset prompt, then press the Clear key again to clear all alarms.
Page 84: Changing The Settings
Chapter 4 - Configuration MiCOM P747 Setting Column Description IA Phase Angle Second setting within third column IB Magnitude Third setting within third column … … … The first three column headers are common throughout much of the product ranges. However the rows within each of these column headers may differ according to the product type.
Page 85: Setting Group Selection
MiCOM P747 Chapter 4 - Configuration The functions available for direct access using these keys are: ● Setting group selection ● Control Inputs ● CB Control functions The availability of these functions is controlled by the Direct Access cell in the CONFIGURATION column. There are four options: Disabled, Enabled, CB Ctrl only and Hotkey only.
Page 86: Circuit Breaker Control
Chapter 4 - Configuration MiCOM P747 ¬STP GP User02® Control Input 1 EXIT SET Now you can execute the chosen function (Set/Reset in this case). If neither of the cursor keys is pressed within 20 seconds of entering a hotkey sub menu, the device reverts to the default display.
Page 87 MiCOM P747 Chapter 4 - Configuration associated function. Locking a function key that is set to the Normal mode causes the associated DDB signals to be permanently off. This safety feature prevents any inadvertent function key presses from activating or deactivating critical relay functions. FUNCTION KEYS Fn Key 1 Unlocked...
Page 88: Configuring The Data Protocols
Chapter 4 - Configuration MiCOM P747 CONFIGURING THE DATA PROTOCOLS Different protocols can be used with the various ports. The choice of protocol depends on the chosen model. Only one data protocol can be configured at any one time on any one IED. The range of available communication settings depend on which protocol has been chosen.
Page 89 MiCOM P747 Chapter 4 - Configuration Move down to the next cell (RP1 InactivTimer). This cell controls the inactivity timer. The inactivity timer controls how long the IED waits without receiving any messages on the rear port before it reverts to its default state, including revoking any password access that was enabled.
Page 90: Dnp3 Configuration
Chapter 4 - Configuration MiCOM P747 Note: If you modify protection and disturbance recorder settings using an on-line editor such as PAS&T, you must confirm them. To do this, from the Configuration column select the Save changes cell. Off-line editors such as MiCOM S1 Agile do not need this action for the setting changes to take effect.
Page 91: Dnp3 Configurator
MiCOM P747 Chapter 4 - Configuration Move down to the next cell (RP1 Parity). This cell controls the parity format used in the data frames. The parity can be set to be one of None, Odd or Even. Make sure that the parity format selected on the IED is the same as that set on the master station.
Page 92 Chapter 4 - Configuration MiCOM P747 Move down to the next cell (RP1 Address). This cell controls the IEC 60870-5-103 address of the IED. Up to 32 IEDs can be connected to one spur. It is therefore necessary for each IED to have a unique address so that messages from the master control station are accepted by one IED only.
Page 93: Modbus Configuration
MiCOM P747 Chapter 4 - Configuration Setting: Description: When the command blocking DDB signal is active high, either by energising an opto input or control input, all Command Blocking remote commands will be ignored (i.e. CB Trip/Close, change setting group etc.). When in this mode the device returns a "negative acknowledgement of command"...
Page 94: Iec 61850 Configuration
Chapter 4 - Configuration MiCOM P747 Move down to the next cell (RP1 Baud Rate). This cell controls the baud rate to be used. Six baud rates are supported by the IED 1200 bits/s, 2400 bits/s, 4800 bits/s, 9600 bits/s, 19200 bits/s and 38400 bits/s.
Page 95: Iec 61850 Configuration Banks
MiCOM P747 Chapter 4 - Configuration 3.5.1 IEC 61850 CONFIGURATION BANKS To help version management and minimise down-time during system upgrades and maintenance, the device has incorporated a mechanism consisting of multiple configuration banks. These configuration banks fall into two categories: ●...
Page 96: Date And Time Configuration
Chapter 4 - Configuration MiCOM P747 DATE AND TIME CONFIGURATION The Date and Time setting will normally be updated automatically by the chosen UTC (Universal Time Co- ordination) time synchronisation mechanism when the device is in service. This does not mean that you should dispense with configuring the date and time parameters during commissioning.
Page 97 MiCOM P747 Chapter 4 - Configuration ● DST End Day ● DST End Month ● DST End Mins These settings are described in the DATE AND TIME settings table in the configuration chapter. P747-TM-EN-1 P747-TM-EN-1.1...
Page 98: Configuration Settings
Chapter 4 - Configuration MiCOM P747 CONFIGURATION SETTINGS SYSTEM DATA Courier Text Default Setting Available Options Description SYSTEM DATA This column contains general system settings and records English, French, German, Spanish, Language English Russian or Chinese This setting defines the default language used by the device for ordering option language = 0, 5 or C ASCII text (characters 33 to 122 Password inclusive)
Page 99 MiCOM P747 Chapter 4 - Configuration Courier Text Default Setting Available Options Description Active Group 1, 2, 3, 4 This cell displays the active settings group Software Ref. 1 <Software Ref. 1> This cell displays the IED software version including the protocol and IED model. Software Ref 2 <Software Ref.
Page 100 Chapter 4 - Configuration MiCOM P747 Courier Text Default Setting Available Options Description 0=Unused 1=Unused 2=SG-optoInvalid 3=Prot'nDisabled 4=FoutofRange 5=VTFailAlarm 6=CTFailAlarm 7=CBFailAlarm 8=I^MaintAlarm 9=I^LockoutAlarm 10=CBOpsMaint 11=CBOpsLockout 12=CBOpTimeMaint 13=CBOpTimeLock 14=FaultFreqLock 15=CBStatusAlarm Alarm Status 1 16=ManCBTripFail 17=CBClsFail 18=ManCBUnhealthy 19=ManNoChecksync 20=ARLockout 21=ARCBUnhealthy 22=ARNoSysCheck 23=SystemSplit 24=UVBlock 25=SRUserAlarm1 26=SRUserAlarm2...
Page 101 MiCOM P747 Chapter 4 - Configuration Courier Text Default Setting Available Options Description 0=Unused 1=Unused 2=Unused 3=Unused 4=SR User Alarm 8 5=SR User Alarm 9 6=SR User Alarm 10 7=SR User Alarm 11 8=SR User Alarm 12 9=SR User Alarm 13 10=SR User Alarm 14 11=SR User Alarm 15 12=SR User Alarm 16...
Page 102 Chapter 4 - Configuration MiCOM P747 Courier Text Default Setting Available Options Description 0=Battery Fail 1=Field Volt Fail 2=Unused 3=GOOSE IED Absent 4=NIC Not Fitted 5=NIC No Response 6=NIC Fatal Error 7=Unused 8=Unused 9=Unused 10=NIC Link Fail 11=NIC SW Mis-Match 12=IP Addr Conflist 13=Unused 14=Unused...
Page 103: Date And Time
MiCOM P747 Chapter 4 - Configuration Courier Text Default Setting Available Options Description Password Level ASCII text (characters 33 to 122 inclusive) This setting allows you to change the encrypted password level 2. This is not visible via the user interface. Password Level ASCII text (characters 33 to 122 inclusive)
Page 104: General Configuration
Chapter 4 - Configuration MiCOM P747 Courier Text Default Setting Available Options Description 0 = January, 1 = February, 2 = March, 3 = April, 4 = May, 5 = June, 6 = July, 7 = DST Start Month March August, 8 = September, 9 = October, 10 = November or 11 = December This setting specifies the month in which daylight saving time adjustment starts...
Page 105 MiCOM P747 Chapter 4 - Configuration Courier Text Default Setting Available Options Description 0 = Select via Menu or 1 = Select via Setting Group Menu This setting allows you to choose whether the setting group changes are to be initiated via an Opto-input or the HMI menu.
Page 106: Transformer Ratios
Chapter 4 - Configuration MiCOM P747 Courier Text Default Setting Available Options Description Measure't Setup Visible 0 = Invisble or 1 = Visible This setting hides or unhides the Measurement Setup menu from the IED display. Comms Settings Visible 0 = Invisble or 1 = Visible This setting hides or unhides the Communication Settings menu from the IED display.
Page 107 MiCOM P747 Chapter 4 - Configuration Courier Text Default Setting Available Options Description This sets CT main data Polarity Standard 0 = Standard or 1 = Inverted Standard or reverse phase sequence can be selected. This menu sets this phase sequence.
Page 108 Chapter 4 - Configuration MiCOM P747 Courier Text Default Setting Available Options Description Terminal 6 CT This sets CT main data Polarity Standard 0 = Standard or 1 = Inverted Standard or reverse phase sequence can be selected. This menu sets this phase sequence.
Page 109 MiCOM P747 Chapter 4 - Configuration Courier Text Default Setting Available Options Description Sets the phase Current Transformer input secondary current rating Terminal 11 CT This sets CT main data Polarity Standard 0 = Standard or 1 = Inverted Standard or reverse phase sequence can be selected. This menu sets this phase sequence.
Page 110: System Configuration
Chapter 4 - Configuration MiCOM P747 Courier Text Default Setting Available Options Description Secondary From to step Sets the phase Current Transformer input secondary current rating Terminal 16 CT This sets CT main data Polarity Standard 0 = Standard or 1 = Inverted Standard or reverse phase sequence can be selected.
Page 111 MiCOM P747 Chapter 4 - Configuration Courier Text Default Setting Available Options Description 0x00000001 Terminal 1 0x00000002 Terminal 2 0x00000004 Terminal 3 0x00000008 Terminal 4 0x00000010 Terminal 5 0x00000020 Terminal 6 0x00000040 Terminal 7 0x00000080 Terminal 8 0x00000100 Terminal 9 Z1 CT Dir.
Page 112 Chapter 4 - Configuration MiCOM P747 Courier Text Default Setting Available Options Description 0x00000001 Terminal 1 0x00000002 Terminal 2 0x00000004 Terminal 3 0x00000008 Terminal 4 0x00000010 Terminal 5 0x00000020 Terminal 6 0x00000040 Terminal 7 0x00000080 Terminal 8 0x00000100 Terminal 9 Z2 CT.
Page 113 MiCOM P747 Chapter 4 - Configuration Courier Text Default Setting Available Options Description 0x00000001 Terminal 1 0x00000002 Terminal 2 0x00000004 Terminal 3 0x00000008 Terminal 4 0x00000010 Terminal 5 0x00000020 Terminal 6 0x00000040 Terminal 7 0x00000080 Terminal 8 0x00000100 Terminal 9 Z4 CT Dir.
Page 114 Chapter 4 - Configuration MiCOM P747 Courier Text Default Setting Available Options Description 0x00000001 Terminal 1 0x00000002 Terminal 2 0x00000004 Terminal 3 0x00000008 Terminal 4 0x00000010 Terminal 5 0x00000020 Terminal 6 0x00000040 Terminal 7 0x00000080 Terminal 8 0x00000100 Terminal 9 CB coupling 1CT 0x000000000000000000 0x00000200 Terminal 10...
Page 115: Security Configuration
MiCOM P747 Chapter 4 - Configuration Courier Text Default Setting Available Options Description 0x00000001 Terminal 1 0x00000002 Terminal 2 0x00000004 Terminal 3 0x00000008 Terminal 4 0x00000010 Terminal 5 0x00000020 Terminal 6 0x00000040 Terminal 7 0x00000080 Terminal 8 0x00000100 Terminal 9 Coupling 2 CT-3 0x000000000000000000 0x00000200 Terminal 10...
Page 116 Chapter 4 - Configuration MiCOM P747 Menu Text Default Setting Available Options Description This column contains settings for the Cyber-Security configuration User Banner ACCESS ONLY FOR AUTHORISED USERS ASCII 32 to 234 With this setting, you can enter text for the NERC compliant banner. Attempts Limit 0 to 3 step 1 This setting defines the maximum number of failed password attempts before action is taken.
Page 117: Chapter 5 Protection Functions
PROTECTION FUNCTIONS CHAPTER 5...
Page 118 Chapter 5 - Protection Functions MiCOM P747 P747-TM-EN-1 P747-TM-EN-1.1...
Page 119: Chapter Overview
MiCOM P747 Chapter 5 - Protection Functions CHAPTER OVERVIEW The MiCOM P747 provides a wide range of protection functions. This chapter describes the operation of these functions including the principles, logic diagrams and applications. This chapter contains the following sections: Chapter Overview Busbar Protection Busbar Multiple Tripping Criteria...
Page 120: Busbar Protection
Chapter 5 - Protection Functions MiCOM P747 BUSBAR PROTECTION A protection scheme for a power system should cover the whole system against all probable types of fault. Unrestricted forms of line protection, such as overcurrent and distance systems, meet this requirement, but clear faults in the busbar zone only after a time delay.
Page 121: Through Fault Stability
MiCOM P747 Chapter 5 - Protection Functions However, this is difficult to achieve in practice because the CTs can never have identical characteristics. A fault from another zone that causes a high current to pass through is classed as a through fault. In this case the CTs need to be able to cope without saturating.
Page 122: Figure 28: Compensation Using Biased Differential Characteristic
Chapter 5 - Protection Functions MiCOM P747 Idiff Tripping area Restrain area Ibias E00717 Figure 28: Compensation using biased differential characteristic P747-TM-EN-1 P747-TM-EN-1.1...
Page 123: Busbar Multiple Tripping Criteria
MiCOM P747 Chapter 5 - Protection Functions BUSBAR MULTIPLE TRIPPING CRITERIA To ensure that the tripping decision is correct, the following criteria must all be satisfied. They are enabled by default, but can be disabled if required. ● The current differential element (I>2) indicates a fault on the protected zone. ●...
Page 124: Topology Replica Function
Chapter 5 - Protection Functions MiCOM P747 Ordinal Signal Name Unique ID Description Enables Z1 differential block mode Set Z1 DifCbfBlk PFSI DDB_SET_Z1_BLOCK_DIFF_CBF Enables Z1 Diff & CBF Block Mode Idiff Trip PFSO DDB_IDIFF_TRIP Differential current trip Idiff Trip Z1 PFSO DDB_BUS_IDIFF_TRIP_Z1 Z1 Differential trip...
Page 125: Topology Replica Function Ddbs
MiCOM P747 Chapter 5 - Protection Functions TOPOLOGY REPLICA FUNCTION DDBS Ordinal English Text Source Element Name Response Function Description CB1 Alarm DDB_CB2_AUX_3PH_ALARM Terminal 1 CB Alarm CB1 Closed DDB_CB1_AUX_3PH_CLOSED Terminal 1 CB Closed CB18 Alarm DDB_CB18_AUX_3PH_ALARM Terminal 18 CB Alarm CB18 Closed DDB_CB18_AUX_3PH_CLOSED Terminal 18 CB Closed...
Page 126: Zone Current Differential Elements
Chapter 5 - Protection Functions MiCOM P747 ZONE CURRENT DIFFERENTIAL ELEMENTS The zone current differential element picks up if there is a fault in a zone on the busbar and the following thresholds are exceeded: ● The bias slope characteristic defined by the k2 setting in the GROUP X DIFF PROTECTION column ●...
Page 127: Check Zone Supervision
MiCOM P747 Chapter 5 - Protection Functions 3.5.1 CHECK ZONE SUPERVISION Just as the individual zones have a bias characteristic, so does the check zone. Therefore to confirm a trip both the zone and checkzone thresholds must be exceeded. The checkzone thresholds are: ●...
Page 128: Current Phase Comparison Check
Chapter 5 - Protection Functions MiCOM P747 The circuitry fail element is time delayed by default. This prevents any conflict with the tripping characteristic if there is a genuine busbar fault. If the circuitry fail element picks up, it triggers an alarm. This can be used to block tripping of the zone differential protection elements.
Page 129: Optional Voltage Criteria
MiCOM P747 Chapter 5 - Protection Functions that it is CT saturation and therefore is an external (through) fault which doesn’t need tripping. In the GROUP X DIFF PROTECTION column, you can set the threshold PhComp Thresh. Note: This is a single-phase device and the term ‘phase comparison’ does not have any association with the word ‘phase’ normally used for single-phase and three-phase systems.
Page 130: Dead Zone (Blind Spot) Protection Logic
Chapter 5 - Protection Functions MiCOM P747 Busbar CB closed CB open Dead zone E00716 Figure 34: Example of busbar dead-zone 3.11 DEAD ZONE (BLIND SPOT) PROTECTION LOGIC Dead Zone T1 to T18 Overcurrent function DeadZone 1 Start 50DZ Terminal/zone data T1 to T18 DeadZone 1 Trip Terminal 1 to 18...
Page 131: Circuit Breaker Fail Protection
MiCOM P747 Chapter 5 - Protection Functions CIRCUIT BREAKER FAIL PROTECTION When a fault occurs, one or more protection devices will operate and issue a trip command to the relevant circuit breakers. Operation of the circuit breaker is essential to isolate the fault and prevent, or at least limit, damage to the power system.
Page 132: Figure 36: Cbf Initiated By Internal Signal
Chapter 5 - Protection Functions MiCOM P747 Int CBF Init Tn Internal trip signal & I< current set & CBF Retrip Tn 0.5 to 4 Local retrip CB Fail 1 timer 0 to 10 secs CB Fail 2 timer - CB Fail 1 timer &...
Page 133: Cb Fail Settings
MiCOM P747 Chapter 5 - Protection Functions Ext CBF Init Tn External trip signal & I< current set & CBF Retrip Tn 0.5 to 4 Local retrip CB Fail 3 timer 0 to 10 secs CB Fail 4 timer - CB Fail 3 timer &...
Page 134: Cb Fail Ddb Signals
Chapter 5 - Protection Functions MiCOM P747 Menu Text Default Setting Available Options Description This setting determines the elements that will reset the CB fail timer for CB Failures, which were initiated by the voltage protection function. 0=I< Only Ext Prot Reset CB Open &...
Page 135 MiCOM P747 Chapter 5 - Protection Functions Ordinal English Text Source Type Response Function Description This DDB signal indicates that all poles are dead Pole Dead A Software PSL Input No response This DDB signal indicates that the A-phase pole is dead. Pole Dead B Software PSL Input...
Page 136: Backup Overcurrent Protection
Chapter 5 - Protection Functions MiCOM P747 BACKUP OVERCURRENT PROTECTION Back-up overcurrent protection is disabled by default but can be enabled for additional protection. The product provides two stages of independent overcurrent protection for each terminal, up to the maximum of 18 terminals.
Page 137 MiCOM P747 Chapter 5 - Protection Functions Menu Text Default Setting Available Options Description This setting determines the tripping characteristic for the second stage overcurrent element. I>2 Current Set 1.0*I1 From 0.08*I1 to 10.0*I1 step 0.01*I1 This sets the pick-up threshold for the second stage overcurrent element. I>2 Time Delay From 0 to 100 step 0.01 This sets the DT time delay for the second stage element.
Page 138 Chapter 5 - Protection Functions MiCOM P747 Menu Text Default Setting Available Options Description 0 = Disabled 1 = DT (DT) 2 = IEC S Inverse (TMS) 3 = IEC V Inverse (TMS) 4 = IEC E Inverse (TMS) 5 = UK LT Inverse (TMS) I>1 Function IEC S Inverse 6 = Rectifier (TMS)
Page 139 MiCOM P747 Chapter 5 - Protection Functions Menu Text Default Setting Available Options Description 0 = Disabled 1 = DT (DT) 2 = IEC S Inverse (TMS) 3 = IEC V Inverse (TMS) 4 = IEC E Inverse (TMS) 5 = UK LT Inverse (TMS) I>1 Function IEC S Inverse 6 = Rectifier (TMS)
Page 140 Chapter 5 - Protection Functions MiCOM P747 Menu Text Default Setting Available Options Description 0 = Disabled 1 = DT (DT) 2 = IEC S Inverse (TMS) 3 = IEC V Inverse (TMS) 4 = IEC E Inverse (TMS) 5 = UK LT Inverse (TMS) I>1 Function IEC S Inverse 6 = Rectifier (TMS)
Page 141: Overcurrent 2 Settings
MiCOM P747 Chapter 5 - Protection Functions Menu Text Default Setting Available Options Description 0 = Disabled 1 = DT (DT) 2 = IEC S Inverse (TMS) 3 = IEC V Inverse (TMS) 4 = IEC E Inverse (TMS) 5 = UK LT Inverse (TMS) I>1 Function IEC S Inverse 6 = Rectifier (TMS)
Page 142 Chapter 5 - Protection Functions MiCOM P747 Menu Text Default Setting Available Options Description 0 = Disabled 1 = DT (DT) 2 = IEC S Inverse (TMS) 3 = IEC V Inverse (TMS) 4 = IEC E Inverse (TMS) 5 = UK LT Inverse (TMS) I>1 Function IEC S Inverse 6 = Rectifier (TMS)
Page 143 MiCOM P747 Chapter 5 - Protection Functions Menu Text Default Setting Available Options Description 0 = Disabled 1 = DT (DT) 2 = IEC S Inverse (TMS) 3 = IEC V Inverse (TMS) 4 = IEC E Inverse (TMS) 5 = UK LT Inverse (TMS) I>1 Function IEC S Inverse 6 = Rectifier (TMS)
Page 144 Chapter 5 - Protection Functions MiCOM P747 Menu Text Default Setting Available Options Description 0 = Disabled 1 = DT (DT) 2 = IEC S Inverse (TMS) 3 = IEC V Inverse (TMS) 4 = IEC E Inverse (TMS) 5 = UK LT Inverse (TMS) I>1 Function IEC S Inverse 6 = Rectifier (TMS)
Page 145 MiCOM P747 Chapter 5 - Protection Functions Menu Text Default Setting Available Options Description 0 = Disabled 1 = DT (DT) 2 = IEC S Inverse (TMS) 3 = IEC V Inverse (TMS) 4 = IEC E Inverse (TMS) 5 = UK LT Inverse (TMS) I>1 Function IEC S Inverse 6 = Rectifier (TMS)
Page 146 Chapter 5 - Protection Functions MiCOM P747 Menu Text Default Setting Available Options Description 0 = Disabled 1 = DT (DT) 2 = IEC S Inverse (TMS) 3 = IEC V Inverse (TMS) 4 = IEC E Inverse (TMS) 5 = UK LT Inverse (TMS) I>1 Function IEC S Inverse 6 = Rectifier (TMS)
Page 147 MiCOM P747 Chapter 5 - Protection Functions Menu Text Default Setting Available Options Description 0 = Disabled 1 = DT (DT) 2 = IEC S Inverse (TMS) 3 = IEC V Inverse (TMS) 4 = IEC E Inverse (TMS) 5 = UK LT Inverse (TMS) I>1 Function IEC S Inverse 6 = Rectifier (TMS)
Page 148 Chapter 5 - Protection Functions MiCOM P747 Menu Text Default Setting Available Options Description 0 = Disabled 1 = DT (DT) 2 = IEC S Inverse (TMS) 3 = IEC V Inverse (TMS) 4 = IEC E Inverse (TMS) 5 = UK LT Inverse (TMS) I>1 Function IEC S Inverse 6 = Rectifier (TMS)
Page 149 MiCOM P747 Chapter 5 - Protection Functions Menu Text Default Setting Available Options Description 0 = Disabled 1 = DT (DT) 2 = IEC S Inverse (TMS) 3 = IEC V Inverse (TMS) 4 = IEC E Inverse (TMS) 5 = UK LT Inverse (TMS) I>1 Function IEC S Inverse 6 = Rectifier (TMS)
Page 150 Chapter 5 - Protection Functions MiCOM P747 Menu Text Default Setting Available Options Description 0 = Disabled 1 = DT (DT) 2 = IEC S Inverse (TMS) 3 = IEC V Inverse (TMS) 4 = IEC E Inverse (TMS) 5 = UK LT Inverse (TMS) I>1 Function IEC S Inverse 6 = Rectifier (TMS)
Page 151 MiCOM P747 Chapter 5 - Protection Functions Menu Text Default Setting Available Options Description 0 = Disabled 1 = DT (DT) 2 = IEC S Inverse (TMS) 3 = IEC V Inverse (TMS) 4 = IEC E Inverse (TMS) 5 = UK LT Inverse (TMS) I>1 Function IEC S Inverse 6 = Rectifier (TMS)
Page 152 Chapter 5 - Protection Functions MiCOM P747 Menu Text Default Setting Available Options Description 0 = Disabled 1 = DT (DT) 2 = IEC S Inverse (TMS) 3 = IEC V Inverse (TMS) 4 = IEC E Inverse (TMS) 5 = UK LT Inverse (TMS) I>1 Function IEC S Inverse 6 = Rectifier (TMS)
Page 153: Overcurrent Ddb Signals
MiCOM P747 Chapter 5 - Protection Functions Menu Text Default Setting Available Options Description 0 = Disabled 1 = DT (DT) 2 = IEC S Inverse (TMS) 3 = IEC V Inverse (TMS) 4 = IEC E Inverse (TMS) 5 = UK LT Inverse (TMS) I>1 Function IEC S Inverse 6 = Rectifier (TMS)
Page 154 Chapter 5 - Protection Functions MiCOM P747 Ordinal Signal Name Source Type Response Description I>3 Timer Block Programmable Scheme Logic PSL Output No response This DDB signal blocks the third stage overcurrent time delay I>4 Timer Block Programmable Scheme Logic PSL Output No response This DDB signal blocks the fourth stage overcurrent time delay...
Page 155 MiCOM P747 Chapter 5 - Protection Functions Ordinal Signal Name Source Type Response Description I>1 Start C Software PSL Input Protection event This DDB signal is the first stage C-phase Overcurrent start signal I>2 Start Software PSL Input Protection event This DDB signal is the second stage any-phase Overcurrent start signal I>2 Start A Software...
Page 156 Chapter 5 - Protection Functions MiCOM P747 Ordinal Signal Name Source Type Response Description I>6 Trip Software PSL Input Protection event This DDB signal is the sixth stage three-phase Phase Overcurrent trip signal I>6 Trip A Software PSL Input Protection event This DDB signal is the sixth stage A-phase Phase Overcurrent trip signal I>6 Trip B Software...
Page 157: Configuring The Busbar Protection
MiCOM P747 Chapter 5 - Protection Functions CONFIGURING THE BUSBAR PROTECTION To configure the product to the topology of the busbar, use the settings in the GROUP X SYSTEM CONFIG column and map the digital inputs (DDBs) in the Programmable Scheme Logic (PSL). You don’t need to use special topology design software.
Page 158 Chapter 5 - Protection Functions MiCOM P747 ● The allocation of current transformer numbers (CT1, CT2, etc.), are defined by the input circuit to which they are connected. ● The current transformers are assumed to have the polarities shown but you can invert the polarity in the settings.
Page 159 MiCOM P747 Chapter 5 - Protection Functions CB5 Closed DDB # Input L3 DDB # CB5&6 52B (open) CB6 Closed DDB # CB7 Closed DDB # Input L4 DDB # CB7&8 52B (open) CB8 Closed DDB # E00723 The following diagram shows bus coupler isolators for the worked example The configuration is then complete.
Page 160 Chapter 5 - Protection Functions MiCOM P747 P747-TM-EN-1 P747-TM-EN-1.1...
Page 161: Chapter 6 Monitoring And Control
MONITORING AND CONTROL CHAPTER 6...
Page 162 Chapter 6 - Monitoring and Control MiCOM P747 P747-TM-EN-1 P747-TM-EN-1.1...
Page 163: Chapter Overview
MiCOM P747 Chapter 6 - Monitoring and Control CHAPTER OVERVIEW As well as providing a range of protection functions, the product includes comprehensive monitoring and control functionality. This chapter contains the following sections: Chapter Overview Event Records Disturbance Recorder Measurements I/O Functions Voltage Transformer Supervision Trip Circuit Supervision...
Page 164: Event Records
Chapter 6 - Monitoring and Control MiCOM P747 EVENT RECORDS Event records are generated when certain events happen. A change in any digital input signal or protection element output signal causes an event record to be created. These events are generated by the protection software and immediately time stamped.
Page 165 MiCOM P747 Chapter 6 - Monitoring and Control Courier Text Default Setting Available Options Description This setting enables or disables the generation of an event for a change of state of output relay contact. Disabling this setting means that no event will be generated for any change in logic output state.
Page 166 Chapter 6 - Monitoring and Control MiCOM P747 Courier Text Default Setting Available Options Description These signals can be included or excluded from being stored as a Courier event record (assuming the DDB is capable of creating an event) 32-bit binary flag (data type G27) DDB 223 - 192 0xFFFFFFFF 1 = event recording Enabled...
Page 167 MiCOM P747 Chapter 6 - Monitoring and Control Courier Text Default Setting Available Options Description These signals can be included or excluded from being stored as a Courier event record (assuming the DDB is capable of creating an event) 32-bit binary flag (data type G27) DDB 543 - 512 0xFFFFFFFF 1 = event recording Enabled...
Page 168 Chapter 6 - Monitoring and Control MiCOM P747 Courier Text Default Setting Available Options Description These signals can be included or excluded from being stored as a Courier event record (assuming the DDB is capable of creating an event) 32-bit binary flag (data type G27) DDB 863 –...
Page 169 MiCOM P747 Chapter 6 - Monitoring and Control Courier Text Default Setting Available Options Description These signals can be included or excluded from being stored as a Courier event record (assuming the DDB is capable of creating an event) 32-bit binary flag (data type G27) DDB 1183-1152 0xFFFFFFFF 1 = event recording Enabled...
Page 170 Chapter 6 - Monitoring and Control MiCOM P747 Courier Text Default Setting Available Options Description These signals can be included or excluded from being stored as a Courier event record (assuming the DDB is capable of creating an event) 32-bit binary flag (data type G27) DDB 1503-1472 0xFFFFFFFF 1 = event recording Enabled...
Page 171: Event Types
MiCOM P747 Chapter 6 - Monitoring and Control Courier Text Default Setting Available Options Description These signals can be included or excluded from being stored as a Courier event record (assuming the DDB is capable of creating an event) 32-bit binary flag (data type G27) DDB 1823-1792 0xFFFFFFFF 1 = event recording Enabled...
Page 172: Opto-Input Events
Chapter 6 - Monitoring and Control MiCOM P747 ● Fault record events ● Standard events ● Security Events Standard events are further sub-categorised internally to include different pieces of information. These are: ● Protection events (starts and trips) ● Maintenance record events ●...
Page 173 MiCOM P747 Chapter 6 - Monitoring and Control Alarm Status 2 Bit no. Bit Mask (hex) Alarm Description 0x00000001 Not Used 0x00000002 Not Used 0x00000004 Setting Group selection by DDB inputs invalid 0x00000008 CB Status Alarm 0x00000010 OOS Alarm 0x00000020 Frequency out of range Alarm 0x00000040 Circuitry Fault CZ Alarm...
Page 174 Chapter 6 - Monitoring and Control MiCOM P747 Bit no. Bit Mask (hex) Alarm Description 0x00000080 CB Fail Alarm T2 0x00000100 CB Fail Alarm T3 0x00000200 CB Fail Alarm T4 0x00000400 CB Fail Alarm T5 0x00000800 CB Fail Alarm T6 0x00001000 CB Fail Alarm T7 0x00002000...
Page 175: Fault Record Events
MiCOM P747 Chapter 6 - Monitoring and Control Bit no. Bit Mask (hex) Alarm Description 0x00008000 unused 0x00010000 unused 0x00020000 unused 0x00040000 unused 0x00080000 unused 0x00100000 unused 0x00200000 unused 0x00400000 unused 0x00800000 unused 0x01000000 unused 0x02000000 unused 0x04000000 unused 0x08000000 unused 0x10000000 unused...
Page 176: Maintenance Events
Chapter 6 - Monitoring and Control MiCOM P747 Note: We recommend that you do not set the triggering contact to latching. This is because if you use a latching contact, the fault record would not be generated until the contact has been fully reset. 2.2.5 MAINTENANCE EVENTS Internal failures detected by the self-test procedures are logged as maintenance records.
Page 177: Protection Events
MiCOM P747 Chapter 6 - Monitoring and Control 2.2.6 PROTECTION EVENTS The IED logs protection starts and trips as individual events. Protection events are special types of standard events. The event type description shown in the Event Text cell for this type of event is dependent on the protection event that occurred.
Page 178: Platform Events
Chapter 6 - Monitoring and Control MiCOM P747 Event Value Event Text Description PSL Confg Upload A PSL configuration has been uploaded from the IED Settings Upload Settings have been uploaded from the IED Events Extracted Events have been extracted Actv.
Page 179 MiCOM P747 Chapter 6 - Monitoring and Control Courier Text Default Setting Available Options Description Menu Cell Ref (From Record) <Event type> This cell indicates the type of event Time & Date (From Record) <Date and time of the event> This cell shows the Time &...
Page 180 Chapter 6 - Monitoring and Control MiCOM P747 Courier Text Default Setting Available Options Description IX-1 to 63 to Not Settable IX-18 Magnitude This cell displays the magnitude on analogue current channel 1 to 18 VxN Magnitude Z1 A0 to Not Settable to Z4 This cell displays the magnitude on analogue voltage channel 1 to 4...
Page 181: Disturbance Recorder
MiCOM P747 Chapter 6 - Monitoring and Control DISTURBANCE RECORDER The disturbance recorder feature allows you to record selected current and voltage inputs to the protection elements, together with selected digital signals. The digital signals may be inputs, outputs, or internal DDB signals.
Page 182: Measurements
Chapter 6 - Monitoring and Control MiCOM P747 MEASUREMENTS MEASURED QUANTITIES The device measures directly and calculates a number of system quantities, which are updated every second. You can view these values in the MEASUREMENTS columns or with the Measurement Viewer in the settings application software.
Page 183: Demand Values
MiCOM P747 Chapter 6 - Monitoring and Control Measurement Mode Parameter Signing Export Power – Import Power Lagging Vars – Leading VArs The device also calculates the per-phase and three-phase power factors. These power values are also used to increment the total real and reactive energy measurements. Separate energy measurements are maintained for the total exported and imported energy.
Page 184: Measurement Tables
Chapter 6 - Monitoring and Control MiCOM P747 Courier Text Default Setting Available Options Description MEASURE'T SETUP This column contains settings for the measurement setup 0 Banner 1 Date and Time 2 Description Default Display User Banner 3 Plant Reference 4 Frequency 5 Access Level This setting is used to select the default display from a range of options.
Page 185 MiCOM P747 Chapter 6 - Monitoring and Control Courier Text Default Setting Available Options Description IX-2 Magnitude Not Settable IX-2 Magnitude IX-2 Phase Angle Not Settable IX-2 Phase Angle IX-3 Magnitude Not Settable IX-3 Magnitude IX-3 Phase Angle Not Settable IX-3 Phase Angle IX-4 Magnitude Not Settable...
Page 186 Chapter 6 - Monitoring and Control MiCOM P747 Courier Text Default Setting Available Options Description IX-12 Phase Angle Not Settable IX-12 Phase Angle IX-13 Magnitude Not Settable IX-13 Magnitude IX-13 Phase Angle Not Settable IX-13 Phase Angle IX-14 Magnitude Not Settable IX-14 Magnitude IX-14 Phase Angle Not Settable...
Page 187: Measurement Table 3
MiCOM P747 Chapter 6 - Monitoring and Control Courier Text Default Setting Available Options Description VxN Phase Angle Not Settable VxN Phase Angle Z4 VxN RMS Z1 Not Settable VxN RMS Z1 VxN RMS Z2 Not Settable VxN RMS Z2 VxN RMS Z3 Not Settable VxN RMS Z3...
Page 188: O Functions
Chapter 6 - Monitoring and Control MiCOM P747 I/O FUNCTIONS FUNCTION KEYS For many models, a number of programmable function keys are available. This allows you to assign function keys to control functionality via the programmable scheme logic (PSL). Each function key is associated with a programmable tri-colour LED, which you can program to give the desired indication on activation of the function key.
Page 189: Function Key Settings
MiCOM P747 Chapter 6 - Monitoring and Control Ordinal Signal Name Source Type Response Description DDB signal indicates that Function key 5 is active Function Key 6 Software Function Key Protection event DDB signal indicates that Function key 6 is active Function Key 7 Software Function Key...
Page 190: Programable Leds
Chapter 6 - Monitoring and Control MiCOM P747 5.2.2 PROGRAMABLE LEDS The device has a number of programmable LEDs, which can be associated with PSL-generated signals. All of the programmable LEDs are tri-colour and can be set to RED, YELLOW or GREEN. 5.2.3 FUNCTION KEY LEDS Adjacent to the function keys are programmable tri-colour LEDs.
Page 191 MiCOM P747 Chapter 6 - Monitoring and Control Ordinal Signal Name Source Type Response Description LED2 Grn Software TRI LED NO RESPONSE Tri-LED - 2 - Green (Programmable LED) LED3 Red Software TRI LED NO RESPONSE Tri-LED - 3 - Red (Programmable LED) LED3 Grn Software TRI LED...
Page 192: Led Conditioners
Chapter 6 - Monitoring and Control MiCOM P747 Ordinal Signal Name Source Type Response Description FnKey LED5 Red Software TRI LED NO RESPONSE Tri-LED - 13 - Red (Function key LED) FnKey LED5 Grn Software TRI LED NO RESPONSE Tri-LED - 13 - Green (Function key LED) FnKey LED6 Red Software TRI LED...
Page 193 MiCOM P747 Chapter 6 - Monitoring and Control Courier Text Default Setting Available Options Description This setting sets the nominal DC voltage for all opto-inputs. The Custom settign allows you to set each opto-input to any voltage value individually. 0 = 24/27V, 1 = 30/34V, 2 = 48/54V, 3 = Opto Input 1 48-54V 110/125V or 4 = 220/250V...
Page 194 Chapter 6 - Monitoring and Control MiCOM P747 Courier Text Default Setting Available Options Description 0 = 24/27V, 1 = 30/34V, 2 = 48/54V, 3 = Opto Input 16 48-54V 110/125V or 4 = 220/250V This cell sets the nominal voltage for opto-input 16 0 = 24/27V, 1 = 30/34V, 2 = 48/54V, 3 = Opto Input 17 48-54V...
Page 195: Opto-Input Labels
MiCOM P747 Chapter 6 - Monitoring and Control Courier Text Default Setting Available Options Description This cell sets the nominal voltage for opto-input 31 0 = 24/27V, 1 = 30/34V, 2 = 48/54V, 3 = Opto Input 32 48-54V 110/125V or 4 = 220/250V This cell sets the nominal voltage for opto-input 32 0 = 24/27V, 1 = 30/34V, 2 = 48/54V, 3 = Opto Input 33...
Page 196 Chapter 6 - Monitoring and Control MiCOM P747 Courier Text Default Setting Available Options Description This setting defines the label for opto-input 2 Opto Input 3 L3 Not Used ASCII text This setting defines the label for opto-input 3 Opto Input 4 L4 Not Used ASCII text This setting defines the label for opto-input 4...
Page 197: Opto-Input Ddb Signals
MiCOM P747 Chapter 6 - Monitoring and Control Courier Text Default Setting Available Options Description This setting defines the label for opto-input 23 Opto Input 24 L24 Not Used ASCII text This setting defines the label for opto-input 24 Opto Input 25 L25 Not Used ASCII text This setting defines the label for opto-input 25...
Page 198: Enhanced Time Stamping
Chapter 6 - Monitoring and Control MiCOM P747 Ordinal Signal Name Source Type Response Description DDB signals for opto-Isolator Inputs 1 to 40 5.3.4 ENHANCED TIME STAMPING Each opto-input sample is time stamped within a tolerance of +/- 1 ms with respect to the Real Time Clock. These time stamps are used for the opto event logs and for the disturbance recording.
Page 199 MiCOM P747 Chapter 6 - Monitoring and Control Courier Text Default Setting Available Options Description This setting defines the label for output relay 11 Relay 12 R12 Not Used ASCII text This setting defines the label for output relay 12 Relay 13 R13 Not Used ASCII text...
Page 200: Output Relay Ddb Signals
Chapter 6 - Monitoring and Control MiCOM P747 Courier Text Default Setting Available Options Description This setting defines the label for output relay 32 5.4.2 OUTPUT RELAY DDB SIGNALS The output relays are associated with DDB signals. The default assignments are provided, but you can configure these in the O/P LABELS column if required.
Page 201 MiCOM P747 Chapter 6 - Monitoring and Control Courier Text Default Setting Available Options Description Control Input 4 No Operation 0 = No Operation, 1 = Set , 2 = Reset This command sets or resets Control Input 4 Control Input 5 No Operation 0 = No Operation, 1 = Set , 2 = Reset This command sets or resets Control Input 5...
Page 202: Control Input Configuration
Chapter 6 - Monitoring and Control MiCOM P747 Courier Text Default Setting Available Options Description Control Input 25 No Operation 0 = No Operation, 1 = Set , 2 = Reset This command sets or resets Control Input 25 Control Input 26 No Operation 0 = No Operation, 1 = Set , 2 = Reset This command sets or resets Control Input 26...
Page 203 MiCOM P747 Chapter 6 - Monitoring and Control Courier Text Col Row Default Setting Available Options Description 0 = On/Off, 1 = Set/Reset, 2 = In/Out, Ctrl Command 4 SET/RESET 3 = Enabled/Disabled This setting allows you to select the text to be displayed on the hotkey menu. Control Input 5 Latched 0 = Latched or 1 = Pulsed...
Page 204 Chapter 6 - Monitoring and Control MiCOM P747 Courier Text Col Row Default Setting Available Options Description 0 = On/Off, 1 = Set/Reset, 2 = In/Out, Ctrl Command 13 SET/RESET 3 = Enabled/Disabled This setting allows you to select the text to be displayed on the hotkey menu. Control Input 14 Latched 0 = Latched or 1 = Pulsed...
Page 205 MiCOM P747 Chapter 6 - Monitoring and Control Courier Text Col Row Default Setting Available Options Description 0 = On/Off, 1 = Set/Reset, 2 = In/Out, Ctrl Command 22 SET/RESET 3 = Enabled/Disabled This setting allows you to select the text to be displayed on the hotkey menu. Control Input 23 Latched 0 = Latched or 1 = Pulsed...
Page 206: Control Input Labels
Chapter 6 - Monitoring and Control MiCOM P747 Courier Text Col Row Default Setting Available Options Description 0 = On/Off, 1 = Set/Reset, 2 = In/Out, Ctrl Command 31 SET/RESET 3 = Enabled/Disabled This setting allows you to select the text to be displayed on the hotkey menu. Control Input 32 Latched 0 = Latched or 1 = Pulsed...
Page 207: Voltage Transformer Supervision
MiCOM P747 Chapter 6 - Monitoring and Control VOLTAGE TRANSFORMER SUPERVISION The Voltage Transformer Supervision (VTS) function detects failure of the AC voltage inputs to the IED. If the IED misinterprets this as a failure of the actual phase voltages on the power system, it could result in unecessary tripping of a circuit breaker.
Page 208: Trip Circuit Supervision
Chapter 6 - Monitoring and Control MiCOM P747 TRIP CIRCUIT SUPERVISION In most protection schemes, the trip circuit extends beyond the IED enclosure and passes through components such as links, relay contacts, auxiliary switches and other terminal boards. Such complex arrangements may require dedicated schemes for their supervision.
Page 209: Psl For Tcs Scheme 1
MiCOM P747 Chapter 6 - Monitoring and Control 7.1.1 PSL FOR TCS SCHEME 1 Opto-input dropoff NC Output Relay straight & Latching pickup Key: External DDB Signal User Alarm Time Delay Inverter & V01217 Figure 42: PSL for TCS Scheme 1 The opto-input can be used to drive a Normally Closed Output Relay, which in turn can be used to drive alarm equipment.
Page 210: Psl For Tcs Scheme 2
Chapter 6 - Monitoring and Control MiCOM P747 7.2.1 PSL FOR TCS SCHEME 2 Opto-input 1 CB Aux 3ph (52A) dropoff NC Output Relay straight Opto-input 2 CB Aux 3ph (52B) & Latching pickup Key: External DDB Signal User Alarm Time Delay Inverter &...
Page 211: Chapter 7 Scada Communications
SCADA COMMUNICATIONS CHAPTER 7...
Page 212 Chapter 7 - SCADA Communications MiCOM P747 P747-TM-EN-1 P747-TM-EN-1.1...
Page 213: Chapter Overview
MiCOM P747 Chapter 7 - SCADA Communications CHAPTER OVERVIEW The MiCOM products support substation automation system and SCADA communications based on two communications technologies; serial and Ethernet. Serial communications has been around for a long time, and there are many substations still wired up this way. Ethernet is a more modern medium and all modern substation communications is based on this technology.
Page 214: Communication Interfaces
Chapter 7 - SCADA Communications MiCOM P747 COMMUNICATION INTERFACES The MiCOM Px4x products have a number of standard and optional communication interfaces. The standard and optional hardware and protocols are summarised below: Port Availability Physical layer Data Protocols Front Standard RS232 Local settings Courier...
Page 215: Serial Communication
MiCOM P747 Chapter 7 - SCADA Communications SERIAL COMMUNICATION The physical layer standards that are used for serial communications for SCADA purposes are: ● EIA(RS)485 (often abbreviated to RS485) ● K-Bus (a proprietary customization of RS485) EIA(RS)232 is used for local communication with the IED (for transferring settings and downloading firmware updates) RS485 is similar to RS232 but for longer distances and it allows daisy-chaining and multi-dropping of IEDs.
Page 216: Eia(Rs)485 Biasing Requirements
Chapter 7 - SCADA Communications MiCOM P747 (due to retries), increasing message error counts, erratic communications, and in the worst case, complete failure to communicate. 3.2.1 EIA(RS)485 BIASING REQUIREMENTS Biasing requires that the signal lines be weakly pulled to a defined voltage level of about 1 V. There should only be one bias point on the bus, which is best situated at the master connection point.
Page 217: Figure 48: Remote Communication Using K-Bus
MiCOM P747 Chapter 7 - SCADA Communications The K-Bus signal is a differential signal and there is no signal ground connection. If a signal ground connection is present in the bus cable then it must be ignored. At no stage should this be connected to the cable's screen or to the product’s chassis.
Page 218: Standard Ethernet Communication
Chapter 7 - SCADA Communications MiCOM P747 STANDARD ETHERNET COMMUNICATION The type of Ethernet board depends on the chosen model. The available boards and their features are described in the Hardware Design chapter of this manual. The Ethernet interface is required for either IEC 61850 or DNP3 over Ethernet (protocol must be selected at time of order).
Page 219: Overview Of Data Protocols
MiCOM P747 Chapter 7 - SCADA Communications OVERVIEW OF DATA PROTOCOLS The products supports a wide range of protocols to make them applicable to many industries and applications. The exact data protocols supported by a particular product depend on its chosen application, but the following table gives a list of the data protocols that are typically available.
Page 220: Courier
Chapter 7 - SCADA Communications MiCOM P747 COURIER This section should provide sufficient detail to enable understanding of the Courier protocol at a level required by most users. For situations where the level of information contained in this manual is insufficient, further publications (R6511 and R6512) containing in-depth details about the protocol and its use, are available on request.
Page 221: Settings Transfer
MiCOM P747 Chapter 7 - SCADA Communications Method 1 This uses a combination of three commands to perform a settings change: First, enter Setting mode: This checks that the cell is settable and returns the limits. Preload Setting: This places a new value into the cell. This value is echoed to ensure that setting corruption has not taken place.
Page 222: Disturbance Record Extraction
Chapter 7 - SCADA Communications MiCOM P747 Fault Record Selection ('Select Fault' cell: 0105) This cell can be used to select a fault record directly, using a value between 0 and 4 to select one of up to five stored fault records. (0 is the most recent fault and 4 is the oldest). The column then contains the details of the fault record selected.
Page 223: Programmable Scheme Logic Settings
MiCOM P747 Chapter 7 - SCADA Communications cell B40B and saved in the COMTRADE format. The settings application software software automatically does this. PROGRAMMABLE SCHEME LOGIC SETTINGS The programmable scheme logic (PSL) settings can be uploaded from and downloaded to the IED using the block transfer mechanism.
Page 224: Physical Connection And Link Layer
Chapter 7 - SCADA Communications MiCOM P747 IEC 60870-5-103 The specification IEC 60870-5-103 (Telecontrol Equipment and Systems Part 5 Section 103: Transmission Protocols), defines the use of standards IEC 60870-5-1 to IEC 60870-5-5, which were designed for communication with protection equipment This section describes how the IEC 60870-5-103 standard is applied to the Px40 platform.
Page 225: Time Synchronisation
MiCOM P747 Chapter 7 - SCADA Communications TIME SYNCHRONISATION The time and date can be set using the time synchronization feature of the IEC 60870-5-103 protocol. The device will correct for the transmission delay as specified in IEC 60870-5-103. If the time synchronization message is sent as a send/confirm message then the device will respond with a confirm message.
Page 226: Command/Monitor Blocking
Chapter 7 - SCADA Communications MiCOM P747 7.10 COMMAND/MONITOR BLOCKING The device supports a facility to block messages in the monitor direction (data from the device) and also in the command direction (data to the device). Messages can be blocked in the monitor and command directions using one of the two following methods ●...
Page 227: Dnp
MiCOM P747 Chapter 7 - SCADA Communications DNP 3.0 This section describes how the DNP 3.0 standard is applied to the Px40 platform. It is not a description of the standard itself. The level at which this section is written assumes that the reader is already familiar with the DNP 3.0 standard.
Page 228: Object 20 Binary Counters
Chapter 7 - SCADA Communications MiCOM P747 DNP Latch DNP Latch DNP Latch DNP Latch Control Input (Latched) Aliased Control Input (Latched) Control Input (Pulsed ) Aliased Control Input (Pulsed ) The pulse width is equal to the duration of one protection iteration V01002 Figure 49: Control input behaviour Many of the IED’s functions are configurable so some of the Object 10 commands described in the following...
Page 229: Object 40 Analogue Output
MiCOM P747 Chapter 7 - SCADA Communications Analogue values can be reported to the master station as primary, secondary or normalized values (which takes into account the IED’s CT and VT ratios), and this is settable in the COMMUNICATIONS column in the IED.
Page 230: Modbus
Chapter 7 - SCADA Communications MiCOM P747 MODBUS This section describes how the MODBUS standard is applied to the Px40 platform. It is not a description of the standard itself. The level at which this section is written assumes that the reader is already familiar with the MODBUS standard.
Page 231: Register Mapping
MiCOM P747 Chapter 7 - SCADA Communications MCode MODBUS Description MiCOM Interpretation The start data address in the request is not an allowable value. If any of the addresses in the range cannot be accessed due to password protection then all changes within the request are discarded and this error response will be returned.
Page 232: Manual Event Record Extraction
Chapter 7 - SCADA Communications MiCOM P747 the data has been read, the event record can be marked as having been read by writing a value of '2' to register 40400. 9.5.2 MANUAL EVENT RECORD EXTRACTION There are three registers available to manually select stored records and three read-only registers allowing the number of stored records to be determined.
Page 233: Disturbance Record Extraction
MiCOM P747 Chapter 7 - SCADA Communications DISTURBANCE RECORD EXTRACTION The IED provides facilities for both manual and automatic extraction of disturbance records. Records extracted over MODBUS from Px40 devices are presented in COMTRADE format. This involves extracting an ASCII text configuration file and then extracting a binary data file. Each file is extracted by reading a series of data pages from the IED The data page is made up of 127 registers, giving a maximum transfer of 254 bytes per page.
Page 234: Manual Extraction Procedure
Chapter 7 - SCADA Communications MiCOM P747 Note: Register addresses are provided in reference code + address format. E.g. 4x00001 is reference code 4x, address 1 (which is specified as function code 03, address 0x0000 in the MODBUS specification). The disturbance record status register will report one of the following values: Disturbance record states State Description...
Page 235: Automatic Extraction Procedure
MiCOM P747 Chapter 7 - SCADA Communications Start Get number of disturbances from register 3x00800 Are there disturbances? Get oldest disturbance ID from register 3x00801 Select required disturbance by writing the ID value of the required record to register 4x00250 Get disturbance time stamp Extract disturbance data from registers 3x00930 –...
Page 236: Figure 51: Automatic Selection Of Disturbance Record - Method 1
Chapter 7 - SCADA Communications MiCOM P747 Start Read status word from register 3x0001 Is disturbance bit (bit 4) set? Error Select next oldest non- extracted record by writing 0x04 to register 4x00400 Send command to accept Extract disturbance data record by writing 0x08 to register 4x00400 V01004...
Page 237: Extracting The Disturbance Data
MiCOM P747 Chapter 7 - SCADA Communications Start FirstTime = True Read status word from register 3x0001 FirstTime = True Is disturbance bit (bit 4) set? Select next oldest non- Is FirstTime = extracted record by writing True? 0x04 to register 4x00400 FirstTime = False Send command to accept Error...
Page 238: Figure 53: Configuration File Extraction
Chapter 7 - SCADA Communications MiCOM P747 Extracting the Comtrade configuration file Start (Record selected) To parent procedure Busy Read DR status value from register 3x00934 Check DR status for error conditions or Error Busy status Configuration complete Other What is the value of DR status? Page ready Read number of...
Page 239: Figure 54: Data File Extraction
MiCOM P747 Chapter 7 - SCADA Communications Extracting the comtrade data file Start (Configuration complete) Send ‘Select Data File’ to register 4x00400 To parent procedure Busy Read DR status value from register 3x00934 Check DR status for error conditions or Error Busy status Record complete...
Page 240: Setting Changes
Chapter 7 - SCADA Communications MiCOM P747 Value State Description No unextracted An attempt was made by the master station to automatically select the next oldest unextracted disturbance disturbances when all records have been extracted. Not a valid disturbance An attempt was made by the master station to manually select a record that did not exist in the relay. Command out of The master station issued a command to the relay that was not expected during the extraction process.
Page 241: Time Synchronisation
MiCOM P747 Chapter 7 - SCADA Communications The setting changes performed by either of the two operations defined above are made to the scratchpad area. These changes must be confirmed by writing to register 4x0405. The active protection setting groups can be selected by writing to register 40404. An illegal data response will be returned if an attempt is made to set the active group to one that has been disabled.
Page 242: Power And Energy Measurement Data Formats
Chapter 7 - SCADA Communications MiCOM P747 The summertime bit is used to indicate that summertime (day light saving) is being used and, more importantly, to resolve the alias and time discontinuity which occurs when summertime starts and ends. This is important for the correct time correlation of time stamped records.
Page 243: Iec 61850
MiCOM P747 Chapter 7 - SCADA Communications IEC 61850 This section describes how the IEC 61850 standard is applied to Alstom Grid products. It is not a description of the standard itself. The level at which this section is written assumes that the reader is already familiar with the IEC 61850 standard.
Page 244: Iec 61850 In Micom Ieds
Chapter 7 - SCADA Communications MiCOM P747 Data Attributes stVal Data Objects Logical Nodes : 1 to n LN1: XCBR LN2: MMXU Logical Device : IEDs 1 to n Physical Device (network address) V01008 Figure 55: Data model layers in IEC 61850 The levels of this hierarchy can be described as follows: Data Frame format Layer...
Page 245: Iec 61850 Data Model Implementation
MiCOM P747 Chapter 7 - SCADA Communications The IEC 61850 compatible interface standard provides capability for the following: ● Read access to measurements ● Refresh of all measurements at the rate of once per second. ● Generation of non-buffered reports on change of status or measurement ●...
Page 246: Mapping Goose Messages To Virtual Inputs
Chapter 7 - SCADA Communications MiCOM P747 10.8 MAPPING GOOSE MESSAGES TO VIRTUAL INPUTS Each GOOSE signal contained in a subscribed GOOSE message can be mapped to any of the 32 virtual inputs within the PSL. The virtual inputs allow the mapping to internal logic functions for protection control, directly to output contacts or LEDs for monitoring.
Page 247 MiCOM P747 Chapter 7 - SCADA Communications Courier Text Default Setting Available Options Description Switch Conf.Bank No Action 0 = No Action or 1 = Switch banks This command allows you to switch between the current configuration, held in the Active Memory Bank to the configuration held in the Inactive Memory Bank.
Page 248 Chapter 7 - SCADA Communications MiCOM P747 Courier Text Default Setting Available Options Description This setting allows the test pattern to be sent in the GOOSE message. With ‘Pass Through’, the data in the GOOSE message is sent as normal. With ‘Forced’, the data sent in the GOOSE message follows the ‘VOP Test Pattern’ setting. Ignore Test Flag 0 = No or 1 = Yes This cell allows you to ignore the test flag, if set.
Page 249: Read Only Mode
MiCOM P747 Chapter 7 - SCADA Communications READ ONLY MODE With IEC 61850 and Ethernet/Internet communication capabilities, security has become an important issue. In view of this, all MiCOM devices comply with the latest Cyber-Security (on page 273) standards. In addition to this, the device provides a facility to allow the user to enable or disable the physical interfaces.
Page 250: Iec 61850 Protocol
Chapter 7 - SCADA Communications MiCOM P747 • Read records (event, fault, disturbance) • Time Synchronisation • Change active setting group 11.3 IEC 61850 PROTOCOL If Read-Only Mode is enabled for the Ethernet interfacing with IEC 61850, the following commands are blocked at the interface: ●...
Page 251: Time Synchronisation
MiCOM P747 Chapter 7 - SCADA Communications TIME SYNCHRONISATION In modern protection schemes it is necessary to synchronise the IED's real time clock so that events from different devices can be time stamped and placed in chronological order. This is achieved in various ways depending on the chosen options and communication protocols.
Page 252: Demodulated Irig-B
Chapter 7 - SCADA Communications MiCOM P747 DEMODULATED IRIG-B IRIG stands for Inter Range instrumentation Group, which is a standards body responsible for standardising different time code formats. There are several different formats starting with IRIG-A, followed by IRIG-B and so on.
Page 253: Sntp
MiCOM P747 Chapter 7 - SCADA Communications SNTP SNTP is used to synchronise the clocks of computer systems over packet-switched, variable-latency data networks, such as IP. SNTP can be used as the time synchronisation method for models using IEC 61850 over Ethernet.
Page 254: Time Synchronsiation Using The Communication Protocols
Chapter 7 - SCADA Communications MiCOM P747 TIME SYNCHRONSIATION USING THE COMMUNICATION PROTOCOLS All communication protocols have in-built time synchronisation mechanisms. If neither IRIG-B nor SNTP is used to synchronise the devices, the time synchronisation mechanism within the relevant serial protocol is used.
Page 255: Communication Settings
MiCOM P747 Chapter 7 - SCADA Communications COMMUNICATION SETTINGS This section contains a complete table of the settings required to set up the device communication. Courier Text Default Setting Available Options Description COMMUNICATIONS This column contains settings for configuring the communications 0 = Courier, 1 = IEC870-5-103, RP1 Protocol...
Page 256 Chapter 7 - SCADA Communications MiCOM P747 Courier Text Default Setting Available Options Description 0=Standard IEC (Existing format) Modbus IEC Time Standard 1=Reverse IEC (Company agreed format) This controls the format of the time-date G12 data type. Modbus Only. 0 = Disabled, 1 = Monitor Blocking or 2 RP1 CS103Blcking Disabled = Command Blocking...
Page 257 MiCOM P747 Chapter 7 - SCADA Communications Courier Text Default Setting Available Options Description REAR PORT2 (RP2) This column contains configuration settings and information for RP2 RP2 Protocol Courier Not Settable This cell indicates which protocol is used on RP2 0 = Unsupported, 1 = Card Not Fitted, RP2 Card Status...
Page 258 Chapter 7 - SCADA Communications MiCOM P747 Courier Text Default Setting Available Options Description This setting defines how a failed or unfitted network link is reported. DNP3.0 over Ethernet versions only. SNTP PARAMETERS The settings in this sub-menu are for models using DNP3 over Ethernet. SNTP Server 1 0.0.0.0 Not Settable...
Page 259: Chapter 8 Redundant Ethernet
REDUNDANT ETHERNET CHAPTER 8...
Page 260 Chapter 8 - Redundant Ethernet MiCOM P747 P747-TM-EN-1 P747-TM-EN-1.1...
Page 261: Chapter Overview
MiCOM P747 Chapter 8 - Redundant Ethernet CHAPTER OVERVIEW Redundancy is transparent backup. It is required where a single point of failure cannot be tolerated, so is required in critical applications such as substation automation. Redundancy acts as an insurance policy, providing an alternative route if one route fails.
Page 262: Board Versions
Chapter 8 - Redundant Ethernet MiCOM P747 BOARD VERSIONS Each board combines Ethernet communications, with IRIG-B timing functionality. There is a choice of embedded protocols for the Ethernet communications, and two types of IRIG-B. Board options Board Part No. Compatible With Redundant Ethernet SHP, 2 multi-mode fibre ports + modulated IRIG-B ZN0071 001 C264-SWR212 and...
Page 263: Board Connections
MiCOM P747 Chapter 8 - Redundant Ethernet BOARD CONNECTIONS IRIG-B Link Fail Pin3 connector Pin 2 Pin 1 Link channel B Link channel A (green LED) (green LED) Activity channel Activity channel B A (yellow LED) (yellow LED) V01009 Figure 57: Board connectors IRIG-B Connector Available as a modulated or demodulated input.
Page 264: Redundancy Protocols
Chapter 8 - Redundant Ethernet MiCOM P747 REDUNDANCY PROTOCOLS The following redundancy protocols are available: ● PRP (Parallel Redundancy Protocol) ● RSTP (Rapid Spanning Tree Protocol) ● SHP (Self-Healing Protocol) ● DHP (Dual Homing Protocol) The protocol must be selected at the time of ordering. PARALLEL REDUNDANCY PROTOCOL (PRP) Power system companies have traditionally used proprietary protocols for redundant communications.
Page 265: Figure 58: Example Prp Redundant Network
MiCOM P747 Chapter 8 - Redundant Ethernet network card, printers, and IEDs with one network card are singly attached nodes. A SAN behind a RedBox appears like a DAN so is called a Virtual DAN (VDAN). LAN B LAN A REDUNDANCY VDAN VDAN...
Page 266: Rapid Spanning Tree Protocol (Rstp)
Chapter 8 - Redundant Ethernet MiCOM P747 MiCOM H382 SCADA or PACiS OI DS Agile gateways H600 switch H600 switch Ethernet Up to 6 links C264 * Px4x ** C264 H368 Ethernet Up to 4 links RS485 Bay level Bay level Bay level Type 1 Type 2...
Page 267: Self-Healing Protocol (Shp)
MiCOM P747 Chapter 8 - Redundant Ethernet Switch 1 Switch 2 Switch 1 Switch 2 IED 1 IED 2 IED 1 IED 2 Star connection with redundant ports Ring connection managed by RST P blocking function on upper switches managed by RSTP blocking function . and IEDs interconnected directly .
Page 268: Figure 62: Internal Architecture Of Ied, C264 Bay Computer And H36X Ethernet Switch
Chapter 8 - Redundant Ethernet MiCOM P747 Px4x IED bus Embedded Flash Memory Managed Switch Port MII Failsafe Self Healing Address Output Manager (SHM) Switch Relays 100 base FX Ethernet Primary Ring Primary Ring Rx primary (Rp) Tx primary (Ep) Tx secondary (Es) Rx secondary (Rs) Secondary Ring...
Page 269: Dual-Homing Protocol (Dhp)
MiCOM P747 Chapter 8 - Redundant Ethernet Primary Fibre Switch Switch Switch Rx (Ep) Tx (Ep) Tx (Es) Rx (Rs) Hx5x C264 Hx5x Secondary Fibre V01013 Figure 63: Redundant Ethernet ring architecture with IED, bay computer and Ethernet switches Primary Fibre Switch Switch Switch...
Page 270: Figure 65: Dual Homing Mechanism
Chapter 8 - Redundant Ethernet MiCOM P747 Network 1 Network 2 Optical star Optical star Alstom Alstom H63x H63x Dual homing Dual homing Dual homing SWD21x SWD21x SWD21x Modified frames from network 1 Modified frames from network 2 No modified frames V01015 Figure 65: Dual homing mechanism The H36x is a repeater with a standard 802.3 Ethernet switch, plus the DHM.
Page 271: Figure 66: Application Of Dual Homing Star At Substation Level
MiCOM P747 Chapter 8 - Redundant Ethernet MiCOM H382 SCADA or PACiS OI DS Agile gateways H600 switch H600 switch Ethernet Up to 6 links C264 * Px4x ** C264 H368 Ethernet Up to 4 links RS485 Bay level Bay level Bay level Type 1 Type 2...
Page 272: Generic Functions For Redundant Ethernet Boards
Chapter 8 - Redundant Ethernet MiCOM P747 GENERIC FUNCTIONS FOR REDUNDANT ETHERNET BOARDS The following functions apply to all redundant Ethernet protocols. FORWARDING The MiCOM ALSTOM Ethernet switch products support store and forward mode. The switch forwards messages with known addresses to the appropriate port. The messages with unknown addresses, the broadcast messages and the multicast messages are forwarded out to all ports except the source port.
Page 273: Snmp Mib Structure For Rstp, Dhp And Shp
MiCOM P747 Chapter 8 - Redundant Ethernet iso = 1 org = 3 dod = 6 internet = 1 mgmt = 2 private = 4 mib-2 = 1 enterprises = 1 system = 1 printers = 43 microsoft = 311 sysDescr = 1 E01033 Figure 67: SNMP MIB tree...
Page 274: Snmp Mib Structure For Prp
Chapter 8 - Redundant Ethernet MiCOM P747 Address Name Internet mgmt Mib-2 sysDescr sysUpTime sysName Remote Monitoring RMON statistics etherstat etherStatsEntry etherStatsUndersizePkts etherStatsOversizePkts etherStatsJabbers etherStatsCollisions etherStatsPkts64Octets etherStatsPkts65to127Octets etherStatsPkts128to255Octets etherStatsPkts256to511Octets etherStatsPkts512to1023Octets Redundant Ethernet Board MIB Structurearious SNMP client software tools can be used. Alstom Grid recommends using an SNMP MIB browser, which can perform the basic SNMP operations such as GET, GETNEXT and RESPONSE.
Page 275 MiCOM P747 Chapter 8 - Redundant Ethernet Address Name lreConfigurationInterfaceGroup lreConfigurationInterfaces lreInterfaceConfigTable lreInterfaceConfigEntry lreInterfaceConfigIndex lreRowStatus lreNodeType lreNodeName lreVersionName lreMacAddressA lreMacAddressB lreAdapterAdminStateA lreAdapterAdminStateB lreLinkStatusA lreLinkStatusB lreDuplicateDiscard lreTransparentReception lreHsrLREMode lreSwitchingEndNode lreRedBoxIdentity lreSanA lreSanB lreEvaluateSupervision lreNodesTableClear lreProxyNodeTableClear lreStatistics lreStatisticsInterfaceGroup lreStatisticsInterfaces lreInterfaceStatsTable lreInterfaceStatsIndex lreCntTotalSentA lreCntTotalSentB lreCntErrWrongLANA lreCntErrWrongLANB...
Page 276 Chapter 8 - Redundant Ethernet MiCOM P747 Address Name Internet mgmt mib-2 System sysDescr sysUpTime sysName sysServices interfaces ifTable ifEntry ifIndex ifDescr ifType ifMtu ifSpeed ifPhysAddress ifAdminStatus ifOpenStatus ifLastChange ifInOctets ifInUcastPkts ifInNUcastPkts ifInDiscards ifInErrors ifInUnknownProtos ifOutOctets ifOutUcastPkts ifOutNUcastPkts ifOutDiscards ifOutErrors ifOutQLen ifSpecific rmon...
Page 277: Simple Network Time Protocol (Sntp)
MiCOM P747 Chapter 8 - Redundant Ethernet Address Name etherStatsPkts etherStatsBroadcastPkts etherStatsMulticastPkts etherStatsCRCAlignErrors etherStatsUndersizePkts etherStatsOversizePkts etherStatsFragments etherStatsJabbers etherStatsCollisions etherStatsPkts64Octets etherStatsPkts65to127Octets etherStatsPkts128to255Octets etherStatsPkts256to511Octets etherStatsPkts512to1023Octets etherStatsPkts1024to1518Octets etherStatsOwner etherStatsStatus Various SNMP client software tools can be used. Alstom Grid recommends using an SNMP MIB browser, which can perform the basic SNMP operations such as GET, GETNEXT and RESPONSE.
Page 278: Configuring Ip Addresses
Chapter 8 - Redundant Ethernet MiCOM P747 CONFIGURING IP ADDRESSES An IP address is a logical address assigned to devices in a computer network that uses the Internet Protocol (IP) for communication between nodes. IP addresses are stored as binary numbers but they are represented using Decimal Dot Notation, where four sets of decimal numbers are separated by dots as follows: XXX.XXX.XXX.XXX For example:...
Page 279: Configuring The First Two Octets Of The Board Ip Address
MiCOM P747 Chapter 8 - Redundant Ethernet If using PRP, configure the IP address of the redundant Ethernet board using the PRP Configurator software. RSTP If using RSTP, configure the IP address of the redundant Ethernet board using the RSTP Configurator software and DIP switches on the board.
Page 280 Chapter 8 - Redundant Ethernet MiCOM P747 Wear a 1 MΩ earth strap and connect it to the earth (ground) point on the back of the IED. E01019 Lift the upper and lower flaps. Remove the six screws securing the front panel and pull the front panel outwards.
Page 281 MiCOM P747 Chapter 8 - Redundant Ethernet Press the levers either side of the connector to disconnect the ribbon cable from the front panel. E01021 Remove the redundant Ethernet board. Set the last octet of IP address using the DIP switches. The available range is 1 to 127.
Page 282: Prp Configurator
Chapter 8 - Redundant Ethernet MiCOM P747 PRP CONFIGURATOR The PRP Configurator tool is intended for MiCOM Px4x IEDs with redundant Ethernet using PRP (Parallel Redundancy Protocol). This tool is used to identify IEDs, configure the redundancy IP address, configure the SNTP IP address and configure the PRP parameters.
Page 283: Starting The Configurator
MiCOM P747 Chapter 8 - Redundant Ethernet STARTING THE CONFIGURATOR If you install S1 Agile, the Configurator is launched from the S1 Agile menu. Otherwise: Select the Configurator from the Windows Programs menu. The Login screen appears. For user mode login, enter the Login name as User and click OK with no password.
Page 284: Prp Configuration
Chapter 8 - Redundant Ethernet MiCOM P747 PRP CONFIGURATION To view or configure the PRP Parameters, from the main window, click the device address to select the device. The selected device MAC address appears highlighted. Click the PRP Config button. The PRP Config screen appears. To view the available parameters in the board that is connected, click the Get PRP Parameters button.
Page 285: Rstp Configurator
MiCOM P747 Chapter 8 - Redundant Ethernet RSTP CONFIGURATOR The RSTP Configurator tool is intended for MiCOM Px4x IEDs with redundant Ethernet using RSTP (Rapid Spanning Tree Protocol). This tool is used to identify IEDs, configure the redundancy IP address, configure the SNTP IP address and configure the RSTP parameters.
Page 286: Starting The Configurator
Chapter 8 - Redundant Ethernet MiCOM P747 STARTING THE CONFIGURATOR If you install S1 Agile, the Configurator is launched from the S1 Agile menu. Otherwise: Select the Configurator from the Windows Programs menu. The Login screen appears. For user mode login, enter the Login name as User and click OK with no password.
Page 287: Check For Connected Equipment
MiCOM P747 Chapter 8 - Redundant Ethernet CHECK FOR CONNECTED EQUIPMENT To check what devices are connected to the device being monitored: From the main window, select the device. Click the Equipment button. At the bottom of the main window, a box shows the ports where devices are connected and their MAC addresses.
Page 288: Port States
Chapter 8 - Redundant Ethernet MiCOM P747 8.8.3 PORT STATES This is used to see which ports of the board are enabled or disabled. From the main window, click the device address to select the device. The RSTP Config window appears.
Page 289: Switch Manager
MiCOM P747 Chapter 8 - Redundant Ethernet SWITCH MANAGER Switch Manager is used to manage Ethernet ring networks and MiCOM H35x-V2 and H36x-V2 SNMP facilities. It is a set of tools used to manage, optimize, diagnose and supervise your network. It also handles the version software of the switch.
Page 290: Setup
Chapter 8 - Redundant Ethernet MiCOM P747 Network IP address IP addressing is needed for time synchronization of Alstom switches and for SNMP management. Switch Manager is used to define IP addresses of Alstom switches. These addresses must be in the range of the system IP, depending on the IP mask of the engineering PC for substation maintenance.
Page 291: Check For Connected Equipment
MiCOM P747 Chapter 8 - Redundant Ethernet CHECK FOR CONNECTED EQUIPMENT To check what devices are connected to the device being monitored: From the main window, select the device. Click the Equipment button. At the bottom of the main window, a box shows the ports where devices are connected and their MAC addresses.
Page 292: End Of Session
Chapter 8 - Redundant Ethernet MiCOM P747 9.10 END OF SESSION To finish the session: In the main window, click the Quit button, a new screen appears. If a database backup is required, click Yes, a new screen appears. Click the ... button to browse the path. Enter the name in the text box. P747-TM-EN-1 P747-TM-EN-1.1...
Page 293: Chapter 9 Cyber-Security
CYBER-SECURITY CHAPTER 9...
Page 294 Chapter 9 - Cyber-Security MiCOM P747 P747-TM-EN-1 P747-TM-EN-1.1...
Page 295: Overview
MiCOM P747 Chapter 9 - Cyber-Security OVERVIEW In the past, substation networks were traditionally isolated and the protocols and data formats used to transfer information between devices were often proprietary. For these reasons, the substation environment was very secure against cyber-attacks. The terms used for this inherent type of security are: ●...
Page 296: The Need For Cyber-Security
Chapter 9 - Cyber-Security MiCOM P747 THE NEED FOR CYBER-SECURITY Cyber-security provides protection against unauthorised disclosure, transfer, modification, or destruction of information or information systems, whether accidental or intentional. To achieve this, there are several security requirements: ● Confidentiality (preventing unauthorised access to information) ●...
Page 297: Standards
MiCOM P747 Chapter 9 - Cyber-Security STANDARDS There are several standards, which apply to substation cyber-security. The standards currently applicable to Alstom Grid IEDs are NERC and IEEE1686. Standard Country Description NERC CIP (North American Electric Reliability Framework for the protection of the grid critical Cyber Assets Corporation) BDEW (German Association of Energy and Water Germany...
Page 298: Cip 002
Chapter 9 - Cyber-Security MiCOM P747 3.1.1 CIP 002 CIP 002 concerns itself with the identification of: ● Critical assets, such as overhead lines and transformers ● Critical cyber assets, such as IEDs that use routable protocols to communicate outside or inside the Electronic Security Perimeter;...
Page 299: Cip 007
MiCOM P747 Chapter 9 - Cyber-Security Power utility responsibilities: Alstom Grid's contribution: Provide physical security controls and perimeter monitoring. Alstom Grid cannot provide additional help with this aspect. Ensure that people who have access to critical cyber assets don’t have criminal records. 3.1.6 CIP 007 CIP 007 covers the following points:...
Page 300 Chapter 9 - Cyber-Security MiCOM P747 ● IED functions and features are assigned to different password levels. The assignment is fixed. ● The audit trail is recorded, listing events in the order in which they occur, held in a circular buffer. ●...
Page 301: Cyber-Security Implementation
MiCOM P747 Chapter 9 - Cyber-Security CYBER-SECURITY IMPLEMENTATION The Alstom Grid IEDs have always been and will continue to be equipped with state-of-the-art security measures. Due to the ever-evolving communication technology and new threats to security, this requirement is not static. Hardware and software security measures are continuously being developed and implemented to mitigate the associated threats and risks.
Page 302: Four-Level Access
Chapter 9 - Cyber-Security MiCOM P747 NERC compliant banner NERC Compliance NERC Compliance Warning Warning System Current Access Level Measurements System Voltage System Frequency Measurements System Power Plant Reference Measurements Description Date & Time V00403 Figure 71: Default display navigation FOUR-LEVEL ACCESS The menu structure contains four levels of access, three of which are password protected.
Page 303: Blank Passwords
MiCOM P747 Chapter 9 - Cyber-Security Level Meaning Read Operation Write Operation All items writeable at level 1. Setting Cells that change visibility (Visible/Invisible). Setting Values (Primary/Secondary) selector Commands: Read All All data and settings are readable. Reset Indication Write Some Poll Measurements Reset Demand Reset Statistics...
Page 304: Access Level Ddbs
Chapter 9 - Cyber-Security MiCOM P747 ● Passwords may or may not be NERC compliant ● Passwords may contain any ASCII character in the range ASCII code 33 (21 Hex) to ASCII code 122 (7A Hex) inclusive ● Only one password is required for all the IED interfaces 4.2.3 ACCESS LEVEL DDBS The 'Access level' cell is in the 'System data' column (address 00D0).
Page 305: Password Blocking
MiCOM P747 Chapter 9 - Cyber-Security NERC COMPLIANT P/WORD WAS SAVED If the password entered is not NERC-compliant, the user is required to actively confirm this, in which case the non-compliance is logged. If the entered password is not NERC compliant, the following text is displayed: NERC COMPLIANCE NOT MET CONFIRM? On confirmation, the non-compliant password is stored and the following acknowledgement message is...
Page 306: Password Recovery
Chapter 9 - Cyber-Security MiCOM P747 NOT ACCEPTED ENTRY IS BLOCKED A similar response occurs if you try to enter the password through a communications port. The parameters can then be configured using the Attempts Count, Attempts Timer and Blocking Timer settings in the SYSTEM CONFIG column.
Page 307: Password Encryption
MiCOM P747 Chapter 9 - Cyber-Security On this action, the following message is displayed: PASSWORDS HAVE BEEN SET TO DEFAULT The recovery password can be applied through any interface, local or remote. It will achieve the same result irrespective of which interface it is applied through. 4.4.2 PASSWORD ENCRYPTION The IED supports encryption for passwords entered remotely.
Page 308: Security Events Management
Chapter 9 - Cyber-Security MiCOM P747 The following protocols can be disabled: ● IEC 61850 (IEC61850 setting) ● DNP3 Over Ethernet (DNP3 OE setting) ● Courier Tunnelling (Courier Tunnel setting) Note: If any of these protocols are enabled or disabled, the Ethernet card will reboot. SECURITY EVENTS MANAGEMENT To implement NERC-compliant cyber-security, a range of Event records need to be generated.
Page 309 MiCOM P747 Chapter 9 - Cyber-Security Event Value Display DNP STNG D/LOAD DNP SETTINGS DOWNLOADED BY {int} TRACE DAT D/LOAD TRACE DATA DOWNLOADED BY {int} IED CONFG D/LOAD IEC61850 CONFIG DOWNLOADED BY {int} USER CRV D/LOAD USER CURVES DOWNLOADED BY {int} GROUP {crv} PSL CONFG D/LOAD PSL CONFIG DOWNLOADED BY {int} GROUP {grp}...
Page 310: Logging Out
Chapter 9 - Cyber-Security MiCOM P747 ● n is the new access level (0, 1, 2, 3) ● p is the password level (1, 2, 3) ● nov is the number of events (1 – nnn) Each new event has an incremented unique number, therefore missing events appear as ‘gap’ in the sequence.
Page 311: Cyber-Security Settings
MiCOM P747 Chapter 9 - Cyber-Security CYBER-SECURITY SETTINGS General security settings, which are necessary for cyber-security implementation can be found in the SYSTEM DATA column as follows: Menu Text Default Setting Available Options Description SYSTEM DATA This column contains general system settings and records. Password ASCII text (characters 33 to 122 inclusive) This setting sets the device default password...
Page 312 Chapter 9 - Cyber-Security MiCOM P747 Menu Text Default Setting Available Options Description Front Port Enabled 0 = Disabled or 1 = Enabled This setting enables or disables the physical Front Port. Rear Port 1 Enabled 0 = Disabled or 1 = Enabled This setting enables or disables the primary physical rear port (RP1).
Page 313: Chapter 10 Settings Application Software
SETTINGS APPLICATION SOFTWARE CHAPTER 10...
Page 314 Chapter 10 - Settings Application Software MiCOM P747 P747-TM-EN-1 P747-TM-EN-1.1...
Page 315: Introduction To The Settings Application Software
MiCOM P747 Chapter 10 - Settings Application Software INTRODUCTION TO THE SETTINGS APPLICATION SOFTWARE The settings application software used in this range of IEDs is called MiCOM S1 Agile. It is a collection of software tools, which is used for managing all aspects of the IEDs. This chapter provides a brief summary of each software tool.
Page 316: Quick System Guide
Chapter 10 - Settings Application Software MiCOM P747 Start Start Data Model Manager Download data models Start S1 Agile Open Click System Offline system Explorer tile then Open system or Online or offline? New System tile or open file? Open System tile Online Open file From menu bar...
Page 317: Download Data Models
MiCOM P747 Chapter 10 - Settings Application Software 1.1.2 DOWNLOAD DATA MODELS Close S1 Agile and run the Data Model Manager. Follow the on-screen instructions. 1.1.3 SET UP A SYSTEM Click the System Explorer tile then the New System tile or Open System tile. From the menu bar select View then System Explorer.
Page 318: Extract A Dnp3 File From A Device
Chapter 10 - Settings Application Software MiCOM P747 Note: If you extract a PSL file from a device that does not store the position information of the PSL scheme elements, the layout of the scheme may not be the same as originally drawn. Also the Original and Logic Only CRC values may not match the original scheme.
Page 319: Curve Tool
MiCOM P747 Chapter 10 - Settings Application Software CURVE TOOL The User Programmable Curve Tool (UPCT) allows you to create user-defined curves and to download and upload these curves to and from the IED. You can use this tool to create programmable operate and reset curves.
Page 320: Device (Menu) Text Editor
Chapter 10 - Settings Application Software MiCOM P747 Wavewin provides the following functions. ● File management ● Query management ● Log management ● Report generation ● Sequence of Events(SOE) ● Conversion of COMTRADE files ● Waveform summary 1.10 DEVICE (MENU) TEXT EDITOR The Menu Text Editor enables you to modify and replace the menu texts held in MiCOM Px4x IEDs.
Page 321: Switch Manager
MiCOM P747 Chapter 10 - Settings Application Software 1.15 SWITCH MANAGER Switch Manager is used to manage Ethernet ring networks and MiCOM H35x-V2 and H36x-V2 SNMP facilities. It is a set of tools used to manage, optimize, diagnose and supervise your network. It also handles the version software of the switch.
Page 322 Chapter 10 - Settings Application Software MiCOM P747 P747-TM-EN-1 P747-TM-EN-1.1...
Page 323: Chapter 11 Busbar Commissioning Tool
BUSBAR COMMISSIONING TOOL CHAPTER 11...
Page 324 Chapter 11 - Busbar Commissioning Tool MiCOM P747 P747-TM-EN-1 P747-TM-EN-1.1...
Page 325: P747 Busbar Commissioning Tool (Remote Hmi)
MiCOM P747 Chapter 11 - Busbar Commissioning Tool P747 BUSBAR COMMISSIONING TOOL (REMOTE HMI) This tool is intended for busbar commissioning. It allows you to create a scheme and display the measured data. It consists of a scheme editor and a monitor that shows protection data in real time. The scheme editor allows you to quickly draw schemes from a library of elements, then validate the scheme.
Page 326: Scheme Editor
Chapter 11 - Busbar Commissioning Tool MiCOM P747 SCHEME EDITOR The Scheme Editor allows you to quickly draw schemes from a library of elements, then validate the scheme. To select your language, select File then Options then Language. To create, open, save or print a scheme, select the File tab. CONNECTIONS To enable connection bridges: Select File then Options then Diagram Settings.
Page 327: Remove Connection
MiCOM P747 Chapter 11 - Busbar Commissioning Tool 2.1.3 REMOVE CONNECTION To remove a connection: Select a connection. Pess the Delete key or click the Remove icon. SCHEME ELEMENTS The following table shows the number of elements allowed in a scheme. Element Minimum number Maximum number...
Page 328: Add A Label To An Element
Chapter 11 - Busbar Commissioning Tool MiCOM P747 2.3.1 ADD A LABEL TO AN ELEMENT To add a label to an element: Double-click the element and select a label from the drop-down list. If many labels are available it can sometimes be difficult to find a specific one from the drop-down list. A search function helps you to find the one you need.
Page 329: Protection Data Monitor
MiCOM P747 Chapter 11 - Busbar Commissioning Tool PROTECTION DATA MONITOR The Protection Data Monitor shows the status of DDBs and measured data in the scheme. To start the Protection Data Monitor: Select File then Save or Save As to save the scheme. Click the icon Switch to Dynamic Synoptic Mode.
Page 330 Chapter 11 - Busbar Commissioning Tool MiCOM P747 P747-TM-EN-1 P747-TM-EN-1.1...
Page 331: Chapter 12 Scheme Logic
SCHEME LOGIC CHAPTER 12...
Page 332 Chapter 12 - Scheme Logic MiCOM P747 P747-TM-EN-1 P747-TM-EN-1.1...
Page 333: Chapter Overview
MiCOM P747 Chapter 12 - Scheme Logic CHAPTER OVERVIEW Alstom Grid products are supplied with pre-loaded Fixed Scheme Logic (FSL) and Programmable Scheme Logic (PSL). The FSL schemes cannot be modified. They have been individually designed to suit the model in question.
Page 334: Introduction To The Scheme Logic
Chapter 12 - Scheme Logic MiCOM P747 INTRODUCTION TO THE SCHEME LOGIC The Scheme Logic is a functional module within the IED, through which all mapping of inputs to outputs is handled. The scheme logic can be split into two parts; the Fixed Scheme Logic (FSL) and the Programmable Scheme Logic (PSL).
Page 335 MiCOM P747 Chapter 12 - Scheme Logic ● Control inputs: Software inputs for controlling functionality ● Goose inputs: Messages from other devices via the IEC 61850 interface (not on all models) ● Scheme Logic inputs: Inputs from the protection functions (SL inputs are protection function outputs) The outputs from the scheme logic are: ●...
Page 336: Fixed Scheme Logic
Chapter 12 - Scheme Logic MiCOM P747 FIXED SCHEME LOGIC This section contains logic diagrams of the fixed scheme logic, which covers all of the device models. You must be aware that some models do not contain all the functionality described in this section. P747-TM-EN-1 P747-TM-EN-1.1...
Page 337: Any Start Logic
MiCOM P747 Chapter 12 - Scheme Logic ANY START LOGIC I>1 Start I>2 Start I>3 Start I>4 Start I>5 Start I>6 Start I2>1 Start I2>2 Start I2>3 Start I2>4 Start IN1>1 Start IN1>2 Start IN1>3 Start IN1>4 Start IN2>1 Start IN2>2 Start IN2>3 Start IN2>4 Start...
Page 338: Vts Acceleration Indication Logic
Chapter 12 - Scheme Logic MiCOM P747 VTS ACCELERATION INDICATION LOGIC Trip Command In VTS Acc Ind Key: External DDB Signal AND gate & OR gate V02001 Figure 75: VTS Acceleration Indication Logic CB FAIL SEF PROTECTION LOGIC ISEF>1 Trip ISEF>2 Trip CBF SEF Trip -1 ISEF>3 Trip...
Page 339: Cb Fail Non Current Protection Logic
MiCOM P747 Chapter 12 - Scheme Logic CB FAIL NON CURRENT PROTECTION LOGIC V<1 Trip V<2 Trip V<3 Trip V>1 Trip V>2 Trip V>3 Trip VN>1 Trip VN>2 Trip VN>3 Trip V2> Trip Power>1 3Ph Trip Power>1 A Trip Power>1 B Trip Power>1 C Trip Power>2 3Ph Trip Power>2 A Trip...
Page 340: Composite Earth Fault Start Logic
Chapter 12 - Scheme Logic MiCOM P747 Figure 77: CB Fail Non Current Protection Logic COMPOSITE EARTH FAULT START LOGIC IN1>1 Start IN1>2 Start IN1>3 Start IN1>4 Start IN2>1 Start IN2>2 Start IN2>3 Start IN2>4 Start Start N ISEF>1 Start ISEF>2 Start ISEF>3 Start ISEF>4 Start...
Page 341: Programmable Scheme Logic
MiCOM P747 Chapter 12 - Scheme Logic PROGRAMMABLE SCHEME LOGIC This section contains tables and logic diagrams of the default programmable scheme logic, which covers all of the device models. You must be aware that some models do not contain all the functionality described in this section.
Page 342: Trip Output Mappings
Chapter 12 - Scheme Logic MiCOM P747 TRIP OUTPUT MAPPINGS I>1 Trip I>2 Trip I>3 Trip I>4 Trip I>5 Trip I>6 Trip I2>1 Trip I2>2 Trip I2>3 Trip I2>4 Trip IN1>1 Trip IN1>2 Trip IN1>3 Trip IN1>4 Trip IN2>1 Trip IN2>2 Trip IN2>3 Trip IN2>4 Trip...
Page 343: Opto-Input Mappings
MiCOM P747 Chapter 12 - Scheme Logic OPTO-INPUT MAPPINGS Input L1 Block AR Input L2 SG Select 1x Input L3 IN1>3 Timer Block IN1>4 Timer Block Input L4 I>3 Timer Block I>4 Timer Block Input L5 CB Healthy Input L6 Ext.
Page 344: Output Relay Mappings
Chapter 12 - Scheme Logic MiCOM P747 OUTPUT RELAY MAPPINGS IN/SEF> Blk Start Output R1 I> Block Start Output R2 Trip Comand Out Output R3 SG-opto Invalid F out of Range VT Fail Alarm CT Fail Alarm CB Fail Alarm I^ Maint Alarm CB Ops Maint Alarm CB Op Time Maint...
Page 345: Led Mappings
MiCOM P747 Chapter 12 - Scheme Logic LED MAPPINGS Trip Command Out LED1 Red Any Start LED1 Grn CB Open 3 ph LED2 Red CB Closed 3 ph LED2 Grn AR In Progress LED3 Red Successful Close LED3 Grn AR Lockout LED4 Red AR In Service LED4 Grn...
Page 346: Circuit Breaker Mapping
Chapter 12 - Scheme Logic MiCOM P747 CIRCUIT BREAKER MAPPING CB Closed 3 ph CB in Service Key: External DDB Signal V02026 Figure 87: Circuit Breaker mapping FAULT RECORD TRIGGER MAPPING Output R3 Fault Rec Trig Key: External DDB Signal V02027 Figure 88: Fault Record Trigger mapping 4.10...
Page 347 MiCOM P747 Chapter 12 - Scheme Logic 18 Nov 2002 08:59:32.047 Grp(n) PSL ID: This cell displays a unique ID number for the downloaded PSL scheme. Example: Grp. 1 PSL ID - 2062813232 The complete Settings table is shown below: Menu Text Default Setting Available Options...
Page 348 Chapter 12 - Scheme Logic MiCOM P747 P747-TM-EN-1 P747-TM-EN-1.1...
Page 349: Chapter 13 Installation
INSTALLATION CHAPTER 13...
Page 350 Chapter 13 - Installation MiCOM P747 P747-TM-EN-1 P747-TM-EN-1.1...
Page 351: Chapter Overview
MiCOM P747 Chapter 13 - Installation CHAPTER OVERVIEW This chapter provides information about installing the product. This chapter contains the following sections: Chapter Overview Handling the Goods Mounting the Device Cables and Connectors Case Dimensions P747-TM-EN-1 P747-TM-EN-1.1...
Page 352: Handling The Goods
Chapter 13 - Installation MiCOM P747 HANDLING THE GOODS Our products are of robust construction but require careful treatment before installation on site. This section discusses the requirements for receiving and unpacking the goods, as well as associated considerations regarding product care and personal safety. Caution: Before lifting or moving the equipment you should be familiar with the Safety Information chapter of this manual.
Page 353: Mounting The Device
MiCOM P747 Chapter 13 - Installation MOUNTING THE DEVICE The products are dispatched either individually or as part of a panel or rack assembly. Individual products are normally supplied with an outline diagram showing the dimensions for panel cut-outs and hole centres. The products are designed so the fixing holes in the mounting flanges are only accessible when the access covers are open.
Page 354: Rack Mounting
Chapter 13 - Installation MiCOM P747 Caution: Do not fasten products with pop rivets because this makes them difficult to remove if repair becomes necessary. If the product is mounted on a BS EN60529 IP52 compliant panel, fit a metallic sealing strip between adjoining products (part no GN2044 001) and fit a sealing ring around the complete assembly, according to the following table.
Page 355: Figure 91: Rack Mounting Of Products
MiCOM P747 Chapter 13 - Installation Figure 91: Rack mounting of products Products can be mechanically grouped into single tier (4U) or multi-tier arrangements using the rack frame. This enables schemes using products from different product ranges to be pre-wired together before mounting.
Page 356: Cables And Connectors
Chapter 13 - Installation MiCOM P747 CABLES AND CONNECTORS This section describes the type of wiring and connections that should be used when installing the device. For pin-out details please refer to the Hardware Design chapter or the wiring diagrams. Caution: Before carrying out any work on the equipment you should be familiar with the Safety Section and the ratings on the equipment’s rating label.
Page 357: Power Supply Connections
MiCOM P747 Chapter 13 - Installation Warning: For safety reasons always fit an insulating sleeve over the ring terminal. POWER SUPPLY CONNECTIONS These should be wired with 1.5 mm PVC insulated multi-stranded copper wire terminated with M4 ring terminals. The wire should have a minimum voltage rating of 300 V RMS. Caution: Protect the auxiliary power supply wiring with a maximum 16 A high rupture capacity (HRC) type NIT or TIA fuse.
Page 358: Voltage Transformer Connections
Chapter 13 - Installation MiCOM P747 Note: For 5A CT secondaries, we recommend using 2 x 2.5 mm PVC insulated multi-stranded copper wire. VOLTAGE TRANSFORMER CONNECTIONS Voltage transformers should be wired with 2.5 mm PVC insulated multi-stranded copper wire terminated with M4 ring terminals.
Page 359: Ethernet Metallic Connections
MiCOM P747 Chapter 13 - Installation 4.11 ETHERNET METALLIC CONNECTIONS If the device has a metallic Ethernet connection, it can be connected to either a 10Base-T or a 100Base-TX Ethernet hub. Due to noise sensitivity, we recommend this type of connection only for short distance connections, ideally where the products and hubs are in the same cubicle.
Page 360: Case Dimensions
Chapter 13 - Installation MiCOM P747 CASE DIMENSIONS CASE DIMENSIONS 80TE E01410 Figure 93: 80TE case dimensions P747-TM-EN-1 P747-TM-EN-1.1...
Page 361: Chapter 14 Commissioning Instructions
COMMISSIONING INSTRUCTIONS CHAPTER 14...
Page 362 Chapter 14 - Commissioning Instructions MiCOM P747 P747-TM-EN-1 P747-TM-EN-1.1...
Page 363: Chapter Overview
MiCOM P747 Chapter 14 - Commissioning Instructions CHAPTER OVERVIEW This chapter contains the following sections: Chapter Overview General Guidelines Commissioning Test Menu Commissioning Equipment Product Checks Setting Checks Busbar Protection Checks Onload Checks Final Checks Commissioning Test Settings P747-TM-EN-1 P747-TM-EN-1.1...
Page 364: General Guidelines
Chapter 14 - Commissioning Instructions MiCOM P747 GENERAL GUIDELINES Alstom Grid IEDs are self-checking devices and will raise an alarm in the unlikely event of a failure. This is why the commissioning tests are less extensive than those for non-numeric electronic devices or electro- mechanical relays.
Page 365: Commissioning Test Menu
MiCOM P747 Chapter 14 - Commissioning Instructions COMMISSIONING TEST MENU The IED provides several test facilities under the COMMISSION TESTS menu heading. There are menu cells that allow you to monitor the status of the opto-inputs, output relay contacts, internal Digital Data Bus (DDB) signals and user-programmable LEDs.
Page 366: Test Pattern Cell
Chapter 14 - Commissioning Instructions MiCOM P747 TEST PATTERN CELL The Test Pattern cell is used to select the output relay contacts to be tested when the Contact Test cell is set to Apply Test. The cell has a binary string with one bit for each user-configurable output contact, which can be set to '1' to operate the output and '0' to not operate it.
Page 367: Using A Monitor Port Test Box
MiCOM P747 Chapter 14 - Commissioning Instructions Monitor/Download Port Pin The signal ground is available on pins 18, 19, 22 and 25. Caution: The monitor/download port is not electrically isolated against induced voltages on the communications channel. It should therefore only be used for local communications.
Page 368: Commissioning Equipment
Chapter 14 - Commissioning Instructions MiCOM P747 COMMISSIONING EQUIPMENT MINIMUM EQUIPMENT REQUIRED As a minimum, the following equipment is required: ● Multifunctional current and voltage injection test set (where applicable) ● Multimeter with suitable AC current range, and DC voltage ranges of 0 - 440 V and 0 - 250 V respectively ●...
Page 369: Product Checks
MiCOM P747 Chapter 14 - Commissioning Instructions PRODUCT CHECKS These product checks are designed to ensure that the device has not been physically damaged prior to commissioning, is functioning correctly and that all input quantity measurements are within the stated tolerances.
Page 370: Visual Inspection
Chapter 14 - Commissioning Instructions MiCOM P747 5.1.1 VISUAL INSPECTION Warning: Check the rating information under the top access cover on the front of the IED. Warning: Check that the IED being tested is correct for the line or circuit. Warning: Record the circuit reference and system details.
Page 371: External Wiring
MiCOM P747 Chapter 14 - Commissioning Instructions 5.1.4 EXTERNAL WIRING Caution: Check that the external wiring is correct according to the relevant IED and scheme diagrams. Ensure that phasing/phase rotation appears to be as expected. 5.1.5 WATCHDOG CONTACTS Using a continuity tester, check that the Watchdog contacts are in the following states: Terminals De-energised contact 11 - 12 on power supply board...
Page 372: Watchdog Contacts
Chapter 14 - Commissioning Instructions MiCOM P747 The following group of tests verifies that the IED hardware and software is functioning correctly and should be carried out with the supply applied to the IED. 5.2.1 WATCHDOG CONTACTS Using a continuity tester, check that the Watchdog contacts are in the following states: Terminals De-energised contact 11 - 12 on power supply board...
Page 373: Test Leds
MiCOM P747 Chapter 14 - Commissioning Instructions Once the IRIG-B signal is active, adjust the time offset of the universal co coordinated time (satellite clock time) on the satellite clock equipment so that local time is displayed. Check that the time, date and month are correct in the Date/Time cell. The IRIG-B signal does not contain the current year so it will need to be set manually in this cell.
Page 374: Test Output Relays
Chapter 14 - Commissioning Instructions MiCOM P747 If you are using the Settings Application Software tool you can check the physical changes of the equipment status directly in your topology scheme. 5.2.9 TEST OUTPUT RELAYS This test checks that all the output relays are functioning correctly. Ensure that the IED is still in test mode by viewing the Test Mode cell in the COMMISSION TESTS column.
Page 375: Figure 94: Rp1 Physical Connection
MiCOM P747 Chapter 14 - Commissioning Instructions Figure 94: RP1 physical connection For K-Bus applications, pins 17 and 18 are not polarity sensitive and it does not matter which way round the wires are connected. EIA(RS)485 is polarity sensitive, so you must ensure the wires are connected the correct way round (pin 18 is positive, pin 17 is negative).
Page 376: Test Serial Communication Port Rp2
Chapter 14 - Commissioning Instructions MiCOM P747 Fibre Connection Some models have an optional fibre optic communications port fitted (on a separate communications board). The communications port to be used is selected by setting the Physical Link cell in the COMMUNICATIONS column, the values being Copper or K-Bus for the RS485/K-bus port and Fibre Optic for the fibre optic port.
Page 377: Test Voltage Inputs
MiCOM P747 Chapter 14 - Commissioning Instructions The measurement accuracy of the IED is +/- 1%. However, an additional allowance must be made for the accuracy of the test equipment being used. 5.2.14 TEST VOLTAGE INPUTS This test verifies that the voltage measurement inputs are configured correctly. Apply rated voltage to each voltage transformer input in turn Check its magnitude using a multimeter or test set readout.
Page 378: Setting Checks
Chapter 14 - Commissioning Instructions MiCOM P747 SETTING CHECKS The setting checks ensure that all of the application-specific settings (both the IED’s function and programmable scheme logic settings) have been correctly applied. Note: If applicable, the trip circuit should remain isolated during these checks to prevent accidental operation of the associated circuit breaker.
Page 379 MiCOM P747 Chapter 14 - Commissioning Instructions Press the Enter key to confirm the new setting value or the Clear key to discard it. The new setting is automatically discarded if it is not confirmed within 15 seconds. For protection group settings and disturbance recorder settings, the changes must be confirmed before they are used.
Page 380: Busbar Protection Checks
Chapter 14 - Commissioning Instructions MiCOM P747 BUSBAR PROTECTION CHECKS There is no need to check every protection function. However, it is necessary to test both a simple protection function on one feeder and the complete system. It is important to use the correct configuration topology and test specification. The test specification must also be complete.
Page 381: Check The Operating Time
MiCOM P747 Chapter 14 - Commissioning Instructions CHECK THE OPERATING TIME Check that the operating time recorded by the timer is within the setting in the tDiff cell. Allowance must be made for the accuracy of the test equipment being used. Note: For Definite Time characteristics there is an additional delay of up to 0.02 seconds.
Page 382: Onload Checks
Chapter 14 - Commissioning Instructions MiCOM P747 ONLOAD CHECKS Onload checks can only be carried out if there are no restrictions preventing the energisation of the plant, and the other devices in the group have already been commissioned. Remove all test leads and temporary shorting links, then replace any external wiring that has been removed to allow testing.
Page 383: On-Load Busbar Differential Test
MiCOM P747 Chapter 14 - Commissioning Instructions values should be within 1% of the expected values, plus an additional allowance for the accuracy of the test equipment being used. ON-LOAD BUSBAR DIFFERENTIAL TEST This test ensures the busbar differential protection function has the correct load conditions. For this test you must first know the actual direction of current flow in the complete system.
Page 384: Final Checks
Chapter 14 - Commissioning Instructions MiCOM P747 FINAL CHECKS Remove all test leads and temporary shorting leads. If you have had to disconnect any of the external wiring in order to perform the wiring verification tests, replace all wiring, fuses and links in accordance with the relevant external connection or scheme diagram.
Page 385: Commissioning Test Settings
MiCOM P747 Chapter 14 - Commissioning Instructions COMMISSIONING TEST SETTINGS Courier Text Default Setting Available Options Description COMMISSION TESTS This column contains settings for the commissioning tests setup Opto I/P Status Not Settable This cell displays the status of the fist set of available opto-inputs. Opto I/P Status2 Not Settable This cell displays the status of the second set of available opto-inputs.
Page 386 Chapter 14 - Commissioning Instructions MiCOM P747 Courier Text Default Setting Available Options Description This cell allows you to define the zones in which you want to block the current differential protection and circuit breaker fail function. This may be during normal operation or to perform secondary injection testing. All other protection functions are operational.
Page 387: Chapter 15 Maintenance And Troubleshooting
MAINTENANCE AND TROUBLESHOOTING CHAPTER 15...
Page 388 Chapter 15 - Maintenance and Troubleshooting MiCOM P747 P747-TM-EN-1 P747-TM-EN-1.1...
Page 389: Chapter Overview
MiCOM P747 Chapter 15 - Maintenance and Troubleshooting CHAPTER OVERVIEW The Maintenance and Troubleshooting chapter provides details of how to maintain and troubleshoot products based on the Px4x and P40Agile platforms. Always follow the warning signs in this chapter. Failure to do so may result injury or defective equipment.
Page 390: Maintenance
Chapter 15 - Maintenance and Troubleshooting MiCOM P747 MAINTENANCE MAINTENANCE CHECKS In view of the critical nature of the application, Alstom Grid products should be checked at regular intervals to confirm they are operating correctly. Alstom Grid products are designed for a life in excess of 20 years. The devices are self-supervising and so require less maintenance than earlier designs of protection devices.
Page 391: Replacing The Device
MiCOM P747 Chapter 15 - Maintenance and Troubleshooting REPLACING THE DEVICE If your product should develop a fault while in service, depending on the nature of the fault, the watchdog contacts will change state and an alarm condition will be flagged. In the case of a fault, you can replace either the complete device or just the faulty PCB, identified by the in-built diagnostic software.
Page 392: Repairing The Device
Chapter 15 - Maintenance and Troubleshooting MiCOM P747 Remove the terminal block screws that fasten the device to the panel and rack. These are the screws with the larger diameter heads that are accessible when the access covers are fitted and open. If the top and bottom access covers have been removed, some more screws with smaller diameter heads are made accessible.
Page 393: Removing The Front Panel
MiCOM P747 Chapter 15 - Maintenance and Troubleshooting REMOVING THE FRONT PANEL Warning: Before removing the front panel to replace a PCB, you must first remove the auxiliary power supply and wait 5 seconds for the internal capacitors to discharge. You should also isolate voltage and current transformer connections and trip circuit.
Page 394: Replacing The Main Processor Board
Chapter 15 - Maintenance and Troubleshooting MiCOM P747 2.5.1 REPLACING THE MAIN PROCESSOR BOARD The main processor board is situated in the front panel. This board contains application-specific settings in its non-volatile memory. You may wish to take a backup copy of these settings. This could save time in the re-commissioning process.
Page 395: Replacement Of The Input Module
MiCOM P747 Chapter 15 - Maintenance and Troubleshooting To replace a faulty communications board: Remove front panel. Disconnect all connections at the rear. The board is secured in the relay case by two screws, one at the top and another at the bottom. Remove these screws carefully as they are not captive in the rear panel.
Page 396: Replacement Of The Power Supply Board
Chapter 15 - Maintenance and Troubleshooting MiCOM P747 2.5.4 REPLACEMENT OF THE POWER SUPPLY BOARD Caution: Before removing the front panel, you should be familiar with the contents of the Safety Information section of this guide or the Safety Guide SFTY/4LM, as well as the ratings on the equipment’s rating label.
Page 397: Changing The Battery
MiCOM P747 Chapter 15 - Maintenance and Troubleshooting Although it is possible to carry out recalibration on site, this requires special test equipment and software. We therefore recommend that the work be carried out by the manufacturer, or entrusted to an approved service centre.
Page 398: Troubleshooting
Chapter 15 - Maintenance and Troubleshooting MiCOM P747 TROUBLESHOOTING SELF-DIAGNOSTIC SOFTWARE The device includes several self-monitoring functions to check the operation of its hardware and software while in service. If there is a problem with the hardware or software, it should be able to detect and report the problem, and attempt to resolve the problem by performing a reboot.
Page 399: Out Of Service Led On At Power-Up
MiCOM P747 Chapter 15 - Maintenance and Troubleshooting Test Check Action Error Code Identification These messages indicate that a problem has been detected on the IED’s The following text messages (in English) are displayed if a main processor board in the front panel. fundamental problem is detected, preventing the system from booting: Bus Fail –...
Page 400: Error Code During Operation
Chapter 15 - Maintenance and Troubleshooting MiCOM P747 Test Check Action The VT type field in the model number is incorrect (no VTs fitted) ERROR CODE DURING OPERATION The IED performs continuous self-checking. If the IED detects an error it displays an error message, logs a maintenance record and after a short delay resets itself.
Page 401: Incorrect Analogue Signals
MiCOM P747 Chapter 15 - Maintenance and Troubleshooting If the device does not correctly read the opto-input state, test the applied signal. Verify the connections to the opto-input using the wiring diagram and the nominal voltage settings in the OPTO CONFIG column. To do this: Select the nominal voltage for all opto-inputs by selecting one of the five standard ratings in the Global Nominal V cell.
Page 402: Repair And Modification Procedure
Chapter 15 - Maintenance and Troubleshooting MiCOM P747 REPAIR AND MODIFICATION PROCEDURE Please follow these steps to return an Automation product to us: Get the Repair and Modification Return Authorization (RMA) form An electronic version of the RMA form is available from the following web page: http://www.alstom.com/grid/productrepair/ Fill in the RMA form Fill in only the white part of the form.
Page 403: Chapter 16 Technical Specifications
TECHNICAL SPECIFICATIONS CHAPTER 16...
Page 404 Chapter 16 - Technical Specifications MiCOM P747 P747-TM-EN-1 P747-TM-EN-1.1...
Page 405: Chapter Overview
MiCOM P747 Chapter 16 - Technical Specifications CHAPTER OVERVIEW This chapter describes the technical specifications of the product. This chapter contains the following sections: Chapter Overview Interfaces Busbar Protection Functions Performance of Monitoring and Control Functions Measurements and Recording Standards Compliance Mechanical Specifications Ratings Environmental Conditions...
Page 406: Interfaces
Chapter 16 - Technical Specifications MiCOM P747 INTERFACES FRONT SERIAL PORT Front serial port (SK1) For local connection to laptop for configuration purposes Standard EIA(RS)232 Designation Connector 9 pin D-type female connector Isolation Isolation to ELV level Protocol Courier Constraints Maximum cable length 15 m DOWNLOAD/MONITOR PORT Front download port (SK2)
Page 407: Redundant Ethernet Ports
MiCOM P747 Chapter 16 - Technical Specifications REAR SERIAL PORT 2 Optional rear serial port (RP2 /SK4) For SCADA communications (multi-drop) Standard EIA(RS)485, K-bus, EIA(RS)232 Designation Connector 9 pin D-type female connector Cable Screened twisted pair (STP) Supported Protocols Courier Isolation Isolation to SELV level Constraints...
Page 408: Rear Ethernet Port Copper
Chapter 16 - Technical Specifications MiCOM P747 IRIG-B Interface (Modulated) Isolation Isolation to SELV level Constraints Maximum cable length 10 m Input signal peak to peak, 200 mV to 20 mV Input impedance 6 k ohm at 1000 Hz Accuracy <...
Page 409: 100 Base Fx Transmitter Characteristics
MiCOM P747 Chapter 16 - Technical Specifications 2.10.2 100 BASE FX TRANSMITTER CHARACTERISTICS Parameter Min. Typ. Max. Unit Output Optical Power BOL 62.5/125 µm -16.8 dBm avg. NA = 0.275 Fibre EOL Output Optical Power BOL 50/125 µm -22.5 -20.3 dBm avg.
Page 410: Busbar Protection Functions
Chapter 16 - Technical Specifications MiCOM P747 BUSBAR PROTECTION FUNCTIONS BUSBAR CIRCUITRY FAULT PROTECTION Accuracy Pick-up (IDMT) Setting +/-5%, or 20 mA, whichever is greater Pick-up (DT) Setting +/-5%, or 20 mA, whichever is greater Drop-off (IDMT and DT) > 0.95 x setting +/-5% or 20 mA, whichever is greater For 50 Hz: 8 ms (min), 12 ms (typical) at 3.5 ×...
Page 411: Earth Fault Protection
MiCOM P747 Chapter 16 - Technical Specifications EARTH FAULT PROTECTION Measured Pick-up (IDMT and DT) Setting +/-5%, or 20 mA, whichever is greater Drop-off (IDMT and DT) > 0.95 x setting +/-5% or 20 mA, whichever is greater Min. trip level (IDMT elements) 1.05 ×...
Page 412: Performance Of Monitoring And Control Functions
Chapter 16 - Technical Specifications MiCOM P747 PERFORMANCE OF MONITORING AND CONTROL FUNCTIONS VOLTAGE TRANSFORMER SUPERVISION Fast block operation < 25 ms Fast block reset < 40 ms Time delay +/- 2% or 40 ms, whichever is greater PSL TIMERS Output conditioner timer Setting +/- 2% or 50 ms, whichever is greater Dwell conditioner timer...
Page 413: Measurements And Recording
MiCOM P747 Chapter 16 - Technical Specifications MEASUREMENTS AND RECORDING GENERAL General Measurement Accuracy General measurement accuracy Typically +/- 1%, but +/- 0.5% between 0.2 - 2 In/Vn Phase 0° to 360° +/- 5.0% Current (0.05 to 3 In) +/- 1.0% of reading, or 4mA (1A input), or 20mA (5A input) Voltage (0.05 to 2 Vn) +/- 1.0% of reading Frequency (40 to 70 Hz)
Page 414: Standards Compliance
Chapter 16 - Technical Specifications MiCOM P747 STANDARDS COMPLIANCE EMC COMPLIANCE: 2004/108/EC Compliance with the European Commission Directive on EMC is demonstrated using a Technical File. Compliance with EN60255-26:2009 was used to establish conformity. PRODUCT SAFETY: 2006/95/EC Compliance with the European Commission Low Voltage Directive (LVD) is demonstrated using a Technical File.
Page 415: Mechanical Specifications
MiCOM P747 Chapter 16 - Technical Specifications MECHANICAL SPECIFICATIONS PHYSICAL PARAMETERS 40TE Case Types 60TE 80TE Weight (40TE case) 7 kg – 8 kg (depending on chosen options) Weight (60TE case) 9 kg – 12 kg (depending on chosen options) Weight (80TE case) 13 kg - 14 kg (depending on chosen options) Dimensions in mm (w x h x l) (40TE case)
Page 416: Ratings
Chapter 16 - Technical Specifications MiCOM P747 RATINGS AC MEASURING INPUTS AC Measuring Inputs Nominal frequency 50 Hz or 60 Hz (settable) Operating range 40 Hz to 70 Hz Phase rotation ABC or CBA CURRENT TRANSFORMER INPUTS AC Current Inputs Nominal current (In) 1A or 5A Nominal burden per phase...
Page 417: Nominal Burden
MiCOM P747 Chapter 16 - Technical Specifications Cortec option 1 (DC only) 19 to 65 V DC Cortec option 2 (rated for AC or DC operation) 48 to 110 V DC Maximum operating range 40 to 100 V AC rms Cortec option 3 (rated for aAC or DC operation) 110 to 250 V DC 100 to 240 V AC rms...
Page 418: Standard Output Contacts
Chapter 16 - Technical Specifications MiCOM P747 100-240V AC SUPPLY 50 ms at 80 V (full and half load) 100% voltage dip without de-energising Note: Maximum loading = all inputs/outputs energised. Note: Quiescent or 1/2 loading = 1/2 of all inputs/outputs energised. STANDARD OUTPUT CONTACTS Compliance In accordance with IEC 60255-1:2009...
Page 419: Isolated Digital Inputs
MiCOM P747 Chapter 16 - Technical Specifications ISOLATED DIGITAL INPUTS Opto-isolated digital inputs (opto-inputs) Compliance ESI 48-4 Rated nominal voltage 24 to 250 V dc Operating range 19 to 265 V dc Withstand 300 V dc Recognition time with half-cycle ac <...
Page 420: Environmental Conditions
Chapter 16 - Technical Specifications MiCOM P747 ENVIRONMENTAL CONDITIONS AMBIENT TEMPERATURE RANGE Compliance IEC 60255-27: 2005 Test Method IEC 60068-2-1:2007 and IEC 60068-2-2 2007 Operating temperature range -25°C to +55°C (continuous) Storage and transit temperature range -25°C to +70°C (continuous) AMBIENT HUMIDITY RANGE Compliance IEC 60068-2-78: 2001 and IEC 60068-2-30: 2005...
Page 421: Type Tests
MiCOM P747 Chapter 16 - Technical Specifications TYPE TESTS 10.1 INSULATION Compliance IEC 60255-27: 2005 Insulation resistance > 100 M ohm at 500 V DC (Using only electronic/brushless insulation tester) 10.2 CREEPAGE DISTANCES AND CLEARANCES Compliance IEC 60255-27: 2005 Pollution degree Overvoltage category Impulse test voltage (not RJ45) 5 kV...
Page 422: Electromagnetic Compatibility
Chapter 16 - Technical Specifications MiCOM P747 ELECTROMAGNETIC COMPATIBILITY 11.1 1 MHZ BURST HIGH FREQUENCY DISTURBANCE TEST Compliance IEC 60255-22-1: 2008, Class III Common-mode test voltage (level 3) 2.5 kV Differential test voltage (level 3) 1.0 kV 11.2 DAMPED OSCILLATORY TEST EN61000-4-18: 2011: Level 3, 100 kHz and 1 MHz.
Page 423: Surge Immunity Test
MiCOM P747 Chapter 16 - Technical Specifications 11.6 SURGE IMMUNITY TEST Compliance IEC 61000-4-5: 2005 Level 4 Pulse duration Time to half-value: 1.2/50 µs Between all groups and protective earth conductor terminal Amplitude 4 kV Between terminals of each group (excluding communications Amplitude 2 kV ports, where applicable) 11.7...
Page 424: Magnetic Field Immunity
Chapter 16 - Technical Specifications MiCOM P747 Test disturbance voltage 10 V rms Test using AM 1 kHz @ 80% Spot tests 27 MHz and 68 MHz 11.11 MAGNETIC FIELD IMMUNITY IEC 61000-4-8: 2009 Level 5 Compliance IEC 61000-4-9/10: 2001 Level 5 IEC 61000-4-8 test 100 A/m applied continuously, 1000 A/m applied for 3 s IEC 61000-4-9 test...
Page 425: Appendix A Symbols And Glossary
SYMBOLS AND GLOSSARY APPENDIX A...
Page 426 Appendix A - Symbols and Glossary MiCOM P747 P747-TM-EN-1 P747-TM-EN-1.1...
Page 427: Chapter Overview
MiCOM P747 Appendix A - Symbols and Glossary CHAPTER OVERVIEW This appendix contains terms and symbols you will find throughout the manual. This chapter contains the following sections: Chapter Overview Acronyms and Abbreviations Units for Digital Communications American Vs British English Terminology Logic Symbols and Terms Logic Timers Logic Gates...
Page 428: Acronyms And Abbreviations
Appendix A - Symbols and Glossary MiCOM P747 ACRONYMS AND ABBREVIATIONS Term Description Ampere Application Association AC / ac Alternating Current ACSI Abstract Communication Service Interface ACSR Aluminum Conductor Steel Reinforced Accuracy Limit Factor Amplitude Modulation ANSI American National Standards Institute Auto-Reclose.
Page 429 MiCOM P747 Appendix A - Symbols and Glossary Term Description Cross-network Redundancy Protocol Curve (file format for curve information) Channel Receive: Typically used to indicate a teleprotection signal received. Check Synchronism. Comma Separated Values (a file format for database information) Current Transformer CTRL.
Page 430 Appendix A - Symbols and Glossary MiCOM P747 Term Description Engineering Recommendation Frame Count Bit Fast Fourier Transform Finite Impulse Response Full load current: The nominal rated current for the circuit. FLT / Flt Fault - typically used to indicate faulted phase selection. Fn or FN Function FPGA...
Page 431 MiCOM P747 Appendix A - Symbols and Glossary Term Description Local Area Network Liquid Crystal Display: The front-panel text display on the relay. Level Detector: An element responding to a current or voltage below its set threshold. LDOV Level Detector for Overvoltage LDUV Level Detector for Undervoltage Light Emitting Diode: Red or green indicator on the front-panel.
Page 432 Appendix A - Symbols and Glossary MiCOM P747 Term Description POST Power On Self Test POTT Permissive Over Reach Transfer Tripping Parallel Redundancy Protocol Power Swing Blocking, to detect power swing/out of step functions (ANSI 78). Programmable Scheme Logic: The part of the relay’s logic configuration that can be modified by the user, using the graphical editor within S1 Studio software.
Page 433 MiCOM P747 Appendix A - Symbols and Glossary Term Description Single Point Status SQRT Square Root Spanning Tree Protocol Sampled Values Sampled Value Model Turbine Abnormal Frequency Transmission Control Protocol Trip Circuit Supervision Time Dial. The time dial multiplier setting: Applied to inverse-time curves (ANSI/IEEE). Unit for case measurements: One inch = 5TE units Total Harmonic Distortion TICS...
Page 434: Units For Digital Communications
Appendix A - Symbols and Glossary MiCOM P747 UNITS FOR DIGITAL COMMUNICATIONS Unit Description Byte Kilobit(s) kbps Kilobits per second Kilobyte(s) Megabit(s) Mbps Megabits per second Megabyte(s) Gigabit(s) Gbps Gigabits per second Gigabyte(s) Terabit(s) Tbps Terabits per second Terabyte(s) P747-TM-EN-1 P747-TM-EN-1.1...
Page 435: American Vs British English Terminology
MiCOM P747 Appendix A - Symbols and Glossary AMERICAN VS BRITISH ENGLISH TERMINOLOGY British English American English …ae… …e… …ence …ense …ise …ize …oe… …e… …ogue …og …our …or …ourite …orite …que …ck …re …er …yse …yze Aluminium Aluminum Centre Center Earth Ground...
Page 436: Logic Symbols And Terms
Appendix A - Symbols and Glossary MiCOM P747 LOGIC SYMBOLS AND TERMS Symbol Description Units & Logical "AND": Used in logic diagrams to show an AND-gate function. "Sigma": Used to indicate a summation, such as cumulative current interrupted. "Tau": Used to indicate a time constant, often associated with thermal characteristics. Angular displacement Angular displacement Flux...
Page 437 MiCOM P747 Appendix A - Symbols and Glossary Symbol Description Units Maximum secondary through-fault current If max Maximum secondary fault current (same for all feeders) If max int Maximum secondary contribution from a feeder to an internal fault If Z1 Maximum secondary phase fault current at Zone 1 reach point Maximum secondary through fault earth current IfeZ1...
Page 438 Appendix A - Symbols and Glossary MiCOM P747 Symbol Description Units Resistance A distance zone resistive reach setting: Used for ground (earth) faults. R Gnd. R Ph A distance zone resistive reach setting used for Phase-Phase faults. Secondary winding resistance Resistance of single lead from relay to current transformer Resistance of any other protective relays sharing the current transformer Resistance of relay neutral current input...
Page 439 MiCOM P747 Appendix A - Symbols and Glossary Symbol Description Units An auxiliary supply voltage: Typically the substation battery voltage used to power the relay. Weak Infeed logic used in teleprotection schemes. Reactance None Primary system reactance/resistance ratio None Xe/Re Primary system reactance/resistance ratio for earth loop None Transformer reactance (per unit)
Page 440: Logic Timers
Appendix A - Symbols and Glossary MiCOM P747 LOGIC TIMERS Logic Explanation Time chart symbols Delay on pick-up timer, t Delay on drop-off timer, t Delay on pick-up/drop-off timer Pulse timer Pulse pick-up falling edge Pulse pick-up raising edge P747-TM-EN-1 P747-TM-EN-1.1...
Page 441 MiCOM P747 Appendix A - Symbols and Glossary Logic Explanation Time chart symbols Latch Dwell timer Straight (non latching): Hold value until input reset signal P747-TM-EN-1 P747-TM-EN-1.1...
Page 442: Logic Gates
Appendix A - Symbols and Glossary MiCOM P747 LOGIC GATES AND GATE Symbol Truth Table Symbol Truth Table Symbol Truth Table & & & OR GATE Symbol Truth Table Symbol Truth Table Truth Table Symbol S – R FLIP-FLOP Symbol Truth Table Truth Table Symbol...
Page 443: Appendix B Commissioning Record
COMMISSIONING RECORD APPENDIX B...
Page 444 Appendix B - Commissioning Record MiCOM P747 P747-TM-EN-1 P747-TM-EN-1.1...
Page 445: Test Record
MiCOM P747 Appendix B - Commissioning Record TEST RECORD ENGINEER DETAILS Item Value Engineer's name Commissioning date Station Circuit System Frequency VT Ratio CT Ratio FRONT PLATE INFORMATION Item Value Device Model number Serial number Rated current In Rated voltage Vn Auxiliary voltage Vx TEST EQUIPMENT Test Equipment...
Page 446: Tests With Product Energised
Appendix B - Commissioning Record MiCOM P747 Test Result (mark where appropriate) N/C Watchdog contacts closed? Yes / No N/O Watchdog contacts open? Yes / No Measured auxiliary supply ……………………..V DC / AC TESTS WITH PRODUCT ENERGISED General Tests Result (mark where appropriate) N/C Watchdog contacts open? Yes / No N/O Watchdog contacts closed?
Page 447: Voltage Input Tests
MiCOM P747 Appendix B - Commissioning Record VOLTAGE INPUT TESTS Voltage Inputs (if applicable) Result (mark where appropriate) Displayed voltage Primary / Secondary Main VT ratio (if applicable) Input VT Applied Value Displayed value OVERCURRENT CHECKS Overcurrent Checks Result Overcurrent type Directional / Non-directional Applied voltage Applied current...
Page 448 Appendix B - Commissioning Record MiCOM P747 Final Checks Result LEDs reset? Yes / No P747-TM-EN-1 P747-TM-EN-1.1...
Page 449: Appendix C Wiring Diagrams
WIRING DIAGRAMS APPENDIX C...
Page 450 Appendix C - Wiring Diagrams MiCOM P747 P747-TM-EN-1 P747-TM-EN-1.1...
Page 451: Appendix Overview
MiCOM P747 Appendix C - Wiring Diagrams APPENDIX OVERVIEW This chapter contains the wiring diagrams for all possible situations. This chapter contains the following sections: Appendix Overview P747: Busbar Protection P747: I/O Option A P747: I/O Option B P747: I/O Option C P747-TM-EN-1 P747-TM-EN-1.1...
Page 452: P747: Busbar Protection
Appendix C - Wiring Diagrams MiCOM P747 P747: BUSBAR PROTECTION W02910 Figure 99: P747 busbar protection, 3 box solution P747-TM-EN-1 P747-TM-EN-1.1...
Page 453: P747: I/O Option A
MiCOM P747 Appendix C - Wiring Diagrams P747: I/O OPTION A W02912 Figure 100: P747 busbar protection with 40 inputs, 24 outputs and coprocessor P747-TM-EN-1 P747-TM-EN-1.1...
Page 454: P747: I/O Option B
Appendix C - Wiring Diagrams MiCOM P747 P747: I/O OPTION B W02913 Figure 101: P747 busbar protection with 32 inputs, 32 outputs and coprocessor P747-TM-EN-1 P747-TM-EN-1.1...
Page 455: P747: I/O Option C
MiCOM P747 Appendix C - Wiring Diagrams P747: I/O OPTION C W02911 Figure 102: P747 busbar protection with 32 inputs, 24 outputs and standard coprocessor P747-TM-EN-1 P747-TM-EN-1.1...
Page 456 Appendix C - Wiring Diagrams MiCOM P747 P747-TM-EN-1 P747-TM-EN-1.1...
Page 458 Imagination at work Grid Solutions St Leonards Building Redhill Business Park Stafford, ST16 1WT, UK +44 (0) 1785 250 070 www.gegridsolutions.com/contact © 2017 General Electric. All rights reserved. Information contained in this document is indicative only. No representation or warranty is given or should be relied on that it is complete or correct or will apply to any particular project. This will depend on the technical and commercial circumstances.

This manual is also suitable for:

Micom p40 agile

GE MiCOM P747 Agile Technical Manual

Chapter 1 Introduction

Chapter Overview

Foreword

Features and Functions

Compliance

Functional Overview

Ordering Options

Chapter 2 Safety Information

Chapter Overview

Chapter Overview Health and Safety Symbols

Installation, Commissioning and Servicing

Decommissioning and Disposal

Chapter 3 Hardware Design

Chapter Overview

Hardware Architecture

Mechanical Implementation

Front Panel

Rear Panel

Boards and Modules

Chapter 4 Configuration

Chapter Overview

Using the HMI Panel

Configuring the Data Protocols

Date and Time Configuration

Configuration Settings

Chapter 5 Protection Functions

Chapter Overview

Busbar Protection

Busbar Multiple Tripping Criteria

Circuit Breaker Fail Protection

Backup Overcurrent Protection

Configuring the Busbar Protection

Chapter 6 Monitoring and Control

Chapter Overview

Event Records

Disturbance Recorder

Measurements

O Functions

Voltage Transformer Supervision

Trip Circuit Supervision

Chapter 7 SCADA Communications

Chapter Overview

Communication Interfaces

Serial Communication

Standard Ethernet Communication

Overview of Data Protocols

Courier

Dnp

Modbus

Quick Links

Troubleshooting

Related Manuals for GE MiCOM P747 Agile

Summary of Contents for GE MiCOM P747 Agile
