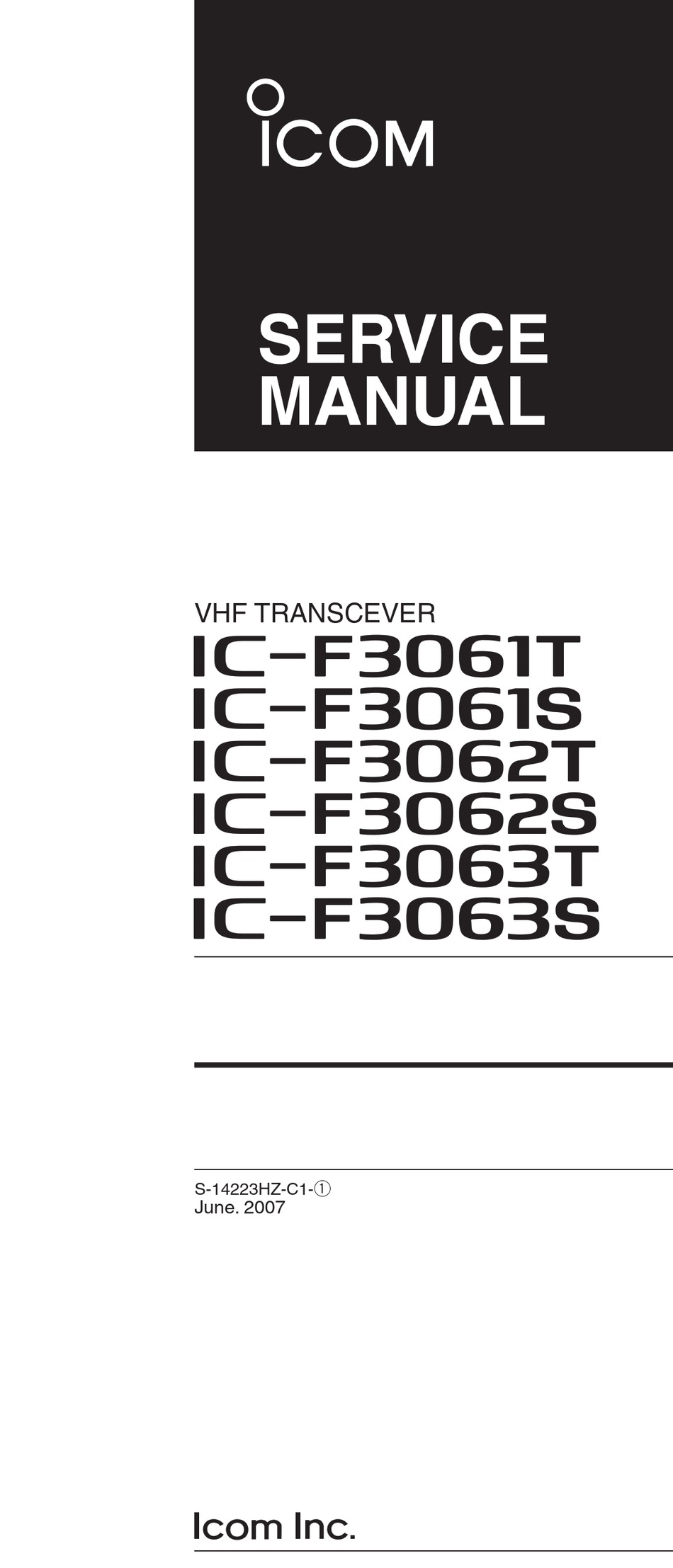

  • Page 1 VHF TRANSCEVER S-14223HZ-C1-q June. 2007...
  • Page 2 8. READ the instructions of test equipment throughly before connecting a test equipment to the transceiver. Icom, Icom Inc. and logo are registered trademarks of Icom Incorporated (Japan) in the United States, the United Kingdom, Germany, France, Spain, Russia and/or other countries.

  • Page 3: Table Of Contents

    CONTENTS SECTION SPECIFICATIONS SECTION INSIDE VIEWS SECTION DISASSEMBLY INSTRUCTIONS SECTION OPTIONAL UNIT INSTALLATION SECTION CIRCUIT DESCRIPITON RECEIVER CIRCUITS............5-1 TRANSMITTER CIRCUITS .

  • Page 4: Specifications

    50 Ω (nominal) • Antenna impedance • Operating temperature range −22˚F to +140˚F –25˚C to +55˚C • Power supply requirement Specified Icom's battery packs only (Operatable voltage; 7.2 V DC negative ground) • Current drain Stand-by 95 mA (approx.) Max.audio...
  • Page 5 SECTION 2 INSIDE VIEWS • FRONT UNIT • RF UNIT (Top view) Mic selector APC amplifier Q506: UNR9113J (IC601: TA75S01F) Q516: UNR9213J AF power amplifier controller Q501: 2SB1132 Q502: XP6501 AF power amplifier (IC508: TDA8547TS) TX power detector (D604: RB706F-40) Speaker selector (Q512, Q513: UNR9213J) Expander IC...
  • Page 6 SECTION 3 DISASSEMBLY INSTRUCTION • REMOVING THE CHASSIS UNIT • REMOVING THE RF UNIT Unscrew 1 nut A, and remove 2 knobs B and C. Unsolder 3 points A. Unscrew 2 screws D. Unscrew 4 screws B and remove the RF unit from the chassis.

  • Page 7: Section 4 Optional Unit Installation

    SECTION 4 OPTIONAL UNIT INSTALLATION CAUTION! Optional unit installation should be done at authorized Icom servise center only. The waterproof capability of the transceiver cannot be guaranteed if you install an unit yourself, or have it done at a non-authorised dealer/service center.

  • Page 8: Receiver Circuits

    SECTION 5 CIRCUIT DESCRIPTION 5-1 RECEIVER CIRCUITS The converted 1st IF signal is passed through the 1st IF fi lter (in wide mode; FI1, in narrow mode; FI4) via the bandwidth 5-1-1 ANTENNA SWITCH (MAIN and RF UNITS) switch (D34), to remove adjacent signals. The filtered signal The received signals from the antenna connector are passed is applied to the 1st IF amplifi...

  • Page 9: Transmitter Circuits

    The TX/RX HPF filters out 250 Hz and lower audio signals, • CTCSS/DTCS and the de-emphasis circuit obtains –6 dB/oct of audio A portion of the demodulated AF signals are passed through characteristics. The expander expands the compressed audio the active LPF (Q28) to filters CTCSS/DTCS signal. The filtered signals and also noise reduction function is provided.

  • Page 10: Pll Circuits

    The output AF signals are then passed through the Digital/ A portion of the transmit signal is detected by the transmit power Analog switch (IC14, pins 12, 14) and applied to the AF mixer detector (D604, D605) to produce a DC voltage corresponding to (IC9, pin 6) where the MIC signals and Tone signals are mixed the transmit output power level.

  • Page 11: Power Supply Circuits

    A portion of the each VCO output is applied to the PLL IC (IC1, the reference frequency signal from the reference frequency pin 6) via the buffer amplifi ers (Q4, Q5) and the tunable BPF oscillator (X1), at the phase detector. (D30, D31, L40, C170−C174).

  • Page 12: Port Allocations

    5-5 PORT ALLOCATIONS EMER Input port for [Emer] switch (VR UNIT; S702). 5-5-1 CPU (MAIN UNIT; IC18) Port Description Name Port Description Name Outputs CPU clock frequency shift signal to the CPU CSFT clock oscillator (X2, D38). DSDA Outputs serial data to the D/A converter (IC20, pin 6). Outputs CTCSS/DTCS select signal to the CTCSS/ DUSE DAST...

  • Page 13: Section 6 Adjustment Procedures

    FREQUENCY ADJUSTMENT ITEM [Next>] to install the software to the destination folder. (e.g. TX power : Low1 174.000 MHz C:\Program Files\Icom\CS-F3060 ADJ) Mode : Narrow y After the installation is completed, the “InstallShield Wiz- TX power : Low1 154.900 MHz...
  • Page 14 • CONNECTION Attenuator Osciiloscope 20 dB or 30 dB deviation meter Standard signal generator 0.1 µV to 32 mV RF power meter (–127 dBm to –17 dBm) 0.1–10 W/50 Ω CAUTION! Frequency DO NOT transmit while counter the SSG is connected to the antenna connector RS-232C cable OPC-966...
  • Page 15 • PC SCREEN EXAMPLE 6 - 3...

  • Page 16: Frequency Adjustment

    6-2 FREQUENCY ADJUSTMENT Select an adjustment item using [↑] / [↓] keys, then set to the specifi ed value using [←] / [→] keys on the connected PC's keyboard. MEASUREMENT ADJUSTMENT ADJUSTMENT CONDITION VALUE UNIT OPERATION PLL LOCK 1 • Channel : CH 2 Click [I/O Check] in the Clone 3.0 V...

  • Page 17: Transmit Adjustment

    6-3 TRANSMIT ADJUSTMENT Select an adjustment item using [↑] / [↓] keys, then set to the specifi ed value using [←] / [→] keys on the connected PC's keyboard. MEASUREMENT ADJUSTMENT ADJUSTMENT CONDITION VALUE UNIT OPERATION OUTPUT 1 • Channel : CH 3 Connect an RF power meter to 5.0 W...

  • Page 18: Receive Adjustment

    6-4 RECEIVE ADJUSTMENT Select an adjustment item using [↑] / [↓] keys, then set to the specifi ed value using [←] / [→] keys on the connected PC's keyboard. MEASUREMENT ADJUSTMENT ADJUSTMENT CONDITION VALUE UNIT LOCATION RECEIVE NOTE: "RECEIVE SENSITIVITY" must be adjusted before "S-METER." Otherwise, "S-METER" will not be SENSITIVITY adjusted properly.
  • Page 19 SECTION 7 PARTS LIST [FRONT UNIT] • IC-F3061/F3062/F3063/T/S ORDER [FRONT UNIT] DESCRIPTION LOCATION ORDER R560 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) 77.5/18.4 DESCRIPTION LOCATION R561 7030005000 S.RES ERJ2GEJ 471 X (470) 82.7/22.7 R562 7030005000 S.RES ERJ2GEJ 471 X (470) 83.4/20.3 IC501 1180002401 S.REG S-812C30AMC-C2K-G...
  • Page 20 [MAIN UNIT] [MAIN UNIT] ORDER ORDER DESCRIPTION DESCRIPTION LOCATION LOCATION 1130010100 S.IC LMX2352TMX/NOPB 58.2/18.3 2030000150 S.MLH FL-335 (46.350 MHz) 91.4/27.4 1110003491 S.IC TA31136FNG (D,EL) 76.6/32.9 1190001350 S.IC M62364FP 600D 42.1/18.1 1110006221 S.IC AK2346P-E2/P 51.3/36.4 6050012340 S.XTL CR-825 (15.6 MHz) [FRG-01] B 57.9/26.5 1110005350 S.IC NJM2870F05-TE1...
  • Page 21 [MAIN UNIT] [MAIN UNIT] ORDER ORDER DESCRIPTION DESCRIPTION LOCATION LOCATION R190 7030005700 S.RES ERJ2GEJ 274 X (270 k) 99.8/11.2 7030005050 S.RES ERJ2GEJ 103 X (10 k) 95.7/23.1 R191 7030005090 S.RES ERJ2GEJ 104 X (100 k) 99/9.1 7030005050 S.RES ERJ2GEJ 103 X (10 k) 85/17.4 R192 7030005050 S.RES ERJ2GEJ 103 X (10 k)
  • Page 22 [MAIN UNIT] [MAIN UNIT] ORDER ORDER DESCRIPTION DESCRIPTION LOCATION LOCATION R301 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 104.3/31.5 4030016790 S.CER ECJ0EB1C103K 74.4/16.3 R302 7030005090 S.RES ERJ2GEJ 104 X (100 k) 19.5/12.4 4030017460 S.CER ECJ0EB1E102K 81.8/16.7 R303 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) 76.6/41.1 4030017730 S.CER ECJ0EB1E471K 81.7/22.2...
  • Page 23 [MAIN UNIT] [MAIN UNIT] ORDER ORDER DESCRIPTION DESCRIPTION LOCATION LOCATION C322 4030016930 S.CER ECJ0EB1A104K 12.9/23.2 C222 4030016970 S.CER ECJ0EB1C223K 63.2/32.2 C323 4030016930 S.CER ECJ0EB1A104K 12.9/21.4 C223 4030016930 S.CER ECJ0EB1A104K 66/37.1 C324 4030016930 S.CER ECJ0EB1A104K 9.2/21.4 C224 4030017790 S.CER ECJ0EB1E682K 66/35.4 C325 4030016930 S.CER ECJ0EB1A104K 12.8/26.6...
  • Page 24 [RF UNIT] [RF UNIT] ORDER ORDER DESCRIPTION DESCRIPTION LOCATION LOCATION IC601 1110002751 S.IC TA75S01F (TE85R,F) 24.4/23.1 C635 4030017730 S.CER ECJ0EB1E471K 3.2/7.4 C637 4030017460 S.CER ECJ0EB1E102K 3.1/9.3 C638 4030017430 S.CER ECJ0EC1H101J 4.7/9.8 Q602 1560001241 S.FET RD01MUS1-T113 3.5/13.2 C639 4030017490 S.CER C1608 JB 1A 105K-T 13.8/14.2 Q603 1530003421 S.TR...
  • Page 25 [VR-A UNIT] ( [FRG-01]) [MAIN UNIT] ORDER ORDER DESCRIPTION DESCRIPTION LOCATION LOCATION 7030000740 S.RES MCR10EZHJ 1 M 42.1/14.4 S701 2250000600 ECR TP70N1035E20-15.9F-2893 7030003440 S.RES ERJ3GEYJ 102 V (1 k) 40.4/12.2 S702 2230001060 S.SW EVQ-PUL 02K 8/10.4 7030000460 S.RES MCR10EZHJ 4.7 k 34.7/23.8 7030005501 S.RES ERA3YKD 124V (120 k) 33.6/21.3...
  • Page 26 SECTION 8 MECHANICAL PARTS [MAIN UNIT] [CHASSIS PARTS] REF. ORDER REF. ORDER DESCRIPTION QTY. DESCRIPTION QTY. 2260002840 Switch SKHLLFA010 6910015910 Connector ANT connector-104 6910015860 Connector IMSA-6277S-02A-G 8510017410 2893 VCO case 8510017420 2893 VCO cover 8900014981 Cable OPC-1589-1 MP3* 8510017610 Plate OG-542925 8900014971 Cable OPC-1590-1 2510001360...
  • Page 27 W1 (C) MP33 (C) MP8 (C) MP10 (C) MP802 (J) SP1( C) MP501 (F) MC501 (F) MP22 (C) MP33 (C) MP31 (C) MP32 (C) MP502 (F) MP27 (C) MP26 (C) MP33 (C) J A CK UNI T MP506 (F) MP7 (C) F R ONT UNI T MP502 (F) DS510 (F)
  • Page 28 SECTION 9 SEMICONDUCTOR INFORMATION 2SA1577 T106 Q 2SB1132 T100 R 2SC4081 T106 R 2SC4116 BL 2SC4215 O 1SV239 1SV284 1SV307 1SV308 AVR-M1005C080MTABB (Symbol: HQ) (Symbol: BAR) (Symbol: BR) (Symbol: LL) (Symbol: QO) (Symbol: TC) (Symbol: TL) (Symbol: TX) (Symbol: TX) 2SC4226 T1 R25 2SC5107 O 2SC5110 O...
  • Page 29 SECTION 10 BOARD LAYOUTS from battery RXRF to VR unit J701 • MAIN UNIT (TOP VIEW) • RF UNIT (TOP VIEW) • FRONT UNIT (TOP VIEW) ISENS from RF from RF unit J602 unit J601 C630 TXRF TMUT IC601 C649 F601 J601 D607...
  • Page 30 • VR-A UNIT (BOTTOM VIEW) ROTARY SELECTOR to MAIN unit J4 J701 J701 R704 • BC-160 (BOTTOM VIEW) B6418E CHARGE J501 J502 VSENS to MAIN unit J3 to LCD S-14223HH-P2-w Printed in Japan © 2006–2007 Icom Inc. 10 - 2...
  • Page 31 SECTION 11 BLOCK DIAGRAM Q17 2SC4116 D13 MA2S111 RX VCO1 ANTENNA Q1 : 2SC422 RF UNIT ISENS D604/D605 RIPPLE D1/D2 : HVC376B 136-174MHz Q604 XP6401 RB706F Q605 2SC4081 2SK880 ISENS M62364FP LVIN D3/D4 1SV284 BUFF CPU5 RX VCO2 IC21 Q2 : 2SC4226 D14 1SV308 Q603 Q602...
  • Page 32 SECTION 12 VOLTAGE DIAGRAM FRONT UNIT MAIN UNIT OUT1 J501 TEMP C1 22p R539 2SK880 MDET MDET R280 R1 470k ERTJ0EP473J R203 15.3MHz C4 0.1 C169 C172 IC501 VCON S-812C30AMC IC505 5.0V IC506 M62320FP M62320FP FSCL FSCL 220k IC21 FSDA FSDA D505 NJM2125F...
  • Page 33 RF UNIT TX: 0.58V RX: 4.85V R623 0.15 TX: 4.75V J601 RX: 0V CP10 4.85V CP11 TXRF R189 R14 3.9k R15 1.8k 0.001 0.001 4.17V CP12 2SC4116 2SA1577 2SA1577 2SA1577 Q605 ISENS CP13 ISENS 2SC4081 CP14 3.3µ HVC376B 0.1µ 0.001 Q604 C376 XP6401...
  • Page 34 SECTION 13 BC-160 RSQ035P03TR 100µ CHARGE [CHASSIS PARTS] 2SC4081 1SS355 REF. ORDER DESCRIPTION QTY. 2SC4081 VSENS 8010019750 2830 case 5.00V battery 4.7k 9.6uS 10.05V MCR10-JPW 8110008220 2830 cover 16.0V NJM2801U1-0543-TE1 8930039620 Leg cushion (A) MCR10-JPW 8.4V SM240A-T Screw PH BT M3 × 6 NI-ZU 8810008630 0.12 [MAIN UNIT]...
