ABOUT THE microSD CARD
Backing up the data saved on the microSD card onto a PC (Continued)

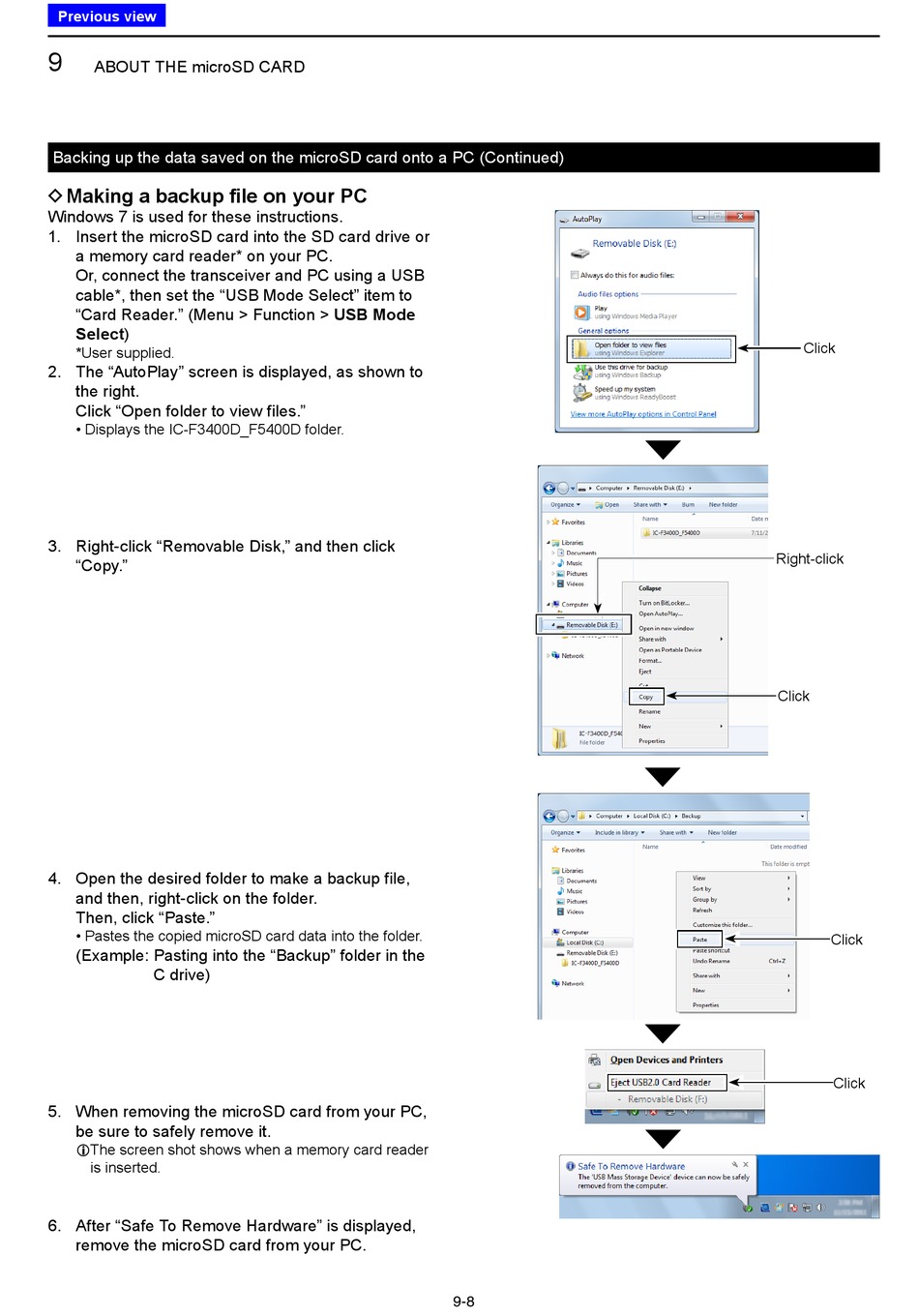

D Making a backup file on your PC

Windows 7 is used for these instructions.
1. Insert the microSD card into the SD card drive or
a memory card reader* on your PC.
Or, connect the transceiver and PC using a USB
cable*, then set the "USB Mode Select" item to
"Card Reader." (Menu > Function > USB Mode
Select)
*User supplied.
2. The "AutoPlay" screen is displayed, as shown to
the right.
Click "Open folder to view files."
• Displays the IC-F3400D_F5400D folder.
3. Right-click "Removable Disk," and then click
"Copy."
4. Open the desired folder to make a backup file,
and then, right-click on the folder.
Then, click "Paste."
• Pastes the copied microSD card data into the folder.
(Example: Pasting into the "Backup" folder in the
C drive)
5. When removing the microSD card from your PC,
be sure to safely remove it.
L The screen shot shows when a memory card reader
is inserted.
6. After "Safe To Remove Hardware" is displayed,
remove the microSD card from your PC.
9-8
Click
Right-click
Click
Click
Click
