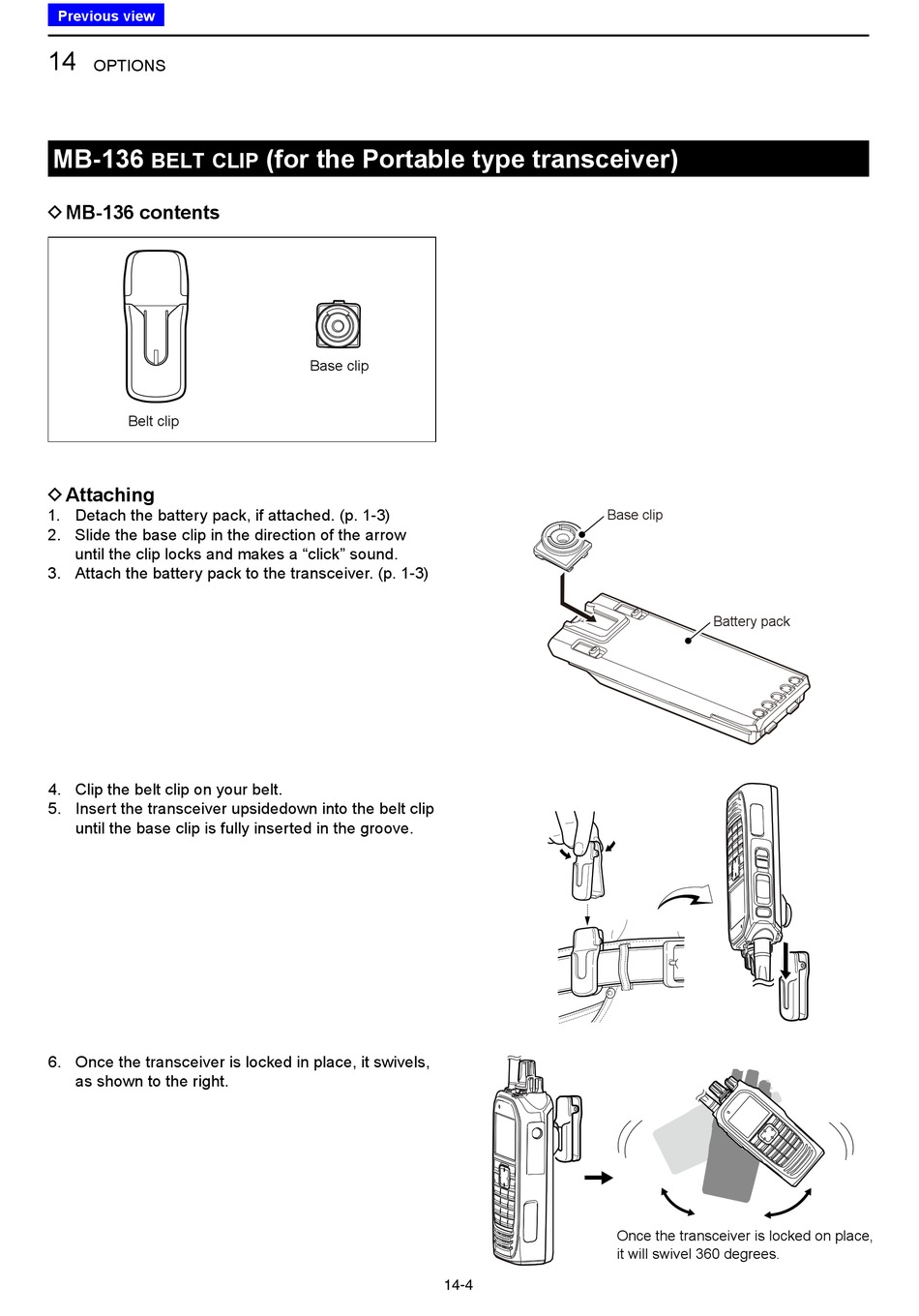

Belt Clip (For The Portable Type Transceiver); D Mb-136 Contents; D Attaching - Icom IC-F3400D Operating Manual

Previous view
14
OPTIONS
MB-136
belt clip

D MB-136 contents

Belt clip

D Attaching

1. Detach the battery pack, if attached. (p. 1-3)
2. Slide the base clip in the direction of the arrow
until the clip locks and makes a "click" sound.
3. Attach the battery pack to the transceiver. (p. 1-3)
4. Clip the belt clip on your belt.
5. Insert the transceiver upsidedown into the belt clip
until the base clip is fully inserted in the groove.
6. Once the transceiver is locked in place, it swivels,
as shown to the right.
(for the Portable type transceiver)
Base clip
Base clip
Once the transceiver is locked on place,
it will swivel 360 degrees.
14-4
Battery pack
