2

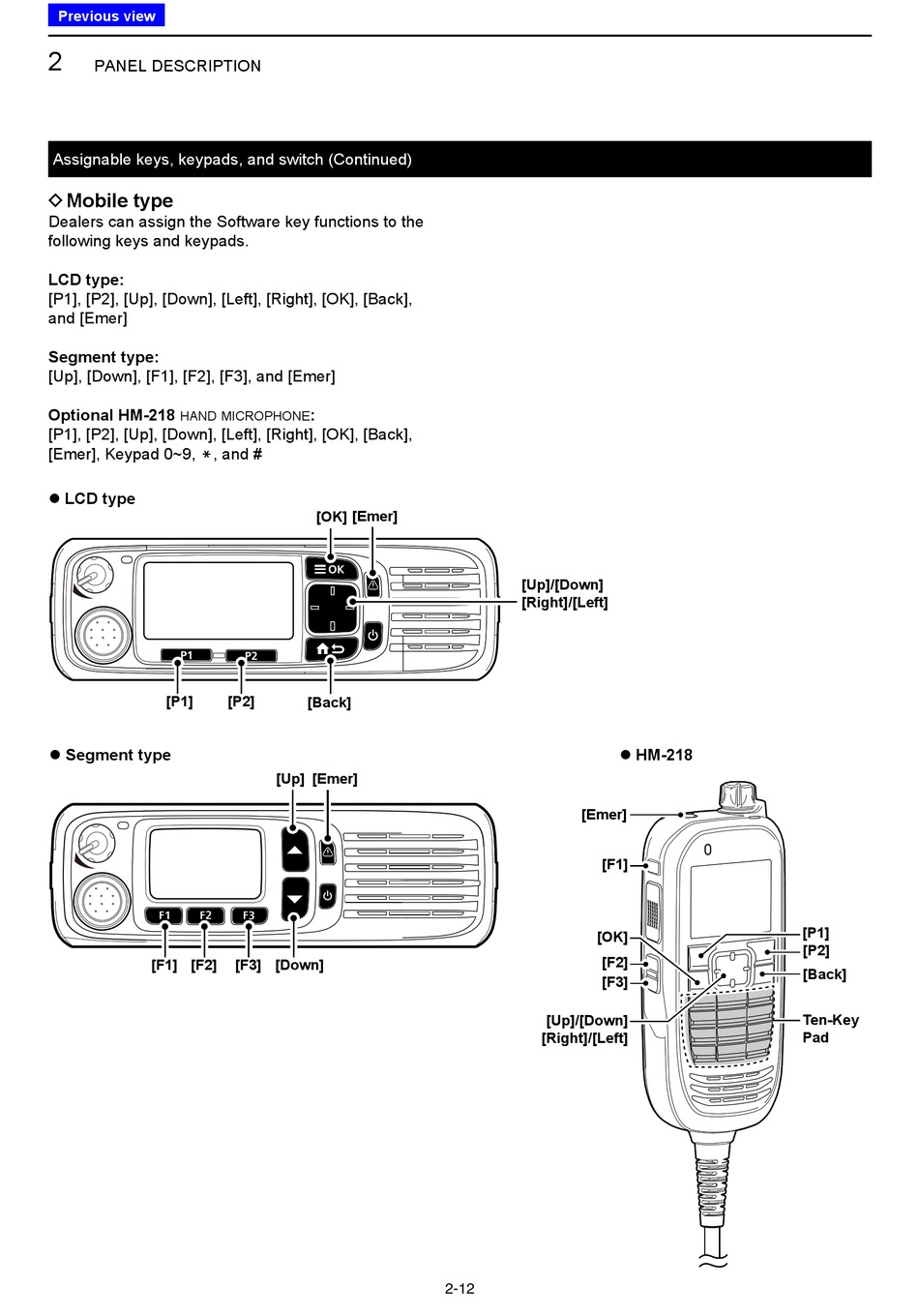

PANEL DESCRIPTION
Assignable keys, keypads, and switch (Continued)

D Mobile type

Dealers can assign the Software key functions to the
following keys and keypads.
LCD type:
[P1], [P2], [Up], [Down], [Left], [Right], [OK], [Back],
and [Emer]
Segment type:
[Up], [Down], [F1], [F2], [F3], and [Emer]
Optional HM-218
hand microphone
[P1], [P2], [Up], [Down], [Left], [Right], [OK], [Back],
[Emer], Keypad 0~9, M, and #
z LCD type
[P1]
z Segment type
F1 F2
[F1] [F2]
:
[OK] [Emer]
[P2]
[Back]
[Up] [Emer]
F3
[F3] [Down]
[Up]/[Down]
[Right]/[Left]
z HM-218
[Emer]
[F1]
[OK]
[F2]
[F3]
[Up]/[Down]
[Right]/[Left]
2-12
[P1]
[P2]
[Back]
Ten-Key
Pad
