2
PANEL DESCRIPTION

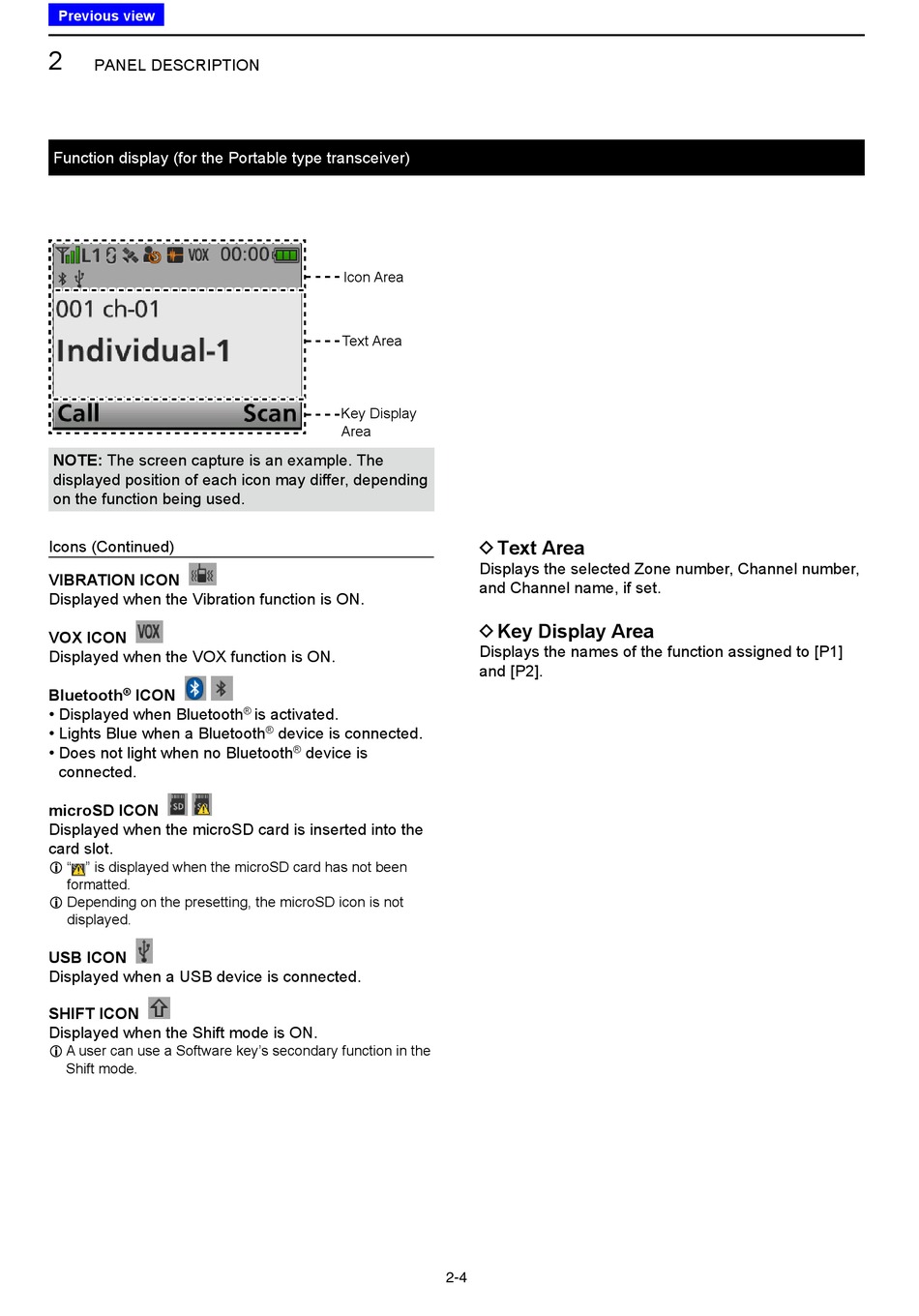

Function display (for the Portable type transceiver)
NOTE: The screen capture is an example. The
displayed position of each icon may differ, depending
on the function being used.
Icons (Continued)
VIBRATION ICON
Displayed when the Vibration function is ON.
VOX ICON
Displayed when the VOX function is ON.
Bluetooth ® ICON
• Displayed when Bluetooth
• Lights Blue when a Bluetooth
• Does not light when no Bluetooth
connected.
microSD ICON
Displayed when the microSD card is inserted into the
card slot.
L " " is displayed when the microSD card has not been
formatted.
L Depending on the presetting, the microSD icon is not
displayed.
USB ICON
Displayed when a USB device is connected.
SHIFT ICON
Displayed when the Shift mode is ON.
L A user can use a Software key's secondary function in the
Shift mode.
Icon Area
Text Area
Key Display
Area
® is activated.
® device is connected.
® device is

D Text Area

Displays the selected Zone number, Channel number,
and Channel name, if set.

D Key Display Area

Displays the names of the function assigned to [P1]
and [P2].
2-4
