7
NXDN™ OPERATION

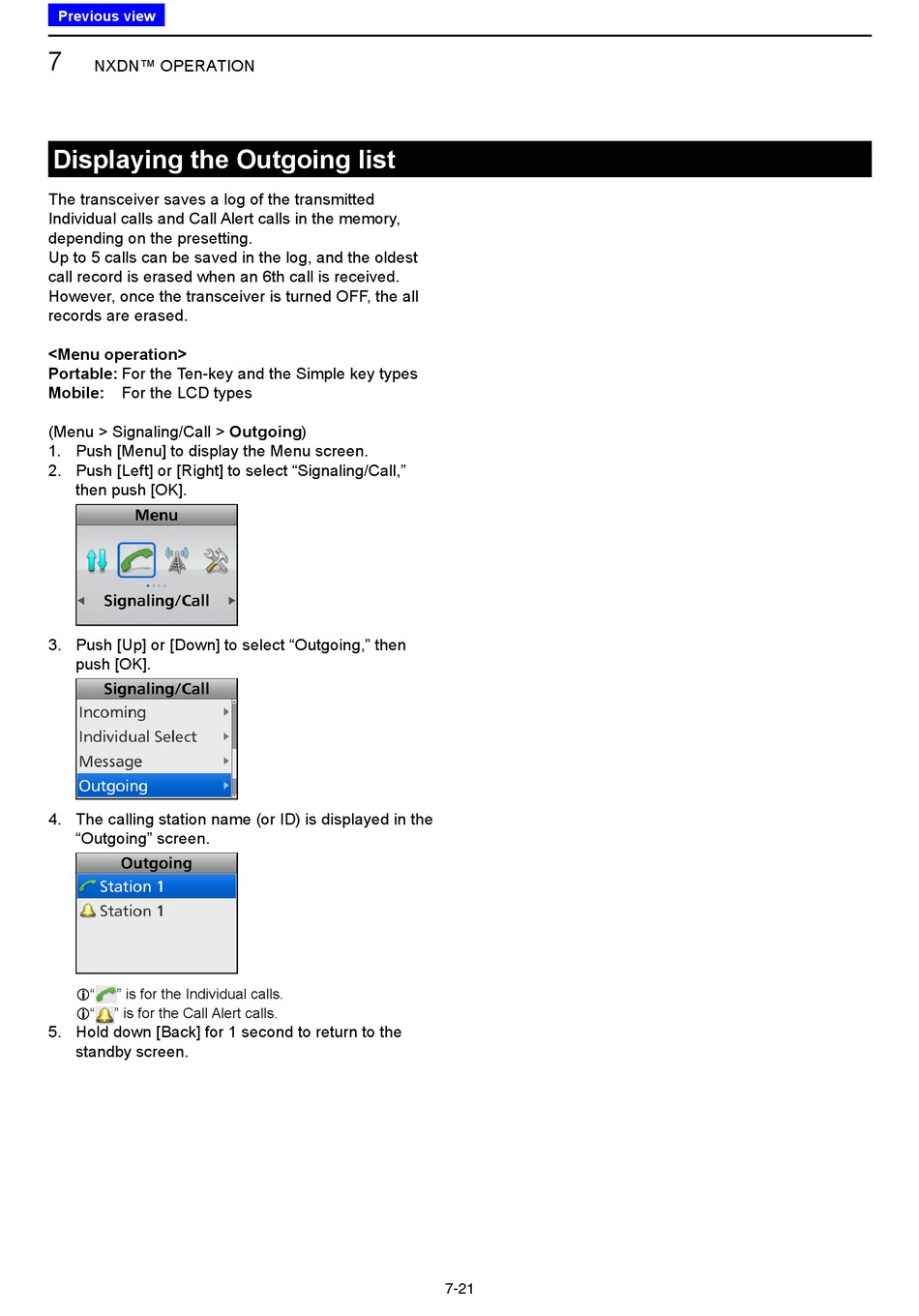

Displaying the Outgoing list

The transceiver saves a log of the transmitted
Individual calls and Call Alert calls in the memory,
depending on the presetting.
Up to 5 calls can be saved in the log, and the oldest
call record is erased when an 6th call is received.
However, once the transceiver is turned OFF, the all
records are erased.
<Menu operation>
Portable: For the Ten-key and the Simple key types
Mobile: For the LCD types
(Menu > Signaling/Call > Outgoing)
1. Push [Menu] to display the Menu screen.
2. Push [Left] or [Right] to select "Signaling/Call,"
then push [OK].
3. Push [Up] or [Down] to select "Outgoing," then
push [OK].
4. The calling station name (or ID) is displayed in the
"Outgoing" screen.
" is for the Individual calls.
L"
" is for the Call Alert calls.
L"
5. Hold down [Back] for 1 second to return to the
standby screen.
7-21
