14
OPTIONS

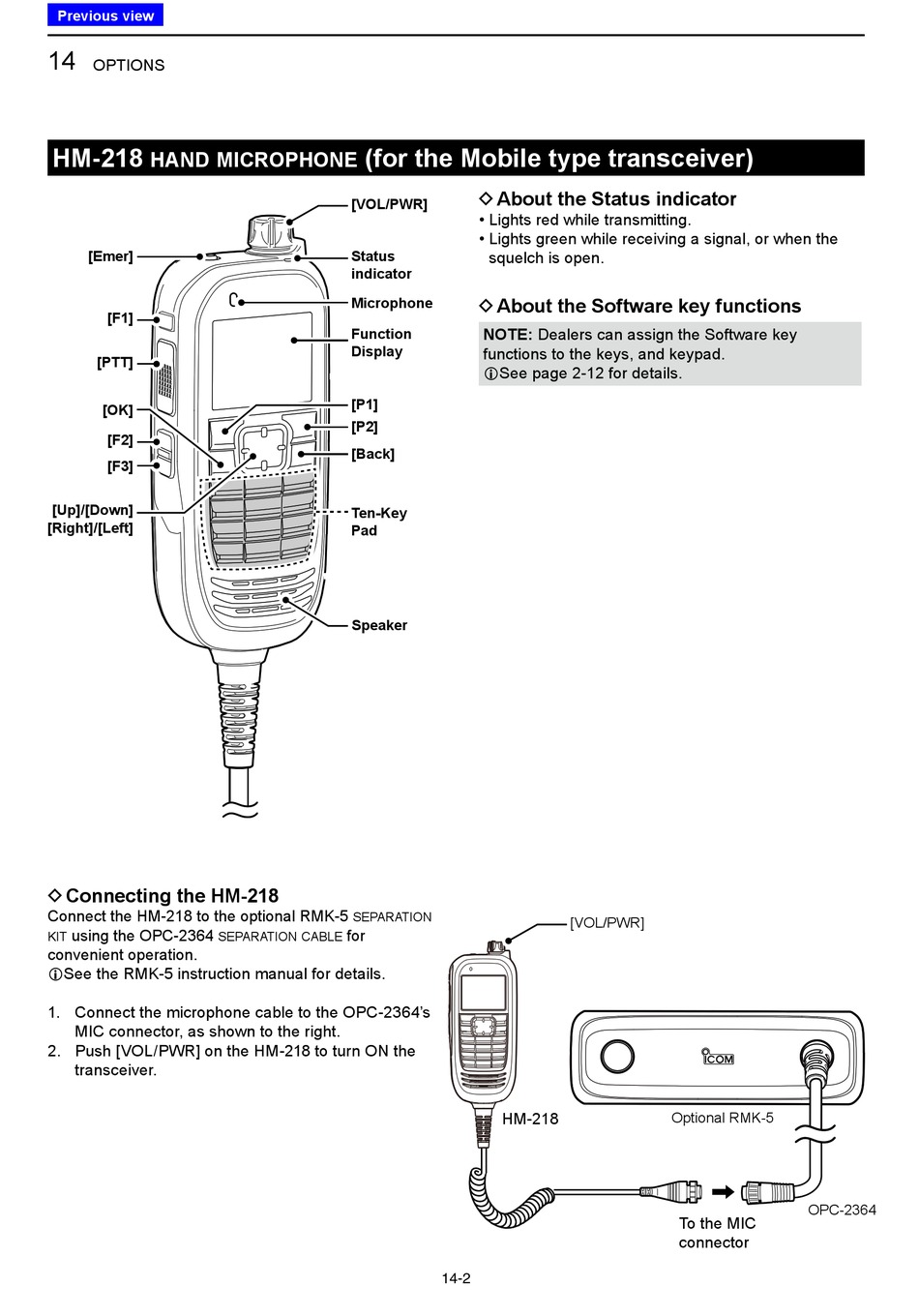

HM-218
hand microphone
[Emer]
[F1]
[PTT]
[OK]
[F2]
[F3]
[Up]/[Down]
[Right]/[Left]
D Connecting the HM-218
Connect the HM-218 to the optional RMK-5
using the OPC-2364
kit separation cable
convenient operation.
L See the RMK-5 instruction manual for details.
1. Connect the microphone cable to the OPC-2364's
MIC connector, as shown to the right.
2. Push [VOL/PWR] on the HM-218 to turn ON the
transceiver.
(for the Mobile type transceiver)

D About the Status indicator

[VOL/PWR]
• Lights red while transmitting.
• Lights green while receiving a signal, or when the
Status
squelch is open.
indicator
Microphone

D About the Software key functions

Function NOTE: Dealers can assign the Software key
Display
functions to the keys, and keypad.
LSee page 2-12 for details.
[P1]
[P2]
[Back]
Ten-Key
Pad
Speaker
separation
for
HM-218
14-2
[VOL/PWR]
Optional RMK-5
To the MIC
connector
OPC-2364
