Intel Falcon 8+ User Manual page 98

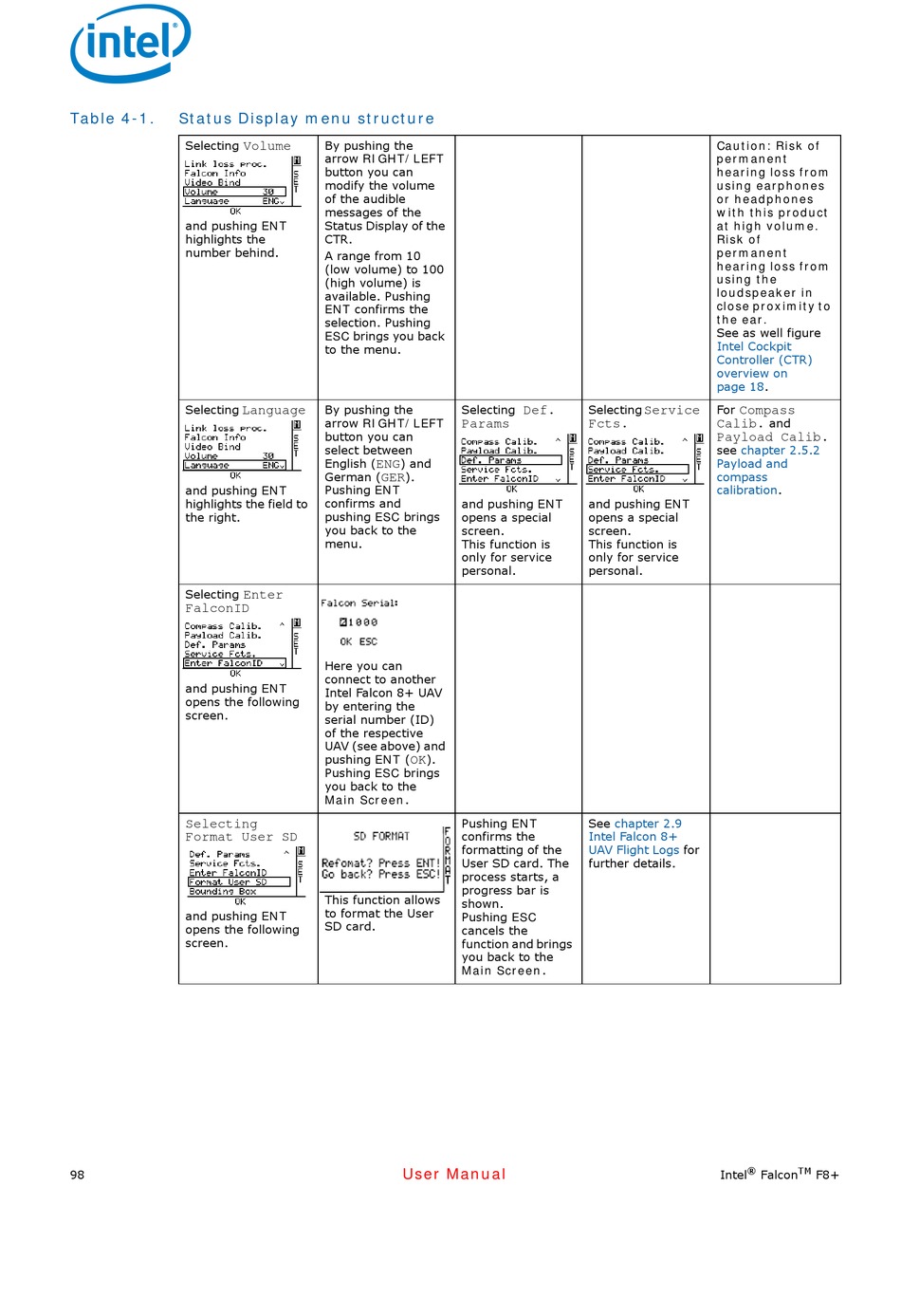

Table 4-1. Status Display menu structure
Selecting
and pushing ENT
highlights the
number behind.
Selecting
and pushing ENT
highlights the field to
the right.
Selecting
FalconID
and pushing ENT
opens the following
screen.
Selecting
Format User SD
and pushing ENT
opens the following
screen.
98
By pushing the
Volume
arrow RIGHT/LEFT
button you can
modify the volume
of the audible
messages of the
Status Display of the
CTR.
A range from 10
(low volume) to 100
(high volume) is
available. Pushing
ENT confirms the
selection. Pushing
ESC brings you back
to the menu.
By pushing the
Language
arrow RIGHT/LEFT
button you can
select between
English ( ) and
ENG
German ( ).
GER
Pushing ENT
confirms and
pushing ESC brings
you back to the
menu.
Enter
Here you can
connect to another
Intel Falcon 8+ UAV
by entering the
serial number (ID)
of the respective
UAV (see above) and
pushing ENT (
OK
Pushing ESC brings
you back to the
Main Screen.
This function allows
to format the User
SD card.
User Manual
Selecting Selecting
Def.
Params Fcts.
and pushing ENT and pushing ENT
opens a special opens a special
screen.  screen. 
This function is This function is
only for service only for service
personal. personal.
).
Pushing ENT See
confirms the Intel Falcon 8+
formatting of the UAV Flight Logs
User SD card. The further details.
process starts, a
progress bar is
shown.
Pushing ESC
cancels the
function and brings
you back to the
Main Screen.
Caution: Risk of
permanent
hearing loss from
using earphones
or headphones
with this product
at high volume.
Risk of
permanent
hearing loss from
using the
loudspeaker in
close proximity to
the ear. 
See as well figure
Intel Cockpit
Controller (CTR)
overview on
page 18.
For
Service Compass
and
Calib.
Payload Calib.
see chapter 2.5.2
Payload and
compass
calibration.
chapter 2.9
for
®
Intel Falcon
TM
F8+
