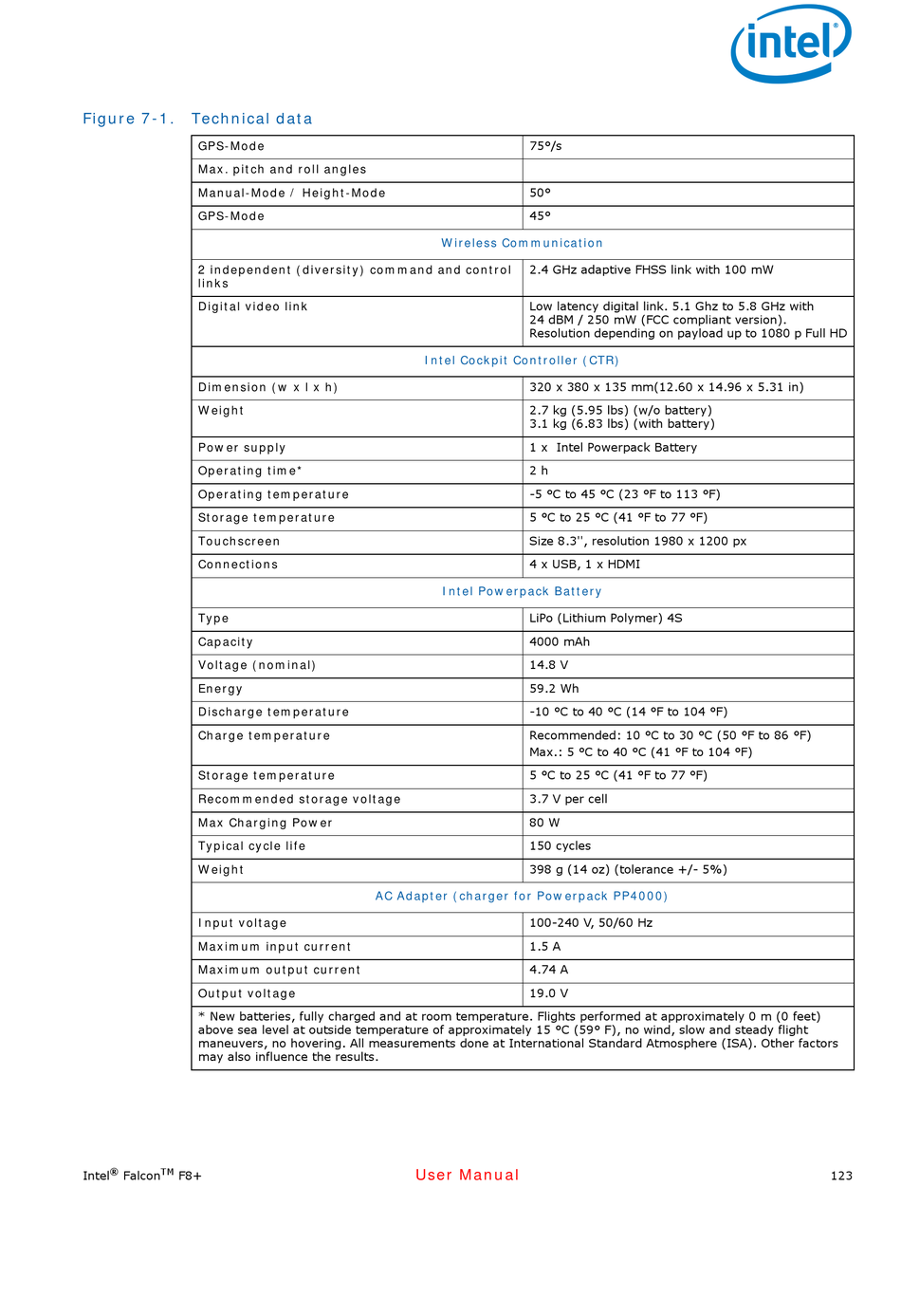

Figure 7-1. Technical data
GPS-Mode
Max. pitch and roll angles
Manual-Mode / Height-Mode
GPS-Mode
2 independent (diversity) command and control
links
Digital video link
Dimension (w x l x h)
Weight
Power supply
Operating time*
Operating temperature
Storage temperature
Touchscreen
Connections
Type
Capacity
Voltage (nominal)
Energy
Discharge temperature
Charge temperature
Storage temperature
Recommended storage voltage
Max Charging Power
Typical cycle life
Weight
Input voltage
Maximum input current
Maximum output current
Output voltage
* New batteries, fully charged and at room temperature. Flights performed at approximately 0 m (0 feet)
above sea level at outside temperature of approximately 15 °C (59° F), no wind, slow and steady flight
maneuvers, no hovering. All measurements done at International Standard Atmosphere (ISA). Other factors
may also influence the results.
®
TM
Intel Falcon F8+
75°/s
50°
45°
Wireless Communication
2.4 GHz adaptive FHSS link with 100 mW
Low latency digital link. 5.1 Ghz to 5.8 GHz with 
24 dBM / 250 mW (FCC compliant version).
Resolution depending on payload up to 1080 p Full HD
Intel Cockpit Controller (CTR)
320 x 380 x 135 mm(12.60 x 14.96 x 5.31 in)
2.7 kg (5.95 lbs) (w/o battery) 
3.1 kg (6.83 lbs) (with battery)
1 x Intel Powerpack Battery
2 h
-5 °C to 45 °C (23 °F to 113 °F)
5 °C to 25 °C (41 °F to 77 °F)
Size 8.3'', resolution 1980 x 1200 px
4 x USB, 1 x HDMI
Intel Powerpack Battery
LiPo (Lithium Polymer) 4S
4000 mAh
14.8 V
59.2 Wh
-10 °C to 40 °C (14 °F to 104 °F)
Recommended: 10 °C to 30 °C (50 °F to 86 °F)
Max.: 5 °C to 40 °C (41 °F to 104 °F)
5 °C to 25 °C (41 °F to 77 °F)
3.7 V per cell
80 W
150 cycles
398 g (14 oz) (tolerance +/- 5%)
AC Adapter (charger for Powerpack PP4000)
100-240 V, 50/60 Hz
1.5 A
4.74 A
19.0 V
