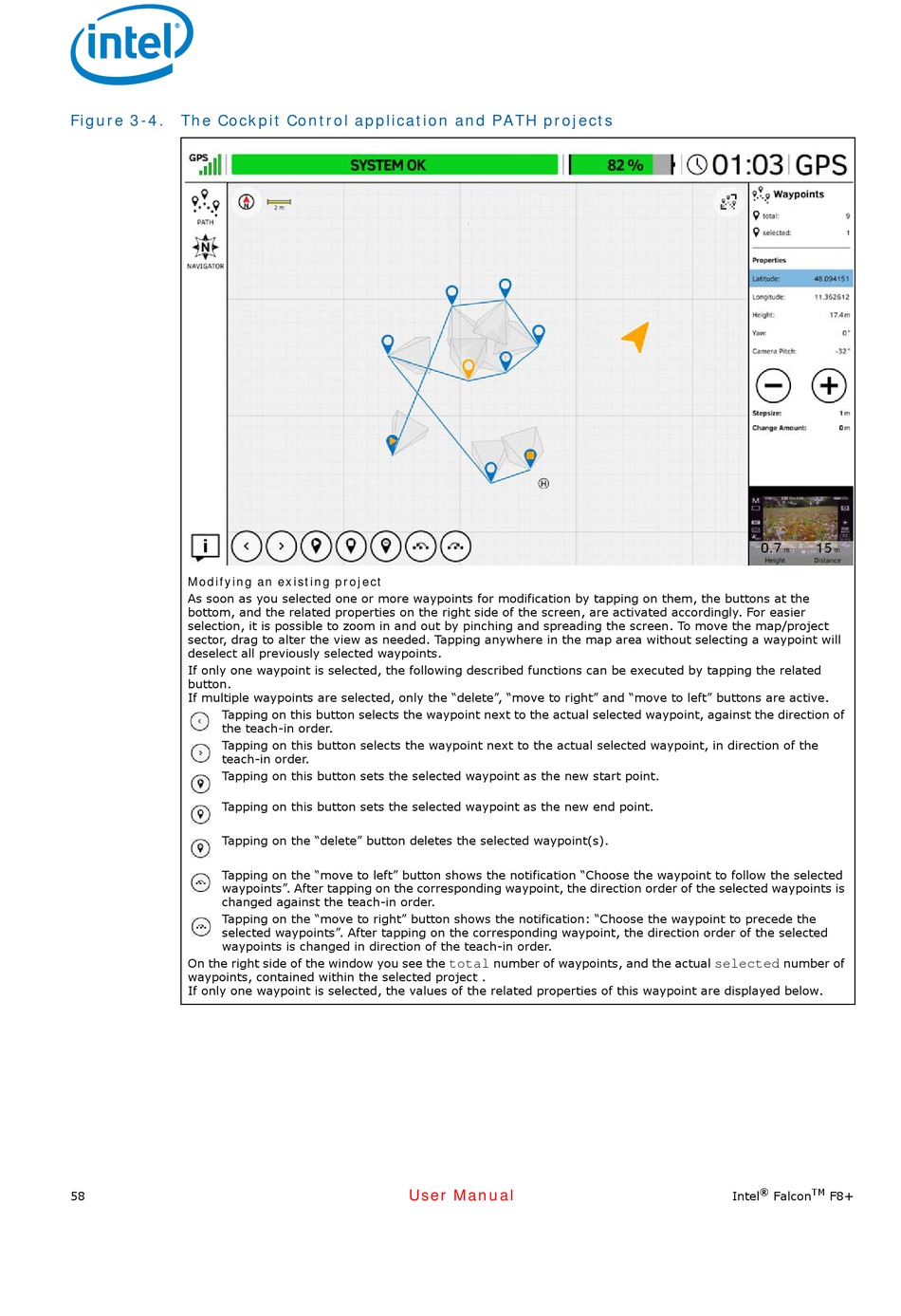

Figure 3-4. The Cockpit Control application and PATH projects
Modifying an existing project
As soon as you selected one or more waypoints for modification by tapping on them, the buttons at the
bottom, and the related properties on the right side of the screen, are activated accordingly. For easier
selection, it is possible to zoom in and out by pinching and spreading the screen. To move the map/project
sector, drag to alter the view as needed. Tapping anywhere in the map area without selecting a waypoint will
deselect all previously selected waypoints.
If only one waypoint is selected, the following described functions can be executed by tapping the related
button.
If multiple waypoints are selected, only the "delete", "move to right" and "move to left" buttons are active.
Tapping on this button selects the waypoint next to the actual selected waypoint, against the direction of
the teach-in order.
Tapping on this button selects the waypoint next to the actual selected waypoint, in direction of the
teach-in order.
Tapping on this button sets the selected waypoint as the new start point.
Tapping on this button sets the selected waypoint as the new end point.
Tapping on the "delete" button deletes the selected waypoint(s).
Tapping on the "move to left" button shows the notification "Choose the waypoint to follow the selected
waypoints". After tapping on the corresponding waypoint, the direction order of the selected waypoints is
changed against the teach-in order.
Tapping on the "move to right" button shows the notification: "Choose the waypoint to precede the
selected waypoints". After tapping on the corresponding waypoint, the direction order of the selected
waypoints is changed in direction of the teach-in order.
On the right side of the window you see the
waypoints, contained within the selected project .
If only one waypoint is selected, the values of the related properties of this waypoint are displayed below.
58
number of waypoints, and the actual
