• In windy conditions the UAV may not always fly in a straight line between two
waypoints. Plan the mission accordingly.
• Always plan missions with enough height above ground. The UAV may temporarily
lose as much as 5 meters of height when flying between waypoints (due to
variations in barometric air pressure - drift in sensor values). Due to these
variations, it is recommended to plan missions at a height of at least 15 meters
above the highest object.

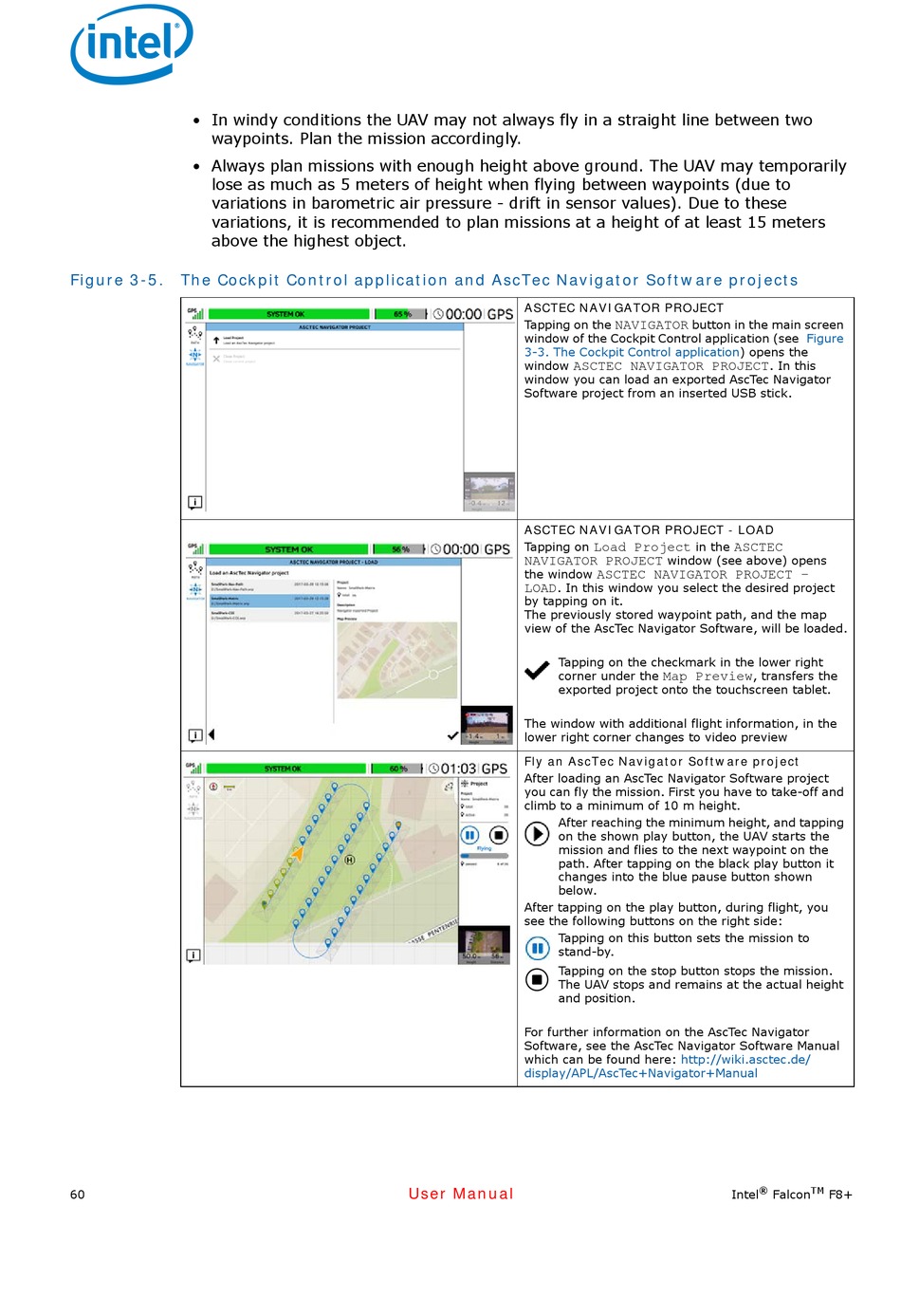

Figure 3-5. The Cockpit Control application and AscTec Navigator Software projects
60
ASCTEC NAVIGATOR PROJECT
Tapping on the
window of the Cockpit Control application (see
3-3. The Cockpit Control
window
ASCTEC NAVIGATOR PROJECT
window you can load an exported AscTec Navigator
Software project from an inserted USB stick.
ASCTEC NAVIGATOR PROJECT - LOAD
Tapping on
NAVIGATOR PROJECT
the window
. In this window you select the desired project
LOAD
by tapping on it.
The previously stored waypoint path, and the map
view of the AscTec Navigator Software, will be loaded.
Tapping on the checkmark in the lower right
corner under the
exported project onto the touchscreen tablet.
The window with additional flight information, in the
lower right corner changes to video preview
Fly an AscTec Navigator Software project
After loading an AscTec Navigator Software project
you can fly the mission. First you have to take-off and
climb to a minimum of 10 m height.
After reaching the minimum height, and tapping
on the shown play button, the UAV starts the
mission and flies to the next waypoint on the
path. After tapping on the black play button it
changes into the blue pause button shown
below.
After tapping on the play button, during flight, you
see the following buttons on the right side:
Tapping on this button sets the mission to
stand-by.
Tapping on the stop button stops the mission.
The UAV stops and remains at the actual height
and position.
For further information on the AscTec Navigator
Software, see the AscTec Navigator Software Manual
which can be found here:
display/APL/AscTec+Navigator+Manual
User Manual
button in the main screen
NAVIGATOR
application) opens the
in the
Load Project ASCTEC
window (see above) opens
ASCTEC NAVIGATOR PROJECT -
, transfers the
Map Preview
http://wiki.asctec.de/
®
