2.5.3

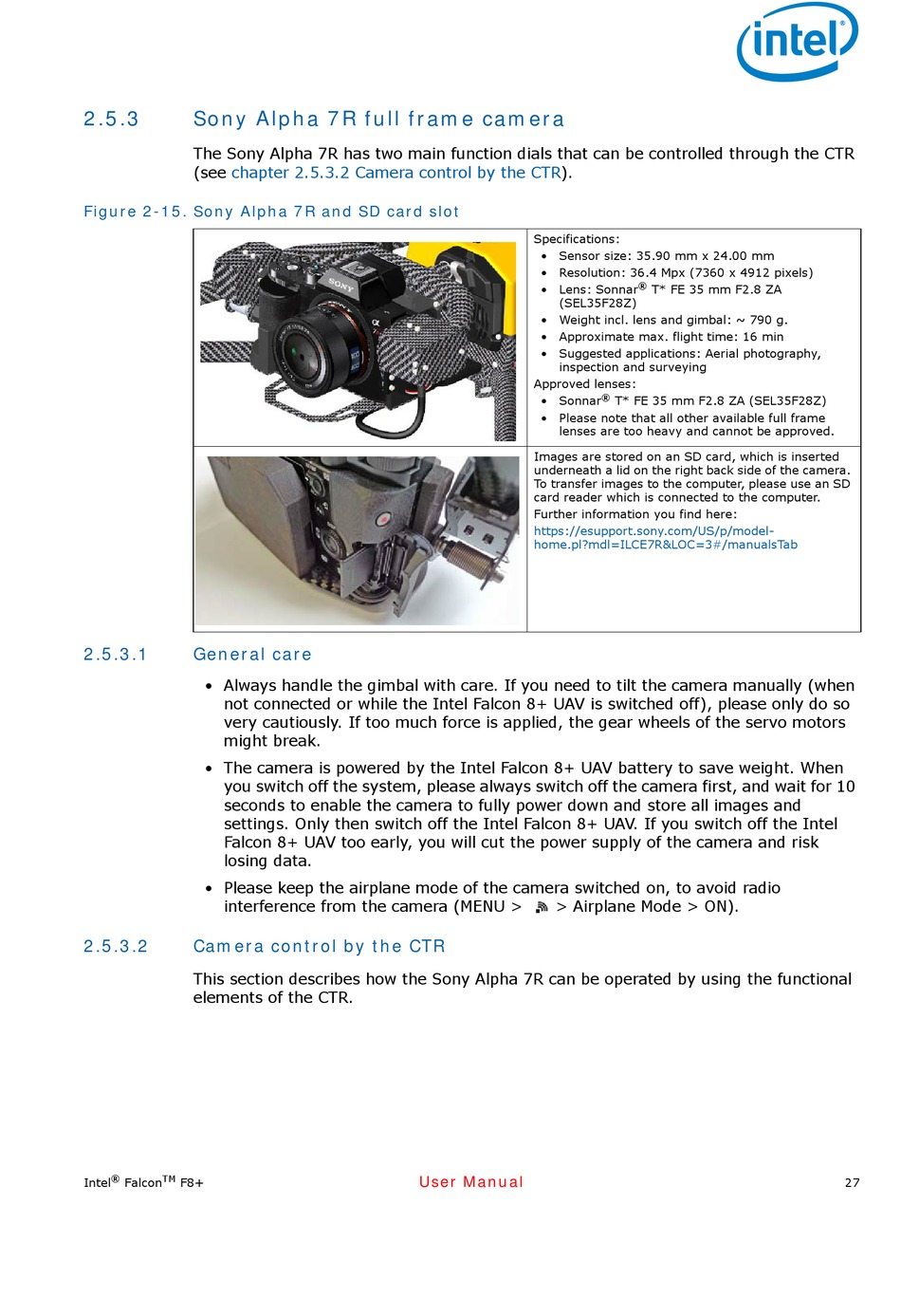

Sony Alpha 7R full frame camera

The Sony Alpha 7R has two main function dials that can be controlled through the CTR
(see
chapter 2.5.3.2 Camera control by the
Figure 2-15. Sony Alpha 7R and SD card slot
2.5.3.1

General care

• Always handle the gimbal with care. If you need to tilt the camera manually (when
not connected or while the Intel Falcon 8+ UAV is switched off), please only do so
very cautiously. If too much force is applied, the gear wheels of the servo motors
might break.
• The camera is powered by the Intel Falcon 8+ UAV battery to save weight. When
you switch off the system, please always switch off the camera first, and wait for 10
seconds to enable the camera to fully power down and store all images and
settings. Only then switch off the Intel Falcon 8+ UAV. If you switch off the Intel
Falcon 8+ UAV too early, you will cut the power supply of the camera and risk
losing data.
• Please keep the airplane mode of the camera switched on, to avoid radio
interference from the camera (MENU >
2.5.3.2

Camera control by the CTR

This section describes how the Sony Alpha 7R can be operated by using the functional
elements of the CTR.
®
TM
Intel
Falcon
F8+
CTR).
Specifications:
• Sensor size: 35.90 mm x 24.00 mm
• Resolution: 36.4 Mpx (7360 x 4912 pixels)
• Lens: Sonnar
(SEL35F28Z)
• Weight incl. lens and gimbal: ~ 790 g.
• Approximate max. flight time: 16 min
• Suggested applications: Aerial photography,
inspection and surveying
Approved lenses:
• Sonnar
• Please note that all other available full frame
lenses are too heavy and cannot be approved.
Images are stored on an SD card, which is inserted
underneath a lid on the right back side of the camera.
To transfer images to the computer, please use an SD
card reader which is connected to the computer.
Further information you find here:
https://esupport.sony.com/US/p/model-
home.pl?mdl=ILCE7R&LOC=3#/manualsTab
> Airplane Mode > ON).
User Manual
®
T* FE 35 mm F2.8 ZA
®
T* FE 35 mm F2.8 ZA (SEL35F28Z)
27
