Intel Aero Getting Started

Intel Aero Getting Started

Ready to fly drone
Hide thumbs Also See for Aero:

Advertisement

Quick Links

Download this manual
The Intel Aero Ready to Fly Drone is a pre-assembled quadcopter that is purposely built for professional drone
application developers to enable you to get your applications airborne quickly.
This development platform is intended to be modified by developers according to their professional judgment. Intel
has not established operating limitations for the kit or tested any configurations other than the base configuration that
is shipped as configured from the factory. Developers are responsible for testing and ensuring the safety of their own
configurations, and establishing the operating limits of those configurations.
You should already have experience flying aircrafts via remote control using Manual flight mode which requires control
of the drone with a two-gimbal joystick controller similar to the one included with the Intel Aero Ready to Fly Drone.
Box Contents:
This Getting Started Guide
Terms & Conditions of Use and Important Safety Information
Instruction manual for Spektrum DXe Transmitter
Pre-assembled quad-copter airframe**
2 sets of snap-on propellers: "A" (x4) and "B" (x4)
Spektrum* DXe Transmitter (2.4GHz DSMX*)
4 AA alkaline batteries for Spektrum DXe Transmitter
**Battery not included. Recommended Battery: Li-Po, 4000 - 4500 mAh, 4S, with XT60 connector.
Safety for the Battery: The Operator is responsible for obtaining a battery and battery charger which are certified for use in the
Operator's country of operation. The Operator is responsible for proper use of the battery and battery charger per the
manufacturer's safety guidelines.
1. Read the Terms & Conditions of Use and Important Safety Information document (included in the box) before
operating the drone.
2. Experienced pilots can begin flying immediately after following these steps:
a.
Attach a Battery
i. Insert a battery inside the center cavity of the drone's airframe with cables extending out toward the
rear of the drone as shown in Figure 1.
ii. Tighten the restraining strap around the battery to secure the battery as close to the center of the
airframe as possible.
iii. Connect the battery cable to the drone using the XT60 connector
Thank you for purchasing the
Intel® Aero Ready to Fly Drone!
Getting Started

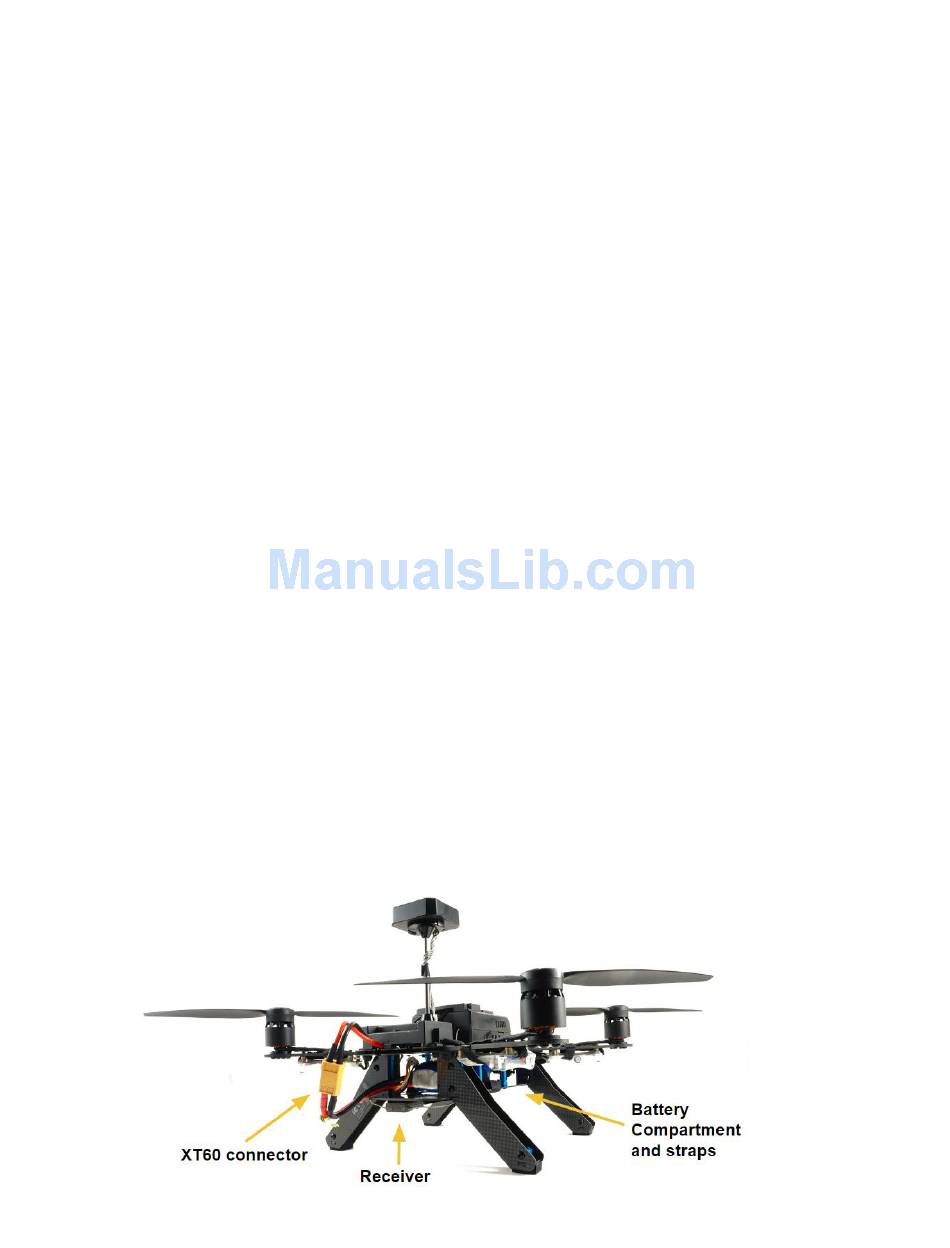

Figure 1. Intel Aero Ready to Fly Drone
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Aero and is the answer not in the manual?

Questions and answers

Related Manuals for Intel Aero

Summary of Contents for Intel Aero

  • Page 1 You should already have experience flying aircrafts via remote control using Manual flight mode which requires control of the drone with a two-gimbal joystick controller similar to the one included with the Intel Aero Ready to Fly Drone. Box Contents: ...
  • Page 2 b. Set up the GPS Antenna (see Figure 2) i. Raise the GPS antenna mast 90 until vertical then tighten the antenna base cover Figure 2. Raising the GPS Antenna Mast Attach the propellers (see Figure 3 ) i. Identify propellers marked as “A” and “B” on top of the propeller blade. ii.
  • Page 3 d. Prepare the remote control transmitter (see Figure 4) i. Install the 4 AA alkaline batteries in the transmitter. ii. Flip all toggle switches UP or AWAY from the pilot. The Flight Mode switch should be set to Manual (mode 0) until you arm the motors in Step 3.d. iii.
  • Page 4 b. Turn ON the Drone i. Press the power button on the drone (Figure 5) for about 1 second. The two blue LEDs immediately adjacent to the power button will illuminate a steady blue and the cooling fan will spin. Power Button Blue LEDs Power Indication...
  • Page 5 d. Arming and Disarming the Motors The following instructions assume default factory settings. If you modify the Flight Mode configurations, these instructions may not apply. i. Press the left gimbal stick toward the bottom right. Hold for about 2 seconds. (Figure 7 ) The motors will start spinning.
  • Page 6 6. Automated Landing (Optional) The drone is pre-programmed at the factory to RETURN TO HOME if communication between the remote control transmitter and the drone is lost. RETURN TO HOME is an automated landing procedure that will fly the drone from wherever it is when the transmitter’s signal was lost back to the location from where it first took off, subject to remaining battery power.

  • Page 7: Troubleshooting

    TROUBLESHOOTING These troubleshooting tips are for basic usage. For additional troubleshooting tips, please visit the Intel Aero Platform Community Support Forum https://communities.intel.com/community/tech/intel-aero The GPS antenna mast cannot The antenna hinge may be stiff.
  • Page 8 2. QGroundControl Application (qgroundcontrol.com) – for calibration, configuration, and telemetry: The Intel Aero Ready to Fly Drone was tuned, calibrated, and flight tested before it shipped from the factory. It is ready to fly. Flight performance may improve by calibrating the drone again using the QGroundControl application to take into account modifications made to the drone and for magnetic fields specific to your flight location.
  • Page 9 * Intel and the Intel logo are trademarks of Intel Corporation in the U.S. and/or other countries. Other names and brands may be claimed as the property of others.
  • Page 10 For more information about flying, programming, and troubleshooting, please visit our website: www.intel.com/aero/drone-dev-kit J45356-003...
  • Page 11 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Intel 82634CRARPLTRTF 82634CRAPRTFC...
