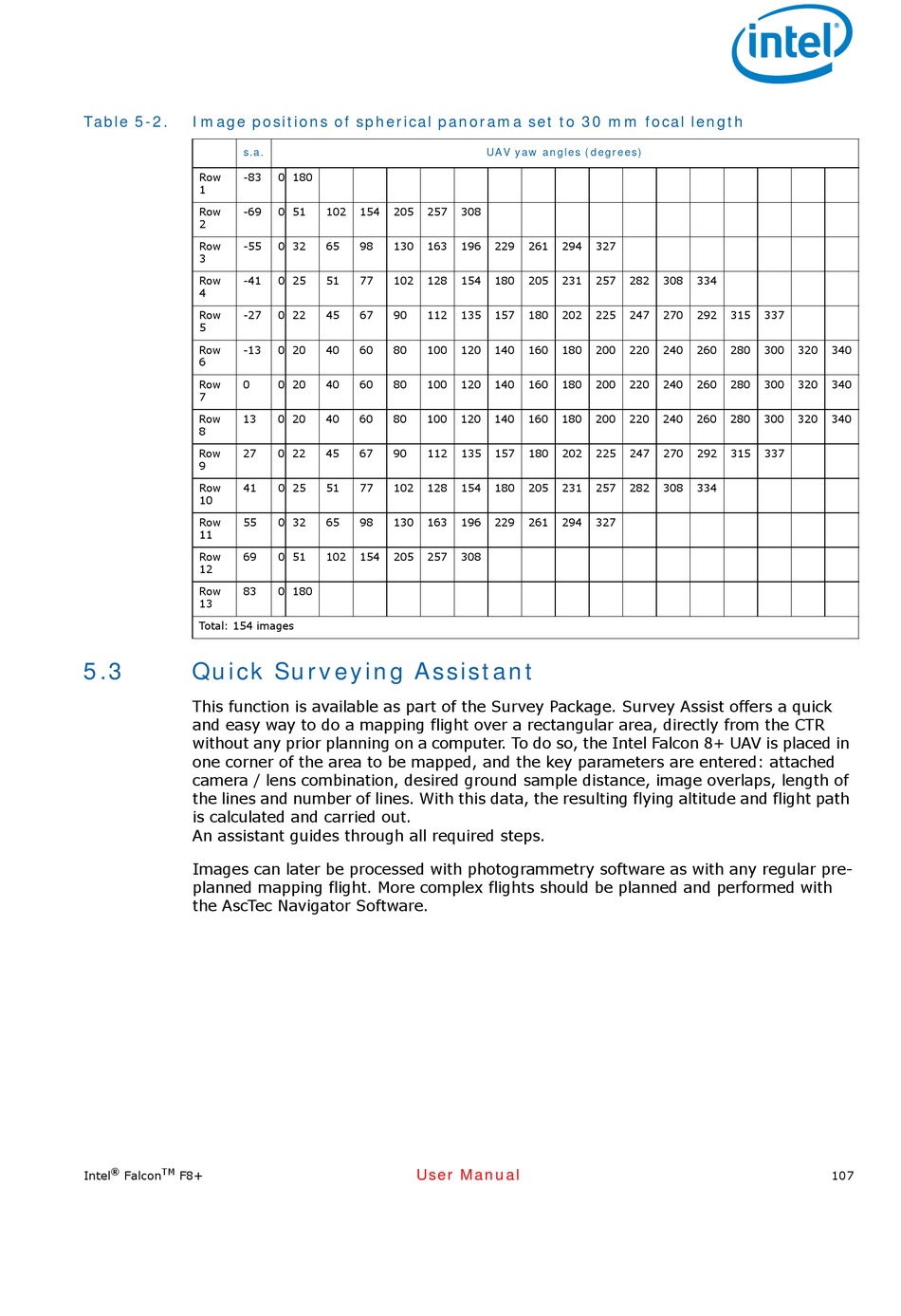

Table 5-2. Image positions of spherical panorama set to 30 mm focal length
s.a.
Row -83
1
Row -69
2
Row -55
3
Row -41
4
Row -27
5
Row -13
6
Row 0
7
Row 13
8
Row 27
9
Row 41
10
Row 55
11
Row 69
12
Row 83
13
Total: 154 images
5.3

Quick Surveying Assistant

This function is available as part of the Survey Package. Survey Assist offers a quick
and easy way to do a mapping flight over a rectangular area, directly from the CTR
without any prior planning on a computer. To do so, the Intel Falcon 8+ UAV is placed in
one corner of the area to be mapped, and the key parameters are entered: attached
camera / lens combination, desired ground sample distance, image overlaps, length of
the lines and number of lines. With this data, the resulting flying altitude and flight path
is calculated and carried out. 
An assistant guides through all required steps.
Images can later be processed with photogrammetry software as with any regular pre-
planned mapping flight. More complex flights should be planned and performed with
the AscTec Navigator Software.
®
TM
Intel Falcon F8+
0 180
0 51 102 154 205 257
0 32 65 98 130 163
0 25 51 77 102 128
0 22 45 67 90 112
0 20 40 60 80 100
0 20 40 60 80 100
0 20 40 60 80 100
0 22 45 67 90 112
0 25 51 77 102 128
0 32 65 98 130 163
0 51 102 154 205 257
0 180
User Manual
UAV yaw angles (degrees)
308
196 229 261 294 327
154 180 205 231 257 282
135 157 180 202 225 247
120 140 160 180 200 220
120 140 160 180 200 220
120 140 160 180 200 220
135 157 180 202 225 247
154 180 205 231 257 282
196 229 261 294 327
308
308 334
270 292 315 337
240 260 280 300 320 340
240 260 280 300 320 340
240 260 280 300 320 340
270 292 315 337
308 334
107
