Inspection Payload - Intel Falcon 8+ User Manual

2.5.4

Inspection Payload

The Inspection Payload consists of two cameras: Panasonic RGB camera and IR
(infrared) camera FLIR TAU 2 640.
• Weight of the complete payload including gimbal: 550 g
• Approximate max. flight time: approx. 18 min

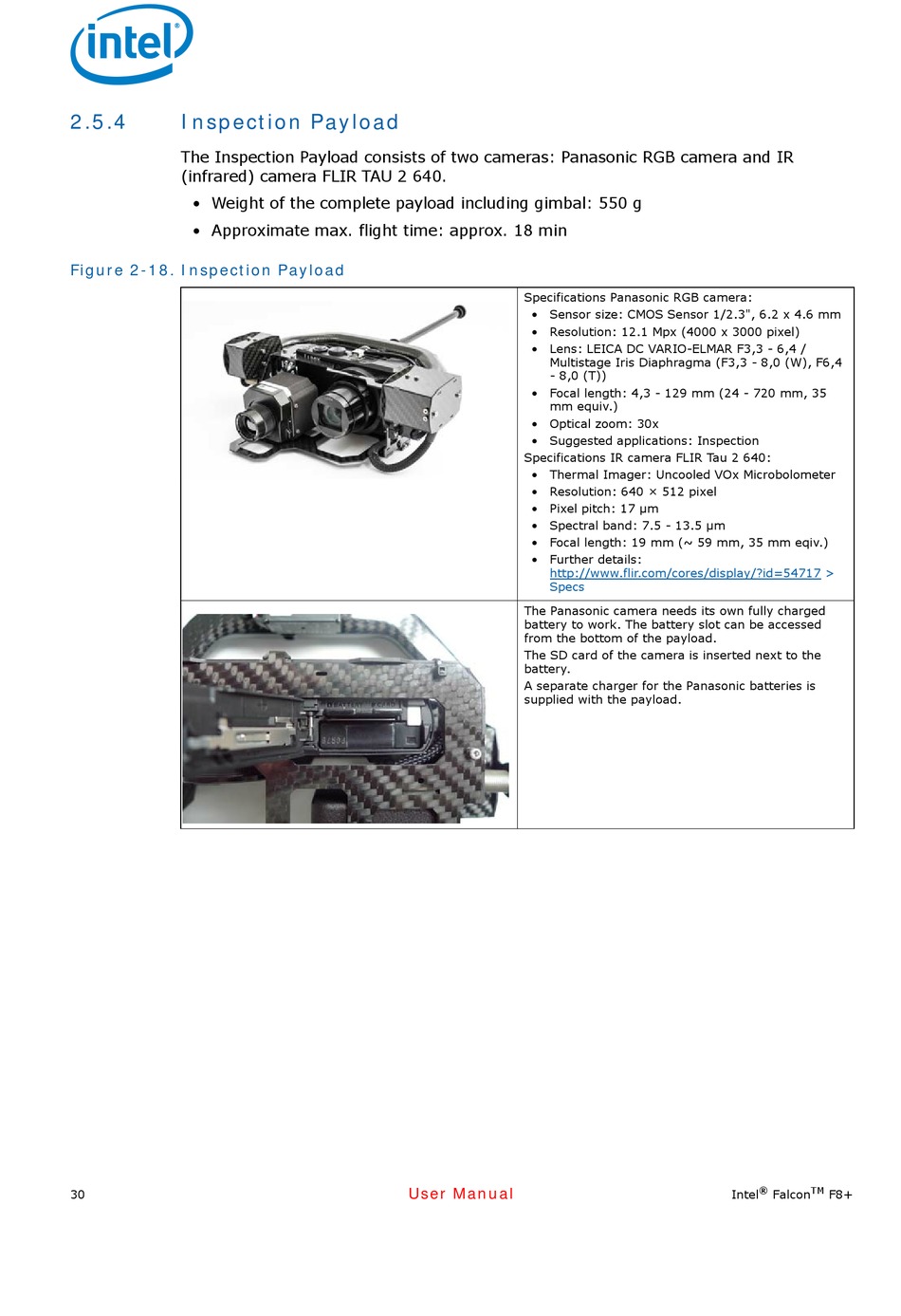

Figure 2-18. Inspection Payload
30
Specifications Panasonic RGB camera:
• Sensor size: CMOS Sensor 1/2.3", 6.2 x 4.6 mm
• Resolution: 12.1 Mpx (4000 x 3000 pixel)
• Lens: LEICA DC VARIO-ELMAR F3,3 - 6,4 /
Multistage Iris Diaphragma (F3,3 - 8,0 (W), F6,4
- 8,0 (T))
• Focal length: 4,3 - 129 mm (24 - 720 mm, 35
mm equiv.)
• Optical zoom: 30x
• Suggested applications: Inspection
Specifications IR camera FLIR Tau 2 640:
• Thermal Imager: Uncooled VOx Microbolometer
• Resolution: 640 × 512 pixel
• Pixel pitch: 17 μm
• Spectral band: 7.5 - 13.5 μm
• Focal length: 19 mm (~ 59 mm, 35 mm eqiv.)
• Further details: 
http://www.flir.com/cores/display/?id=54717 >
Specs
The Panasonic camera needs its own fully charged
battery to work. The battery slot can be accessed
from the bottom of the payload.
The SD card of the camera is inserted next to the
battery.
A separate charger for the Panasonic batteries is
supplied with the payload.
