Intel Falcon 8+ User Manual page 94

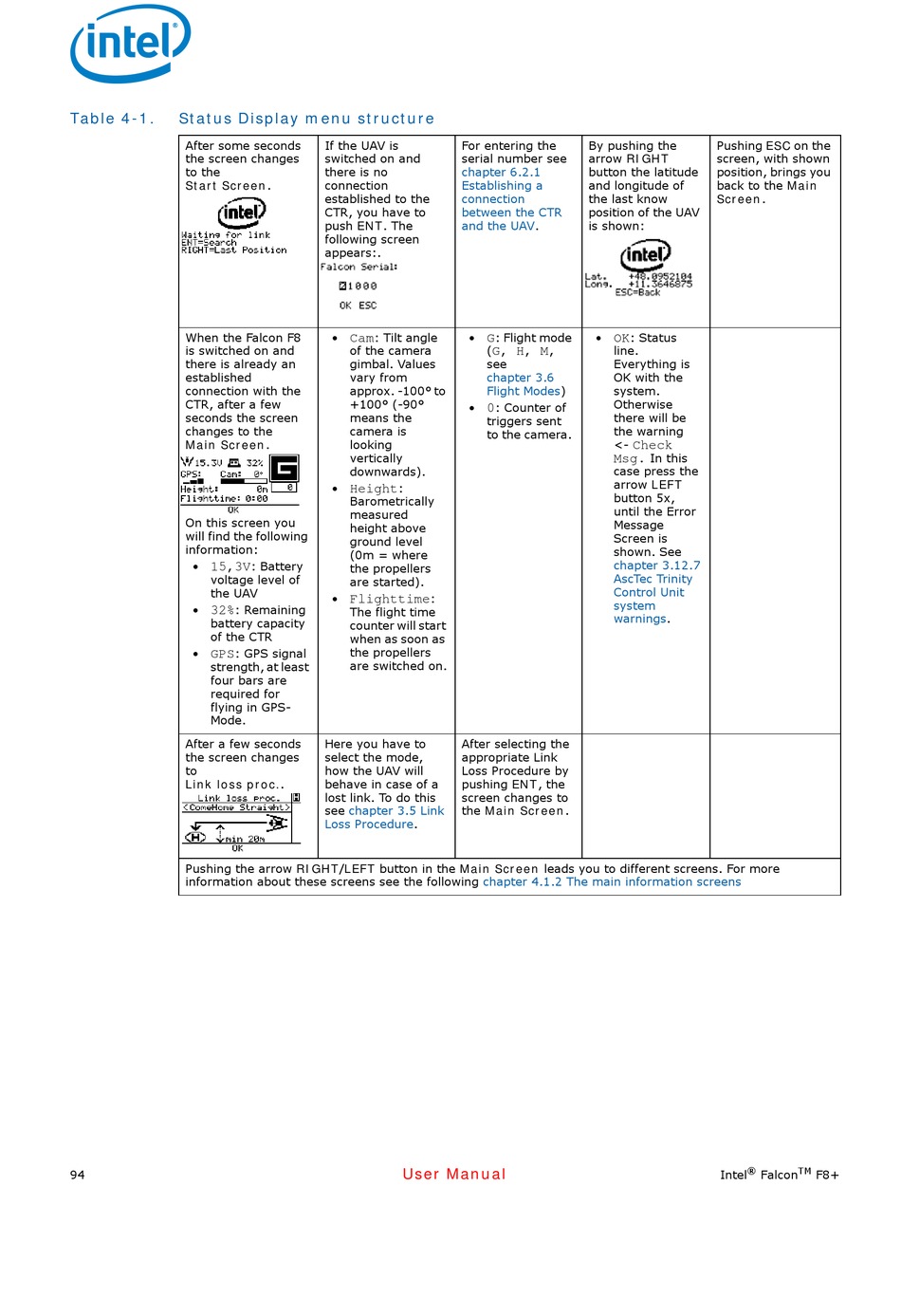

Table 4-1. Status Display menu structure
After some seconds
the screen changes
to the
Start Screen.
When the Falcon F8
is switched on and
there is already an
established
connection with the
CTR, after a few
seconds the screen
changes to the
Main Screen.
On this screen you
will find the following
information:
•
15,3V
voltage level of
the UAV
• : Remaining
32%
battery capacity
of the CTR
• : GPS signal
GPS
strength, at least
four bars are
required for
flying in GPS-
Mode.
After a few seconds
the screen changes
to
Link loss proc..
Pushing the arrow RIGHT/LEFT button in the Main Screen leads you to different screens. For more
information about these screens see the following
94
If the UAV is
switched on and
there is no
connection
established to the
CTR, you have to
push ENT. The
following screen
appears:.
• : Tilt angle
Cam
of the camera
gimbal. Values
vary from
approx. -100° to
+100° (-90°
means the
camera is
looking
vertically
downwards).
• :
Height
Barometrically
measured
height above
ground level
(0m = where
: Battery
the propellers
are started).
•
Flighttime
The flight time
counter will start
when as soon as
the propellers
are switched on.
Here you have to
select the mode,
how the UAV will
behave in case of a
lost link. To do this
see chapter 3.5 Link
Loss Procedure.
User Manual
For entering the By pushing the
serial number see arrow RIGHT
chapter 6.2.1 button the latitude
Establishing a and longitude of
connection the last know
between the CTR position of the UAV
and the UAV. is shown:
• : Flight mode •
G
(
G, H, M,
see
chapter 3.6
Flight Modes)
• : Counter of
0
triggers sent
to the camera.
:
After selecting the
appropriate Link
Loss Procedure by
pushing ENT, the
screen changes to
the Main Screen.
chapter 4.1.2 The main information screens
Pushing ESC on the
screen, with shown
position, brings you
back to the Main
Screen.
: Status
OK
line.
Everything is
OK with the
system.
Otherwise
there will be
the warning 
<-
Check
In this
Msg.
case press the
arrow LEFT
button 5x,
until the Error
Message
Screen is
shown. See
chapter 3.12.7
AscTec Trinity
Control Unit
system
warnings.
®
Intel Falcon
TM
F8+
