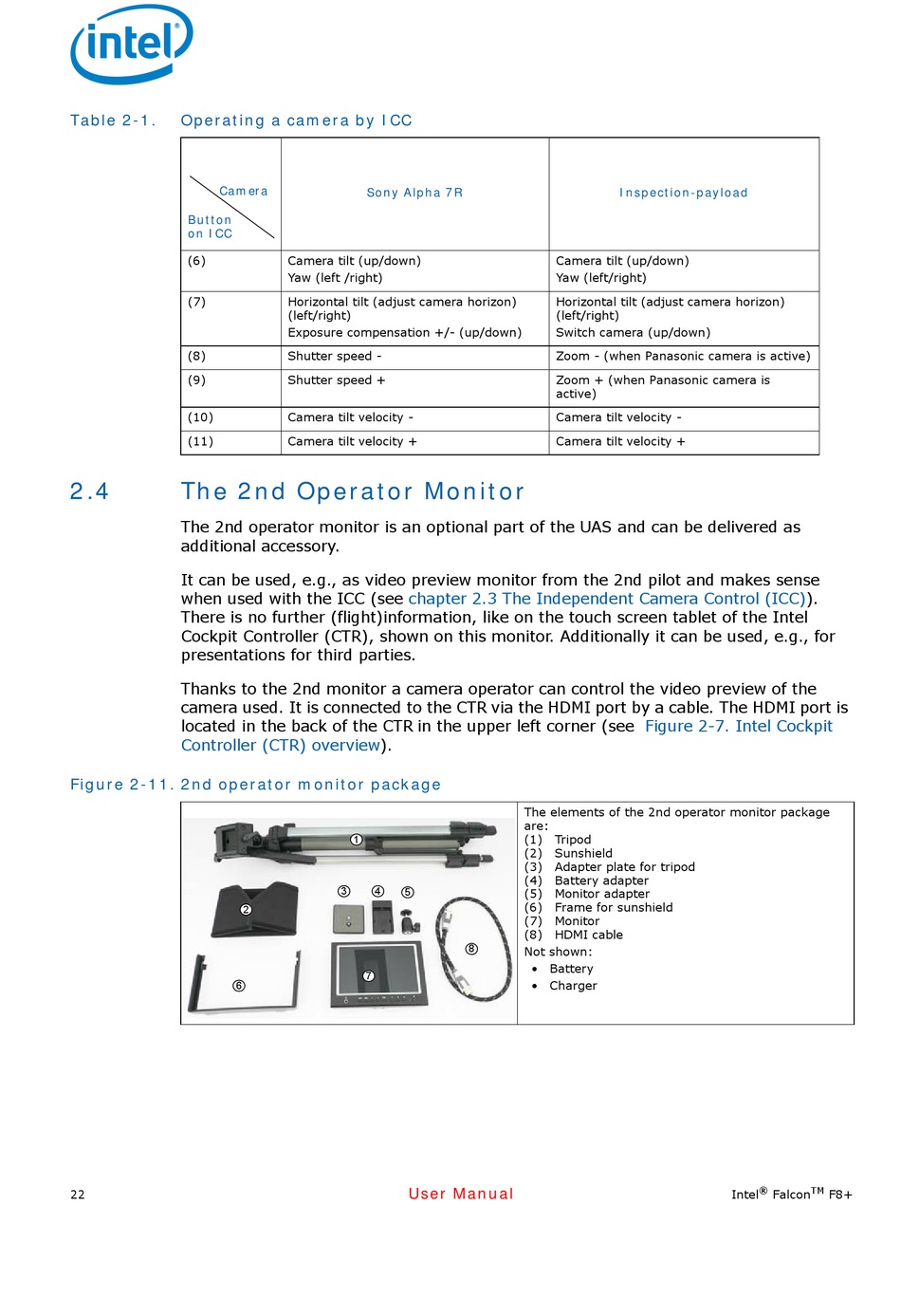

The 2nd Operator Monitor

The 2nd operator monitor is an optional part of the UAS and can be delivered as
additional accessory.
It can be used, e.g., as video preview monitor from the 2nd pilot and makes sense
when used with the ICC (see
There is no further (flight)information, like on the touch screen tablet of the Intel
Cockpit Controller (CTR), shown on this monitor. Additionally it can be used, e.g., for
presentations for third parties.
Thanks to the 2nd monitor a camera operator can control the video preview of the
camera used. It is connected to the CTR via the HDMI port by a cable. The HDMI port is
located in the back of the CTR in the upper left corner (see
Controller (CTR)
Figure 2-11. 2nd operator monitor package
6
22
Sony Alpha 7R
Camera tilt (up/down)
Yaw (left /right)
Horizontal tilt (adjust camera horizon)
(left/right)
Exposure compensation +/- (up/down)
Shutter speed -
Shutter speed +
Camera tilt velocity -
Camera tilt velocity +
chapter 2.3 The Independent Camera Control
overview).
1
3 4
5
2
7
User Manual
Inspection-payload
Camera tilt (up/down)
Yaw (left/right)
Horizontal tilt (adjust camera horizon)
(left/right)
Switch camera (up/down)
Zoom - (when Panasonic camera is active)
Zoom + (when Panasonic camera is
active)
Camera tilt velocity -
Camera tilt velocity +
The elements of the 2nd operator monitor package
are:
(1) Tripod
(2) Sunshield
(3) Adapter plate for tripod
(4) Battery adapter
(5) Monitor adapter
(6) Frame for sunshield
(7) Monitor
(8) HDMI cable
8
