2.7 Transport Cases & Intel Backpack
The transport set consists of different cases with precision water jet cut inlays designed
for the Intel Falcon 8+ UAS with all its accessories. For easy one-man transportation,
they have a retractable handles and wheels (only Intel Falcon 8+ UAV case). The Intel
Backpack is not safe for air freighting, but very useful for missions in remote areas,
since it is light and relatively compact.

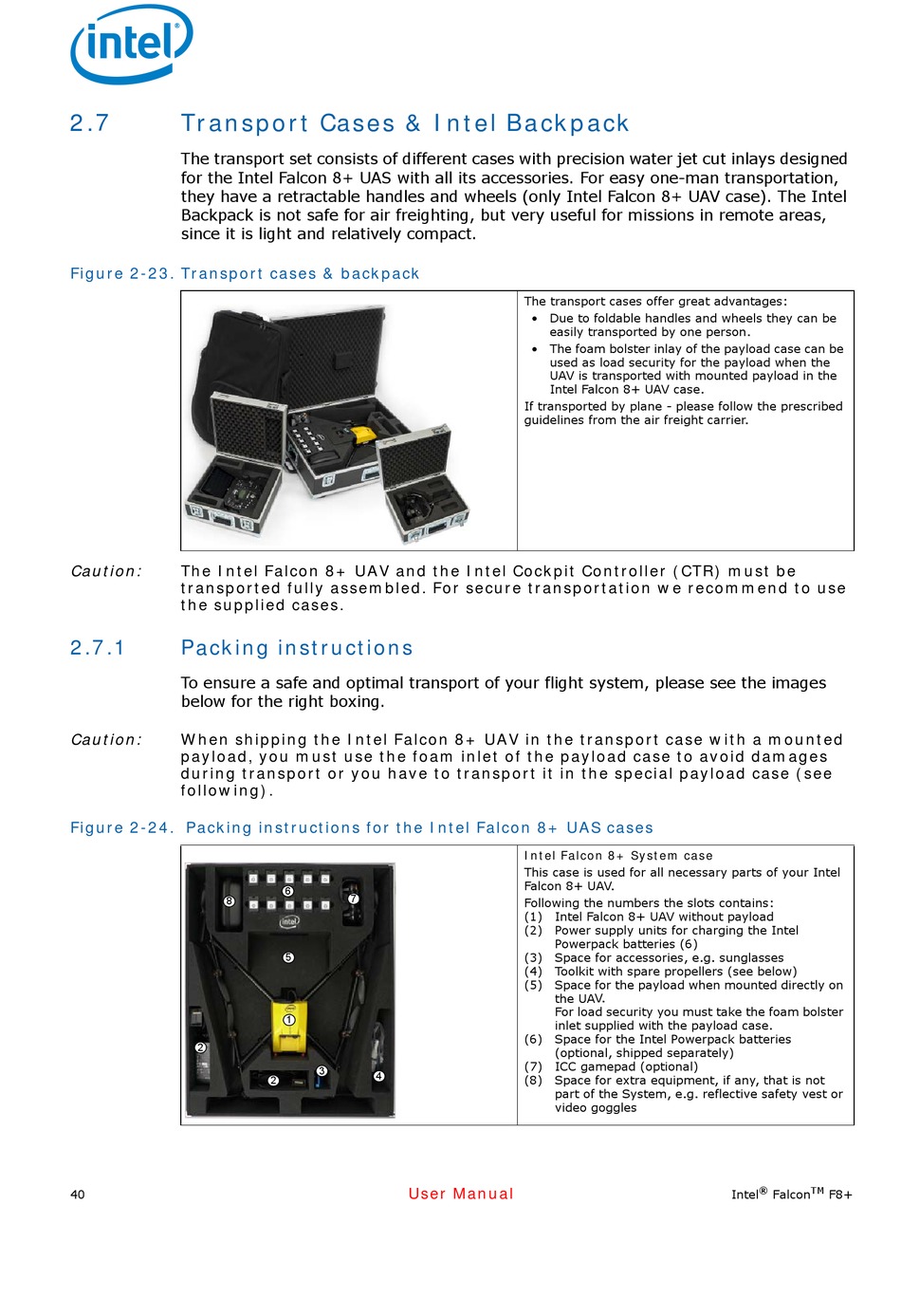

Figure 2-23. Transport cases & backpack
Caution: The Intel Falcon 8+ UAV and the Intel Cockpit Controller (CTR) must be
transported fully assembled. For secure transportation we recommend to use
the supplied cases.
2.7.1

Packing instructions

To ensure a safe and optimal transport of your flight system, please see the images
below for the right boxing.
Caution: When shipping the Intel Falcon 8+ UAV in the transport case with a mounted
payload, you must use the foam inlet of the payload case to avoid damages
during transport or you have to transport it in the special payload case (see
following).
Figure 2-24. Packing instructions for the Intel Falcon 8+ UAS cases
8
2
40
6
7
5
1
3
4
2
User Manual
The transport cases offer great advantages:
• Due to foldable handles and wheels they can be
easily transported by one person.
• The foam bolster inlay of the payload case can be
used as load security for the payload when the
UAV is transported with mounted payload in the
Intel Falcon 8+ UAV case.
If transported by plane - please follow the prescribed
guidelines from the air freight carrier.
Intel Falcon 8+ System case
This case is used for all necessary parts of your Intel
Falcon 8+ UAV.
Following the numbers the slots contains:
(1) Intel Falcon 8+ UAV without payload
(2) Power supply units for charging the Intel
Powerpack batteries (6)
(3) Space for accessories, e.g. sunglasses
(4) Toolkit with spare propellers (see below)
(5) Space for the payload when mounted directly on
the UAV.
For load security you must take the foam bolster
inlet supplied with the payload case.
(6) Space for the Intel Powerpack batteries
(optional, shipped separately)
(7) ICC gamepad (optional)
(8) Space for extra equipment, if any, that is not
part of the System, e.g. reflective safety vest or
video goggles
®
