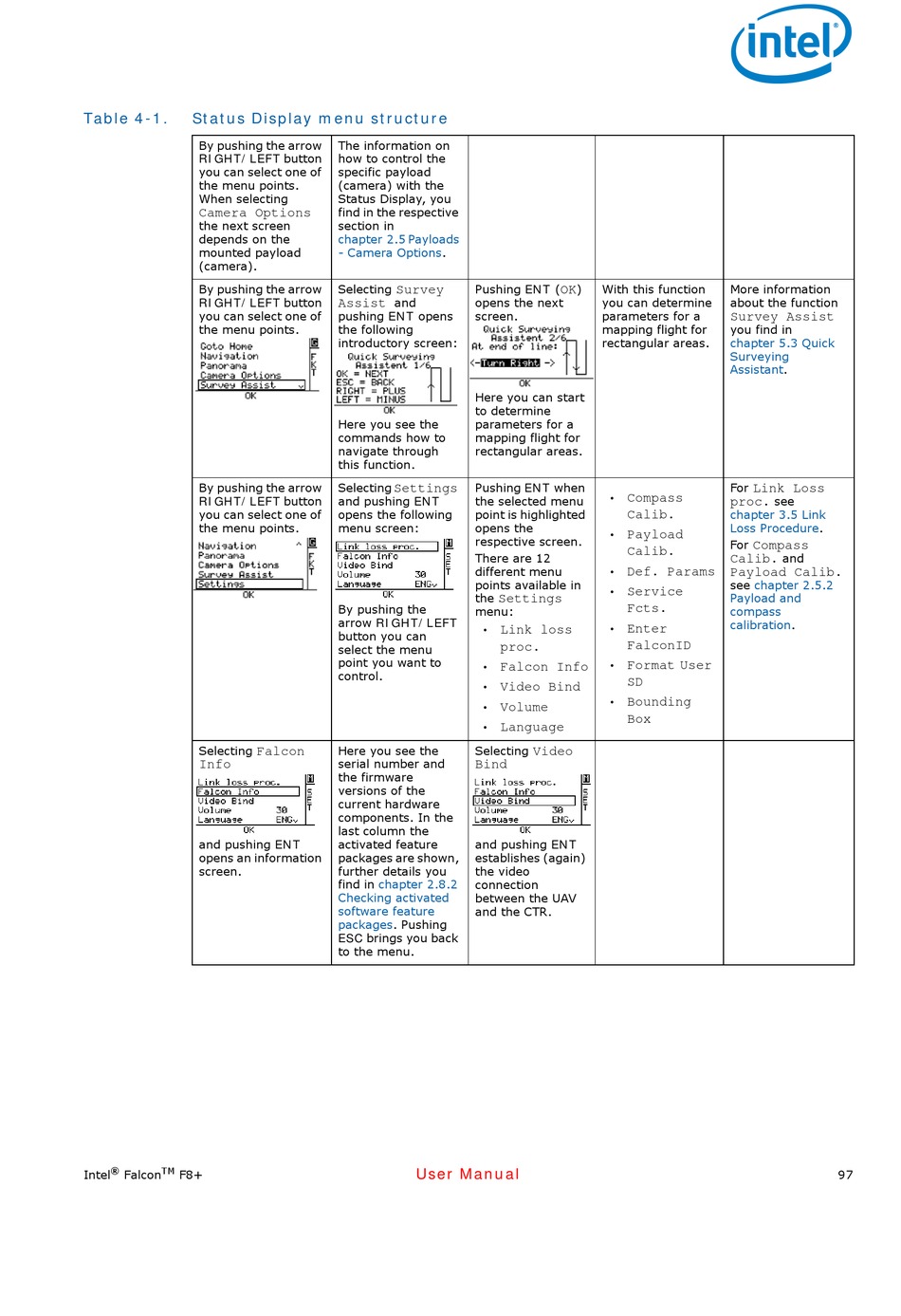

Table 4-1. Status Display menu structure
By pushing the arrow
RIGHT/LEFT button
you can select one of
the menu points.
When selecting
Camera Options
the next screen
depends on the
mounted payload
(camera).
By pushing the arrow
RIGHT/LEFT button
you can select one of
the menu points.
By pushing the arrow
RIGHT/LEFT button
you can select one of
the menu points.
Selecting
Info
and pushing ENT
opens an information
screen.
®
TM
Intel Falcon F8+
The information on
how to control the
specific payload
(camera) with the
Status Display, you
find in the respective
section in
chapter 2.5 Payloads
- Camera Options.
Selecting
Survey
and
Assist
pushing ENT opens
the following
introductory screen:
Here you see the
commands how to
navigate through
this function.
Selecting
Settings
and pushing ENT
opens the following
menu screen:
By pushing the
arrow RIGHT/LEFT
button you can
select the menu
point you want to
control.
Here you see the
Falcon
serial number and
the firmware
versions of the
current hardware
components. In the
last column the
activated feature
packages are shown,
further details you
find in chapter 2.8.2
Checking activated
software feature
packages. Pushing
ESC brings you back
to the menu.
User Manual
Pushing ENT ( ) With this function
OK
opens the next you can determine
screen. parameters for a
mapping flight for
rectangular areas.
Here you can start
to determine
parameters for a
mapping flight for
rectangular areas.
Pushing ENT when
the selected menu • Compass
point is highlighted
Calib.
opens the
• Payload
respective screen.
Calib.
There are 12
different menu
• Def. Params
points available in
• Service
the
Settings
menu: Fcts.
• Enter
• Link loss
FalconID
proc.
• Format User
• Falcon Info
SD
• Video Bind
• Bounding
• Volume
Box
• Language
Selecting
Video
Bind
and pushing ENT
establishes (again)
the video
connection
between the UAV
and the CTR.
More information
about the function
Survey Assist
you find in
chapter 5.3 Quick
Surveying
Assistant.
For
Link Loss
see
proc.
chapter 3.5 Link
Loss Procedure.
For
Compass
and
Calib.
Payload Calib.
see chapter 2.5.2
Payload and
compass
calibration.
