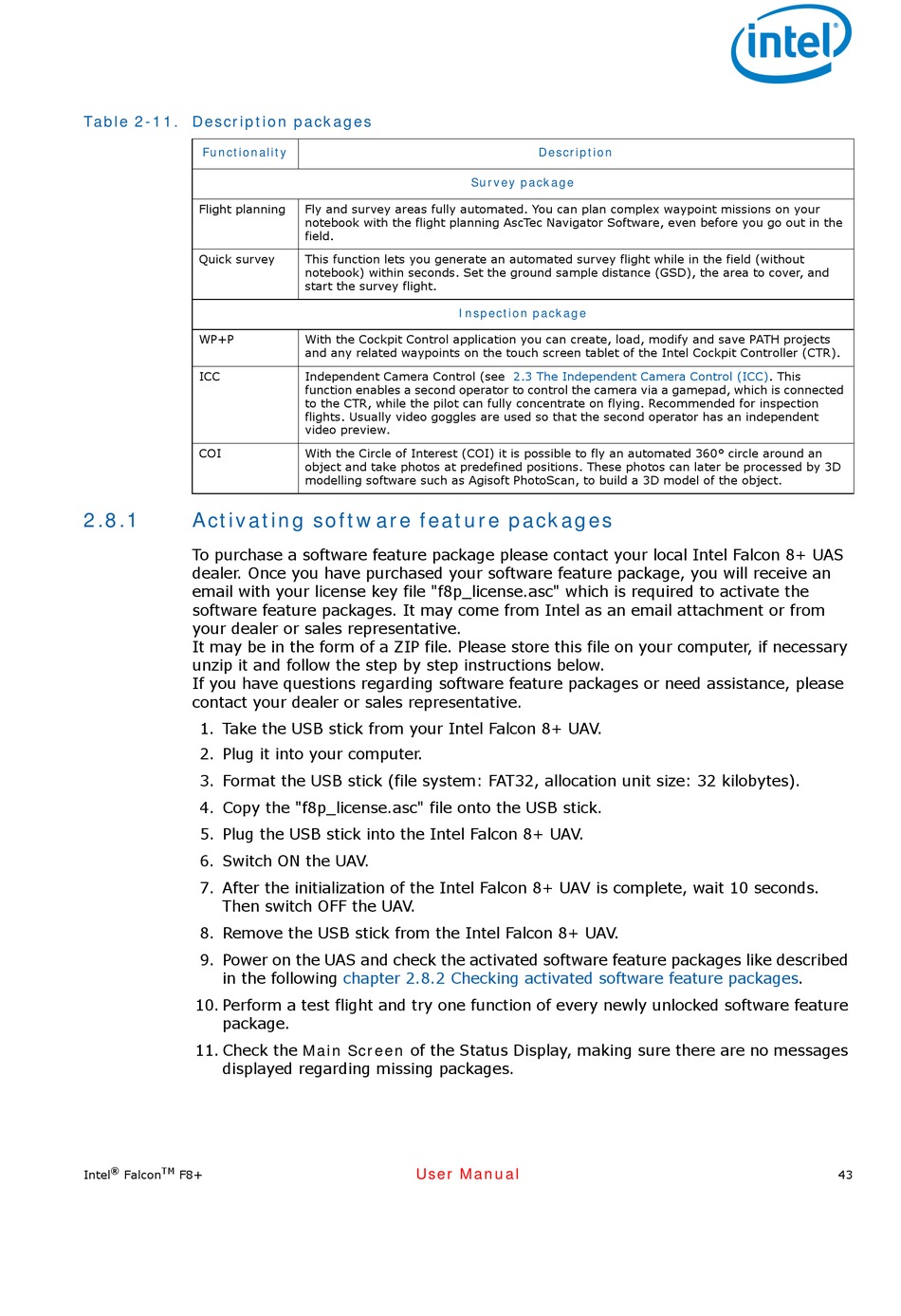

Activating Software Feature Packages - Intel Falcon 8+ User Manual


Table 2-11. Description packages
Functionality
Flight planning
Quick survey
WP+P
ICC
COI
2.8.1

Activating software feature packages

To purchase a software feature package please contact your local Intel Falcon 8+ UAS
dealer. Once you have purchased your software feature package, you will receive an
email with your license key file "f8p_license.asc" which is required to activate the
software feature packages. It may come from Intel as an email attachment or from
your dealer or sales representative.
It may be in the form of a ZIP file. Please store this file on your computer, if necessary
unzip it and follow the step by step instructions below. 
If you have questions regarding software feature packages or need assistance, please
contact your dealer or sales representative.
1. Take the USB stick from your Intel Falcon 8+ UAV.
2. Plug it into your computer.
3. Format the USB stick (file system: FAT32, allocation unit size: 32 kilobytes).
4. Copy the "f8p_license.asc" file onto the USB stick.
5. Plug the USB stick into the Intel Falcon 8+ UAV.
6. Switch ON the UAV.
7. After the initialization of the Intel Falcon 8+ UAV is complete, wait 10 seconds.
Then switch OFF the UAV.
8. Remove the USB stick from the Intel Falcon 8+ UAV.
9. Power on the UAS and check the activated software feature packages like described
in the following
10. Perform a test flight and try one function of every newly unlocked software feature
package.
11. Check the Main Screen of the Status Display, making sure there are no messages
displayed regarding missing packages.
®
TM
Intel Falcon F8+
Survey package
Fly and survey areas fully automated. You can plan complex waypoint missions on your
notebook with the flight planning AscTec Navigator Software, even before you go out in the
field.
This function lets you generate an automated survey flight while in the field (without
notebook) within seconds. Set the ground sample distance (GSD), the area to cover, and
start the survey flight.
Inspection package
With the Cockpit Control application you can create, load, modify and save PATH projects
and any related waypoints on the touch screen tablet of the Intel Cockpit Controller (CTR).
Independent Camera Control (see
function enables a second operator to control the camera via a gamepad, which is connected
to the CTR, while the pilot can fully concentrate on flying. Recommended for inspection
flights. Usually video goggles are used so that the second operator has an independent
video preview.
With the Circle of Interest (COI) it is possible to fly an automated 360° circle around an
object and take photos at predefined positions. These photos can later be processed by 3D
modelling software such as Agisoft PhotoScan, to build a 3D model of the object.
chapter 2.8.2 Checking activated software feature
User Manual
Description
2.3 The Independent Camera Control (ICC). This
packages.
43
