Intel Aero Manual

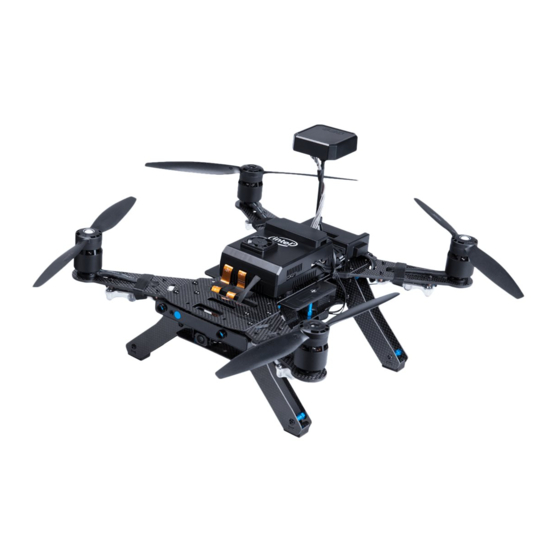

Intel Aero Ready to Fly UAV
KEY AIRCRAFT AND SYSTEMS NOTES
Specifications
● Voltage Input 11.1 - 14.8V
● Intel Aero Compute Board
● Intel® AtomTM x7-Z8750 processor, 4 GB
LPDDR3-1600, 32 GB eMMC
● Dual Band Wireless-AC 8260
● MicroSD slot
● M.2 connector 1 lane PCIe for SSD
● USB 3.0 OTG
● Programmable I/O via Altera Max 10 FPGA
● Insyde Software InsydeH2O UEFI BIOS
optimized for Aero Platform
● Dronecode PX4 autopilot (STM32 MCU, MAVLink
protocol over HSUART)
● Sensors
○ Intel RealSense camera (R200)
○ 8MP RGB camera (front-facing)
○ down-facing monochrome VGA camera w/
global shutter
○ 6 degrees of freedom (DoF) inertial
measurement unit (IMU)
Use Notes
Use credible brand lithium-Ion polymer (Li-Po) 4 cell 14.4v (4S) 4000mAh+ (with XT60 connector).
Charge with credible brand charger. Battery must be secured tightly in the cavity with velcro straps. ​
battery shifts, control may be lost.
Test UAV balance at frame side center points with battery inserted. Adjust forward or backward for
best balance. ​ O ut of balance airframes add pressure to autopilots unnecessarily using battery
capacity to compensate.
GPS array mast may be stiff. Grip mast at center to raise 90​
spins to fully secure.
Attach Yuneec Typhoon H 230mm props noting A and B types:
● A-types attach to motors with black caps by gripping motor and pressing down on the prop and twisting
counter-clockwise (per the arrows on the prop).
● B-types ​ a ttach to motors with white caps by gripping motor and pressing down on the prop and twisting
clockwise (per the arrows on the prop).
○ Magnetometer
○ Altitude
○ GPS
○ compass
● Props Yuneec Typhoon H 230mm
● Spektrum* DSMX* Serial Receiver
● Spektrum DXe Transmitter (2.4GHz DSMX
● Flight time: 20 min (4S 4000mAh battery,
hovering, no added payload)
● Max sustained wind: 15 knots
● Max control range: 300m
● Max airspeed: 15 m/s
● Max operational altitude: 5000msl
● Temperature range (min / max): -0 C / +45 C
● Weight without battery: 865g
● Max takeoff gross weight: 1900g
● Width: 360 mm (hub-to-hub)
● Height: 222 mm (base to top of GPS arra
° ​
. Tightening clamp may take several
I f
