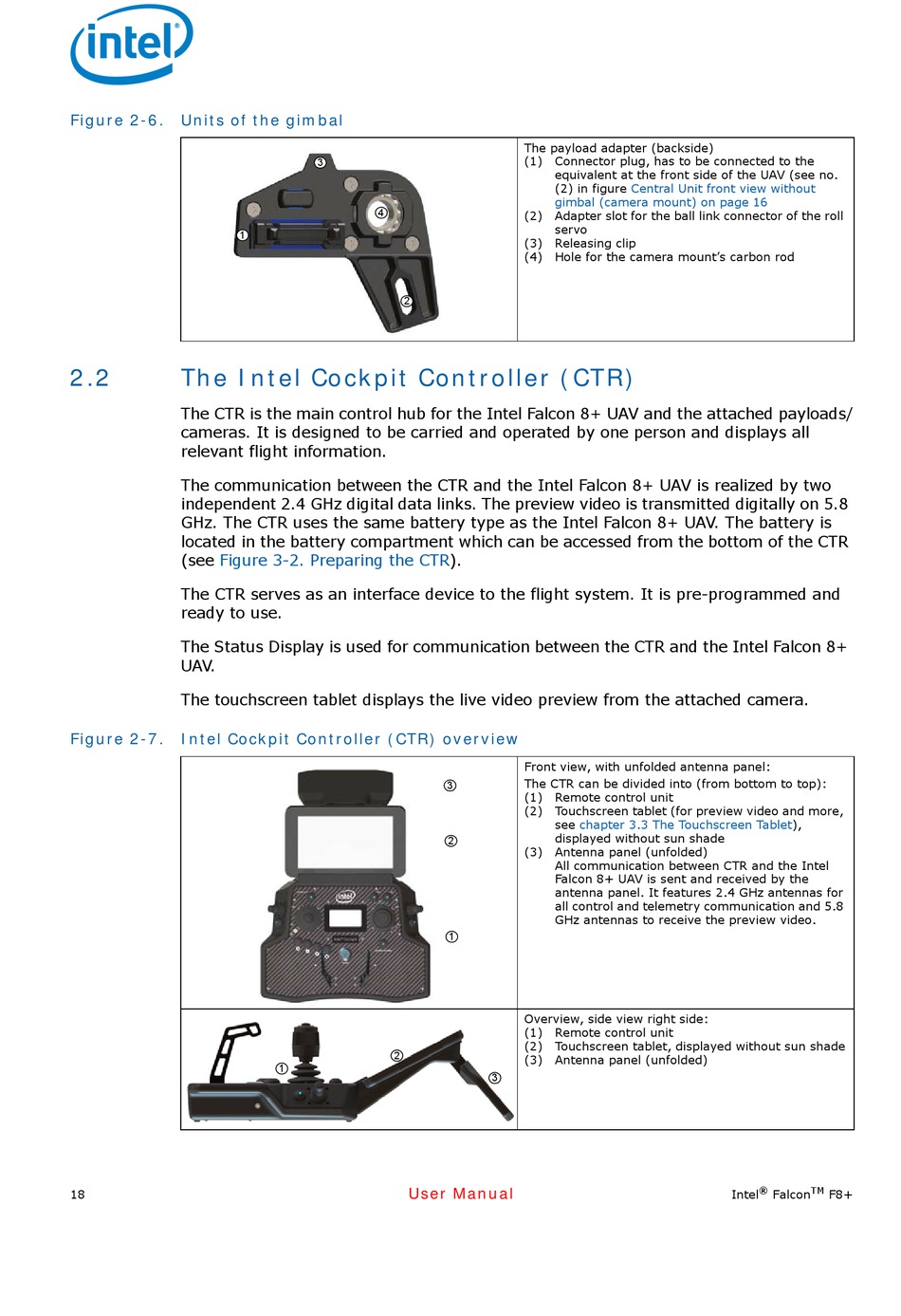

Figure 2-6. Units of the gimbal
1
2.2

The Intel Cockpit Controller (CTR)

The CTR is the main control hub for the Intel Falcon 8+ UAV and the attached payloads/
cameras. It is designed to be carried and operated by one person and displays all
relevant flight information.
The communication between the CTR and the Intel Falcon 8+ UAV is realized by two
independent 2.4 GHz digital data links. The preview video is transmitted digitally on 5.8
GHz. The CTR uses the same battery type as the Intel Falcon 8+ UAV. The battery is
located in the battery compartment which can be accessed from the bottom of the CTR
(see Figure 3-2. Preparing the
The CTR serves as an interface device to the flight system. It is pre-programmed and
ready to use.
The Status Display is used for communication between the CTR and the Intel Falcon 8+
UAV.
The touchscreen tablet displays the live video preview from the attached camera.
Figure 2-7. Intel Cockpit Controller (CTR) overview
18
3
4
2
CTR).
3
2
1
2
1
User Manual
The payload adapter (backside)
(1) Connector plug, has to be connected to the
equivalent at the front side of the UAV (see no.
(2) in figure Central Unit front view without
gimbal (camera mount) on page 16
(2) Adapter slot for the ball link connector of the roll
servo
(3) Releasing clip
(4) Hole for the camera mount's carbon rod
Front view, with unfolded antenna panel:
The CTR can be divided into (from bottom to top):
(1) Remote control unit
(2) Touchscreen tablet (for preview video and more,
see chapter 3.3 The Touchscreen
displayed without sun shade
(3) Antenna panel (unfolded)
All communication between CTR and the Intel
Falcon 8+ UAV is sent and received by the
antenna panel. It features 2.4 GHz antennas for
all control and telemetry communication and 5.8
GHz antennas to receive the preview video.
Overview, side view right side:
(1) Remote control unit
(2) Touchscreen tablet, displayed without sun shade
(3) Antenna panel (unfolded)
