Post-Flight Check - Intel Falcon 8+ User Manual


1.4

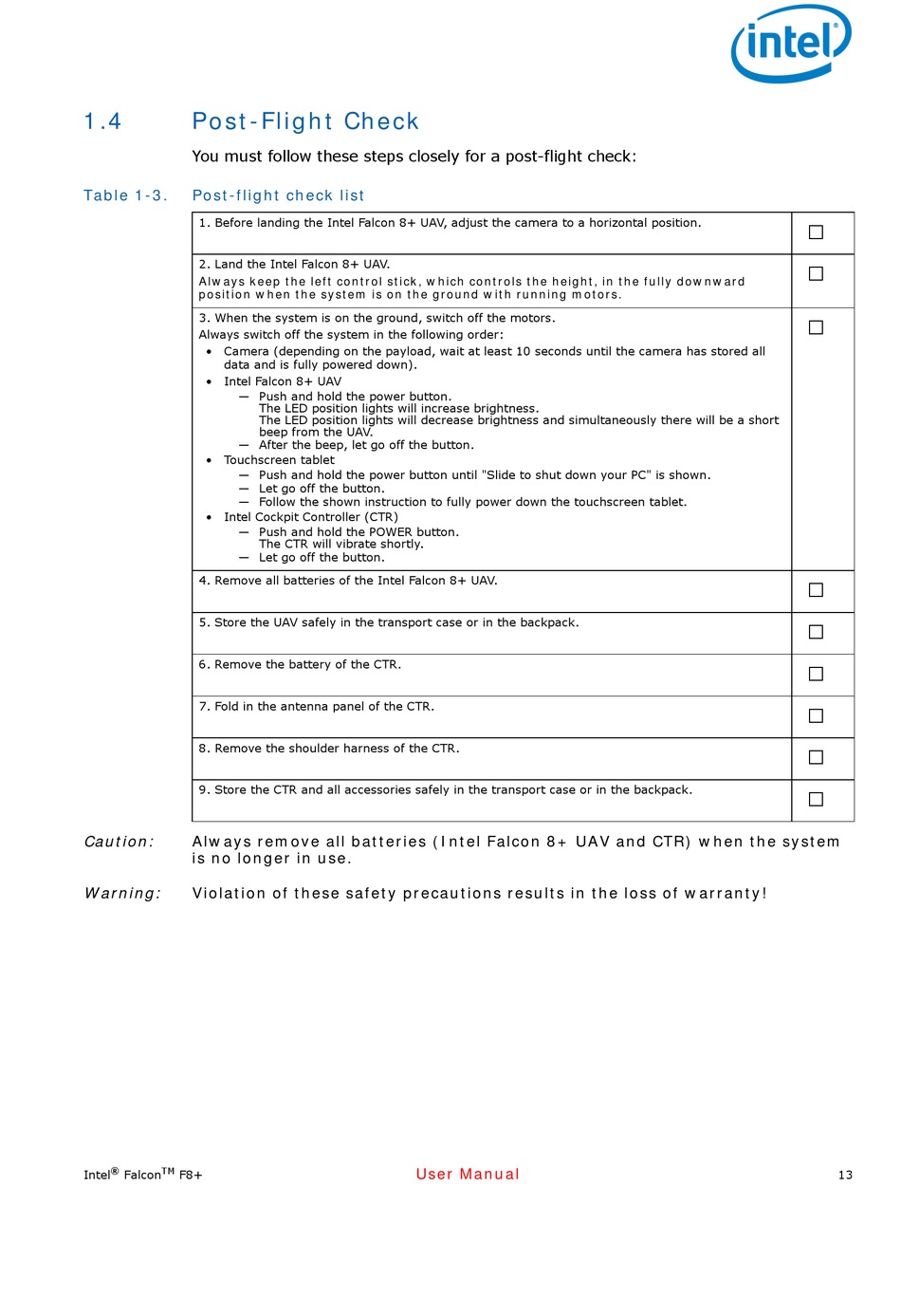

Post-Flight Check

You must follow these steps closely for a post-flight check:
Table 1-3. Post-flight check list
1. Before landing the Intel Falcon 8+ UAV, adjust the camera to a horizontal position.
2. Land the Intel Falcon 8+ UAV.
Always keep the left control stick, which controls the height, in the fully downward
position when the system is on the ground with running motors.
3. When the system is on the ground, switch off the motors.
Always switch off the system in the following order:
• Camera (depending on the payload, wait at least 10 seconds until the camera has stored all
data and is fully powered down).
• Intel Falcon 8+ UAV
— Push and hold the power button.
— After the beep, let go off the button.
• Touchscreen tablet
— Push and hold the power button until "Slide to shut down your PC" is shown.
— Let go off the button.
— Follow the shown instruction to fully power down the touchscreen tablet.
• Intel Cockpit Controller (CTR)
— Push and hold the POWER button. 
— Let go off the button.
4. Remove all batteries of the Intel Falcon 8+ UAV.
5. Store the UAV safely in the transport case or in the backpack.
6. Remove the battery of the CTR.
7. Fold in the antenna panel of the CTR.
8. Remove the shoulder harness of the CTR.
9. Store the CTR and all accessories safely in the transport case or in the backpack.
Caution: Always remove all batteries (Intel Falcon 8+ UAV and CTR) when the system
is no longer in use.
Warning: Violation of these safety precautions results in the loss of warranty!
®
TM
Intel Falcon F8+
The LED position lights will increase brightness.
The LED position lights will decrease brightness and simultaneously there will be a short
beep from the UAV.
The CTR will vibrate shortly.
User Manual
□
□
□
□
□
□
□
□
□
13
