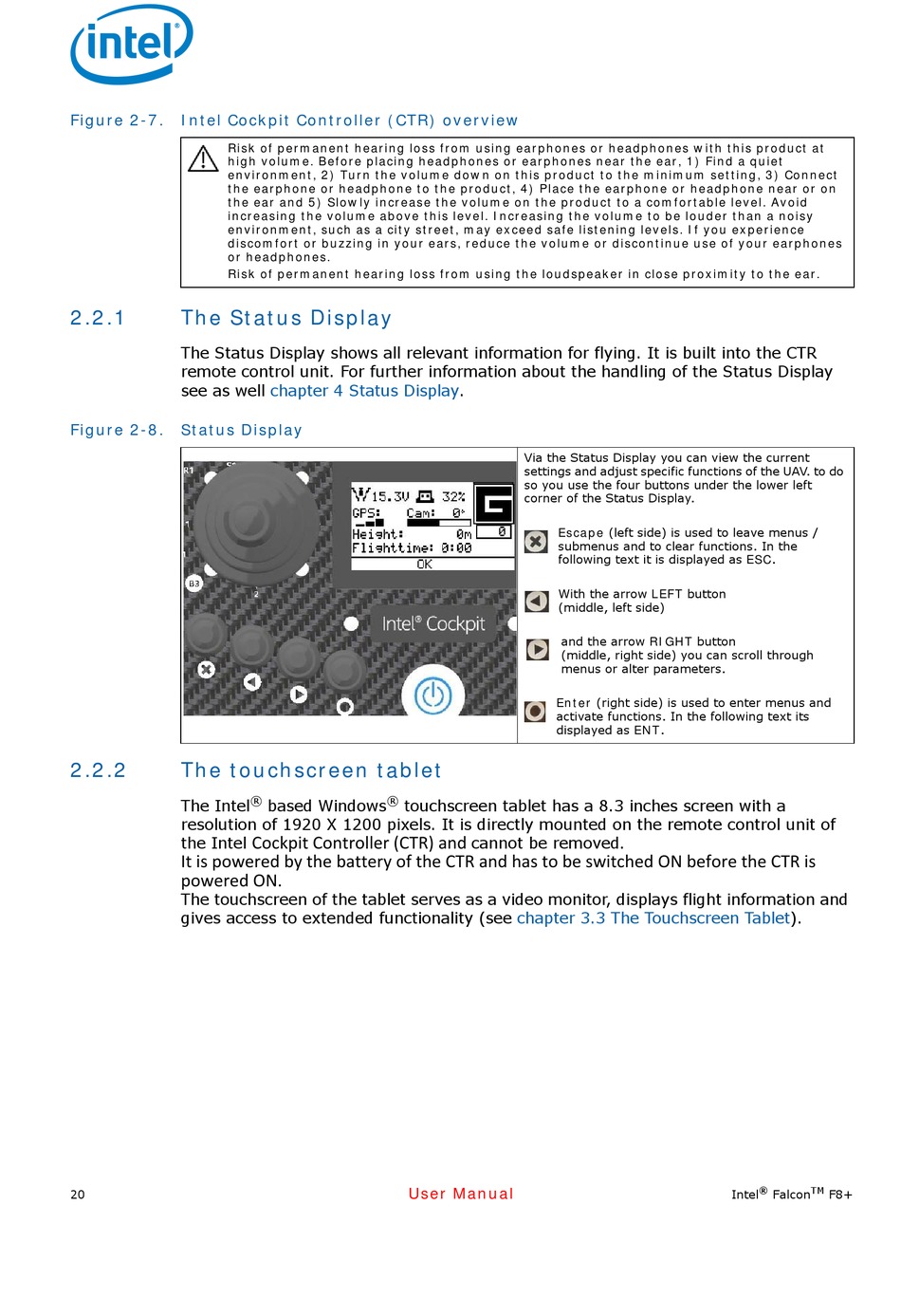

Figure 2-7. Intel Cockpit Controller (CTR) overview
Risk of permanent hearing loss from using earphones or headphones with this product at
high volume. Before placing headphones or earphones near the ear, 1) Find a quiet
environment, 2) Turn the volume down on this product to the minimum setting, 3) Connect
the earphone or headphone to the product, 4) Place the earphone or headphone near or on
the ear and 5) Slowly increase the volume on the product to a comfortable level. Avoid
increasing the volume above this level. Increasing the volume to be louder than a noisy
environment, such as a city street, may exceed safe listening levels. If you experience
discomfort or buzzing in your ears, reduce the volume or discontinue use of your earphones
or headphones.
Risk of permanent hearing loss from using the loudspeaker in close proximity to the ear.
2.2.1

The Status Display

The Status Display shows all relevant information for flying. It is built into the CTR
remote control unit. For further information about the handling of the Status Display
see as well
Figure 2-8. Status Display
2.2.2

The touchscreen tablet

The Intel
resolution of 1920 X 1200 pixels. It is directly mounted on the remote control unit of
the Intel
It is powered by the battery of the CTR and has to be switched ON before the CTR is
powered ON. 
The touchscreen of the tablet serves as a video monitor, displays flight information and
gives access to extended functionality (see
20
chapter 4 Status Display.
® ®
based Windows touchscreen tablet has a 8.3 inches screen with a
Cockpit Controller (CTR) and
User Manual
Via the Status Display you can view the current
settings and adjust specific functions of the UAV. to do
so you use the four buttons under the lower left
corner of the Status Display.
Escape (left side) is used to leave menus /
submenus and to clear functions. In the
following text it is displayed as ESC.
With the arrow LEFT button 
(middle, left side)
and the arrow RIGHT button 
(middle, right side) you can scroll through
menus or alter parameters.
Enter (right side) is used to enter menus and
activate functions. In the following text its
displayed as ENT.
. 
cannot be removed
chapter 3.3 The Touchscreen Tablet).
®
TM
Intel Falcon F8+
