modules. To check for this defect, please test the following if you have a second
CTR / Intel Falcon 8+ UAV available:
a. Take the CTR of the problematic Intel Falcon 8+ UAV, and connect it to a different
Intel Falcon 8+ UAV and repeat the test.
If the issue persists it is very likely the CTR, if the issue disappears it very likely
comes from the Intel Falcon 8+ UAV.
b. Take a new CTR and connect it with the problematic Intel Falcon 8+ UAV and
repeat the test.
If the issue persists it is very likely the Intel Falcon 8+ UAV, if the issue
disappears it very likely is coming from the CTR.
When the issue has been isolated, please contact the support team, describe your
finding precisely and be prepared to provide log files of the flight tests.

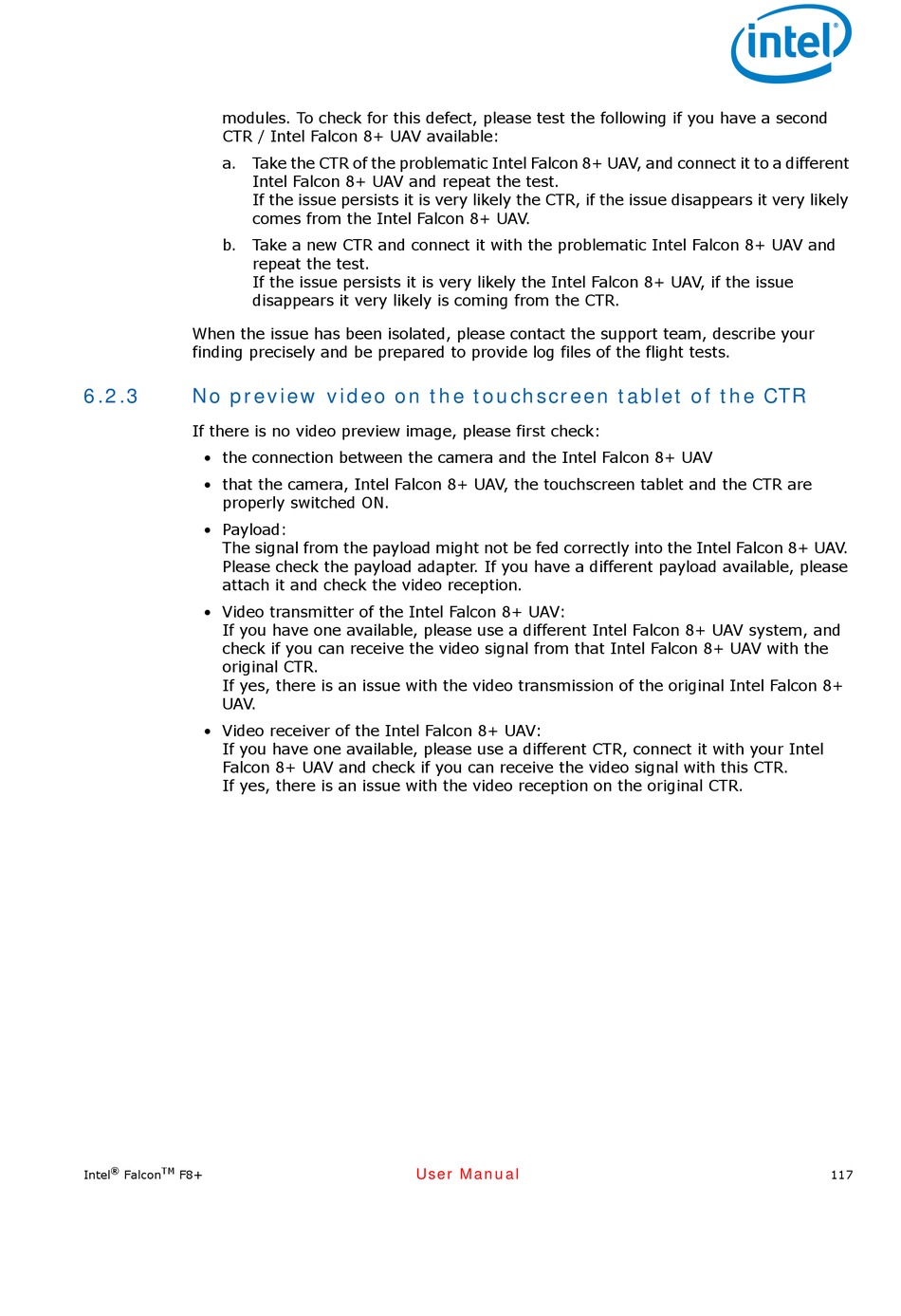

6.2.3

No preview video on the touchscreen tablet of the CTR

If there is no video preview image, please first check:
• the connection between the camera and the Intel Falcon 8+ UAV
• that the camera, Intel Falcon 8+ UAV, the touchscreen tablet and the CTR are
properly switched ON.
• Payload:
The signal from the payload might not be fed correctly into the Intel Falcon 8+ UAV.
Please check the payload adapter. If you have a different payload available, please
attach it and check the video reception.
• Video transmitter of the Intel Falcon 8+ UAV:
If you have one available, please use a different Intel Falcon 8+ UAV system, and
check if you can receive the video signal from that Intel Falcon 8+ UAV with the
original CTR.
If yes, there is an issue with the video transmission of the original Intel Falcon 8+
UAV.
• Video receiver of the Intel Falcon 8+ UAV:
If you have one available, please use a different CTR, connect it with your Intel
Falcon 8+ UAV and check if you can receive the video signal with this CTR.
If yes, there is an issue with the video reception on the original CTR.
®
