Suspensions
The following operations only refer to one fork, but
they apply to both.
•
Support the vehicle at the front, by fas-
tening a suitable belt to the handlebar
and a crane.
•
Position a support under-sump stand
and the rear stand.
•
Remove the front wheel and the front
brake callipers.
•

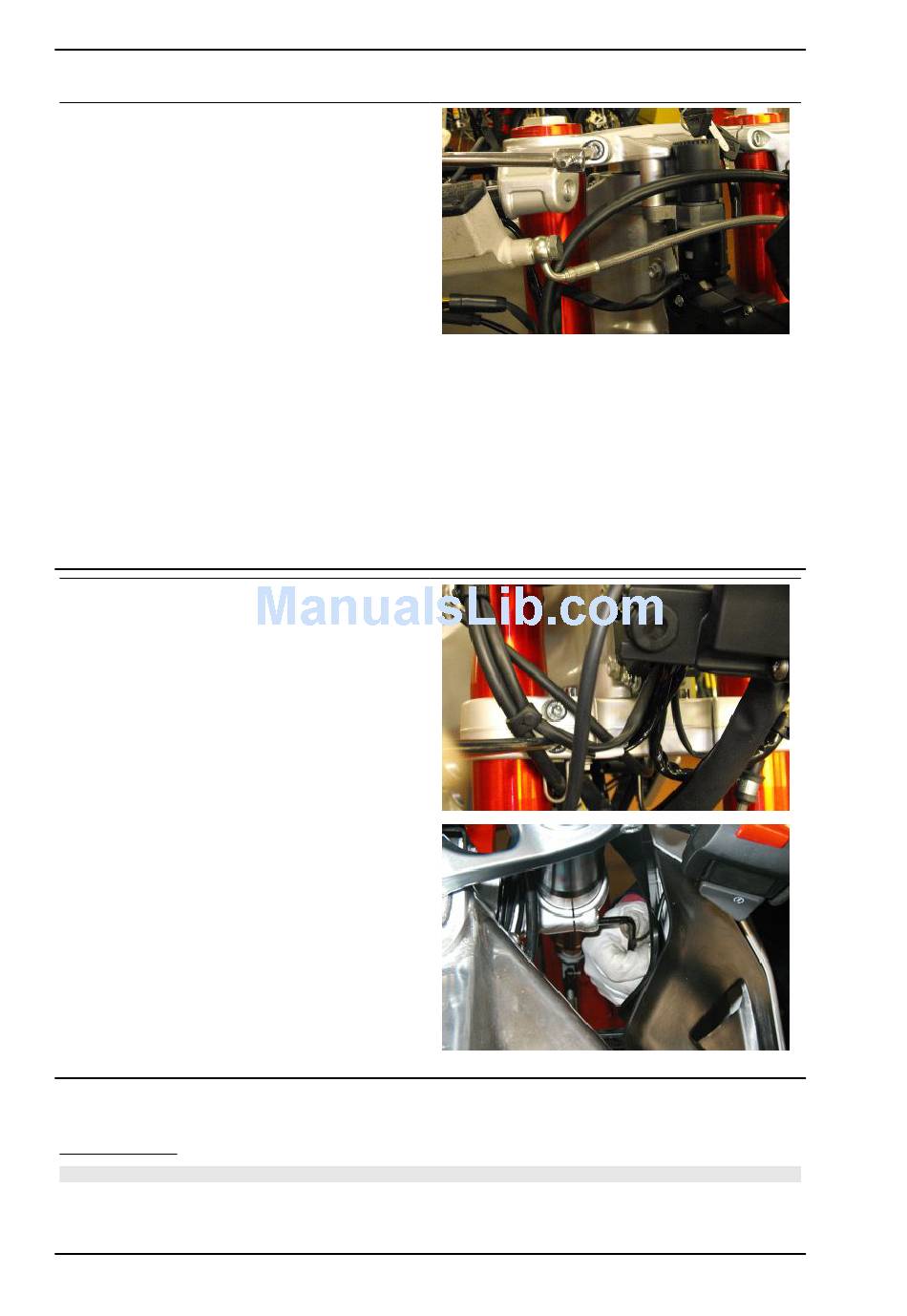

Loosen the fixing screw at the upper
steering plate.
See also
Rear
mudguard
Removing the
front wheel
•
For the operation with Mingxing fork,
loosen the two fixing screw at the lower
plate.
•
For the operation with fork Paioli, loos-
en the fixing screw at the lower plate.
•
Slide the stanchion downwards to re-
move it.

Disassembling the fork

PAIOLI FORKS

CAUTION
THE FOLLOWING PROCEDURES ARE FOR A SINGLE WHEEL CARRIER STANCHION/SLEEVE
ASSEMBLY, BUT ARE APPLICABLE TO BOTH.
SUSP - 150
RS4 50 MY2011
