Package information
7
Package information
In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK
specifications, grade definitions and product status are available at: www.st.com.
ECOPACK
7.1
LQFP48 package information
LQFP48 is a 48-pin, 7 x 7 mm low-profile quad flat package.
1. Drawing is not to scale.
80/102
®
packages, depending on their level of environmental compliance. ECOPACK
®
is an ST trademark.

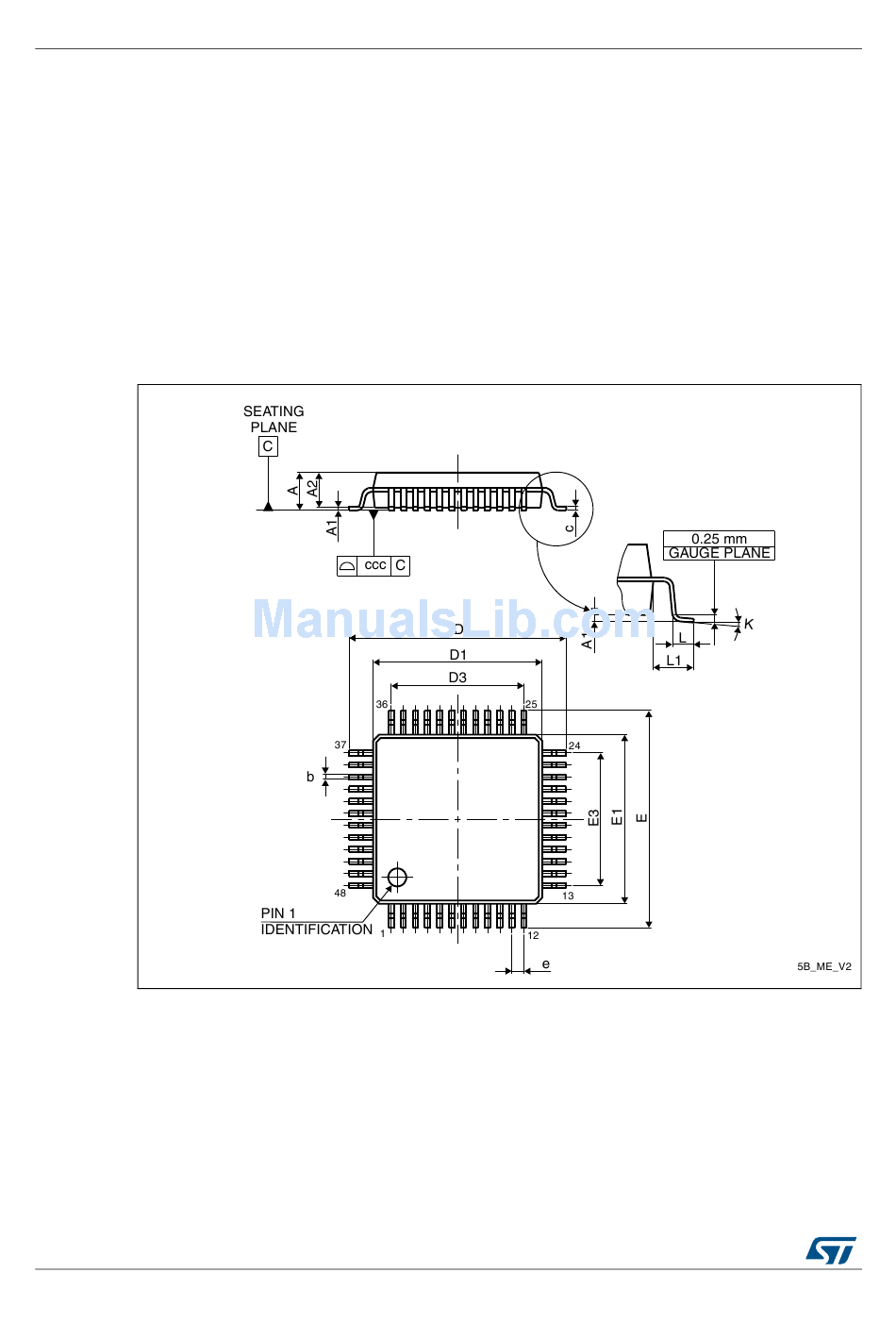

Figure 30. LQFP48 package outline
DocID026079 Rev 3
STM32F038x6
®
