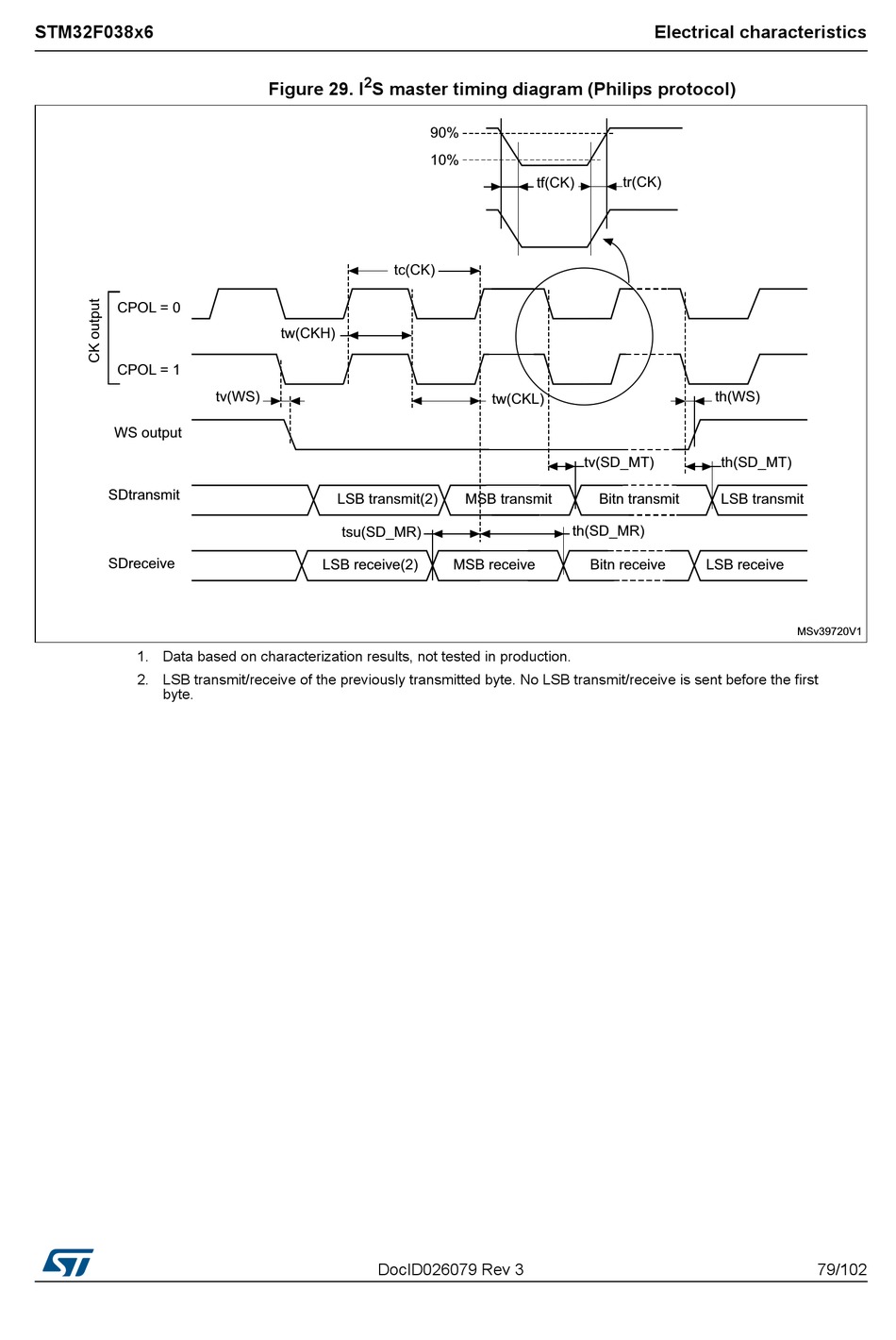

Figure 29. I2S Master Timing Diagram (Philips Protocol) - STMicroelectronics STM32F038C6 Manual

Arm-based 32-bit mcu with 32 kbyte flash, 9 timers, adc and communication interfaces, 1.8 v

Table of Contents

STM32F038x6

Electrical characteristics

Figure 29. I

S master timing diagram (Philips protocol)

1. Data based on characterization results, not tested in production.

2. LSB transmit/receive of the previously transmitted byte. No LSB transmit/receive is sent before the first

byte.
