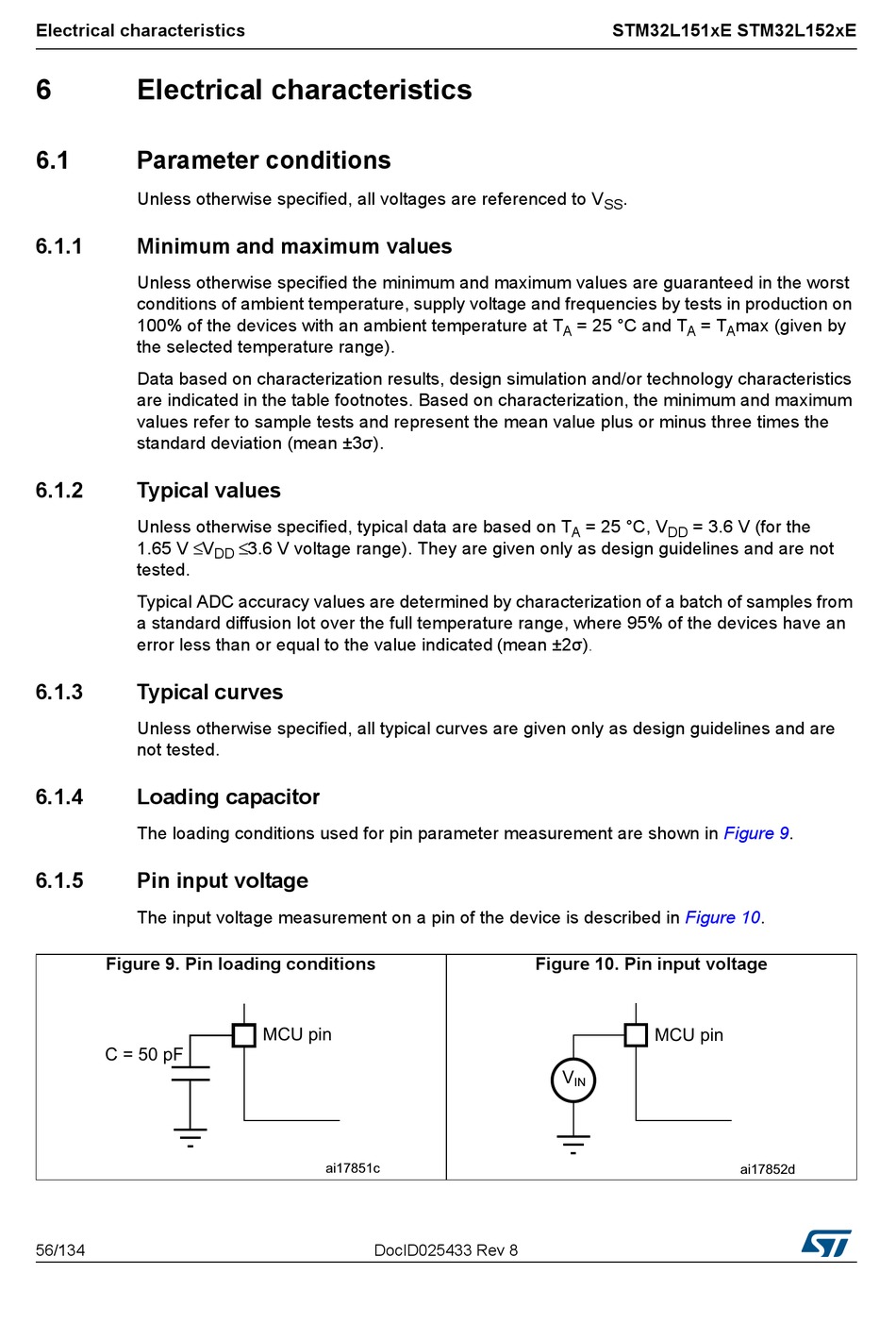

Electrical characteristics

6 Electrical characteristics
6.1

Parameter conditions

Unless otherwise specified, all voltages are referenced to V
6.1.1

Minimum and maximum values

Unless otherwise specified the minimum and maximum values are guaranteed in the worst
conditions of ambient temperature, supply voltage and frequencies by tests in production on
100% of the devices with an ambient temperature at T
the selected temperature range).
Data based on characterization results, design simulation and/or technology characteristics
are indicated in the table footnotes. Based on characterization, the minimum and maximum
values refer to sample tests and represent the mean value plus or minus three times the
standard deviation (mean ±3σ).
6.1.2

Typical values

Unless otherwise specified, typical data are based on T
1.65 V ≤ V
tested.
Typical ADC accuracy values are determined by characterization of a batch of samples from
a standard diffusion lot over the full temperature range, where 95% of the devices have an
error less than or equal to the value indicated (mean ±2σ)
6.1.3

Typical curves

Unless otherwise specified, all typical curves are given only as design guidelines and are
not tested.
6.1.4

Loading capacitor

The loading conditions used for pin parameter measurement are shown in
6.1.5

Pin input voltage

The input voltage measurement on a pin of the device is described in

Figure 9. Pin loading conditions

56/134
≤ 3.6 V voltage range). They are given only as design guidelines and are not
DD
DocID025433 Rev 8
STM32L151xE STM32L152xE
.
SS
= 25 °C and T = T
A A
= 25 °C, V = 3.6 V (for the
A DD
.
Figure

Figure 10. Pin input voltage

max (given by
A
Figure 9.
10.
