STM32L151xE STM32L152xE
ODD bit value, digital contribution leads to a min of (I2SDIV/(2*I2SDIV+ODD) and a max of
(I2SDIV+ODD)/(2*I2SDIV+ODD). Fs max is supported for each mode/condition.
1. Measurement points are done at CMOS levels: 0.3 × V
2. LSB transmit/receive of the previously transmitted byte. No LSB transmit/receive is sent before the first
byte.
1. Guaranteed by characterization results.
2. LSB transmit/receive of the previously transmitted byte. No LSB transmit/receive is sent before the first
byte.
2

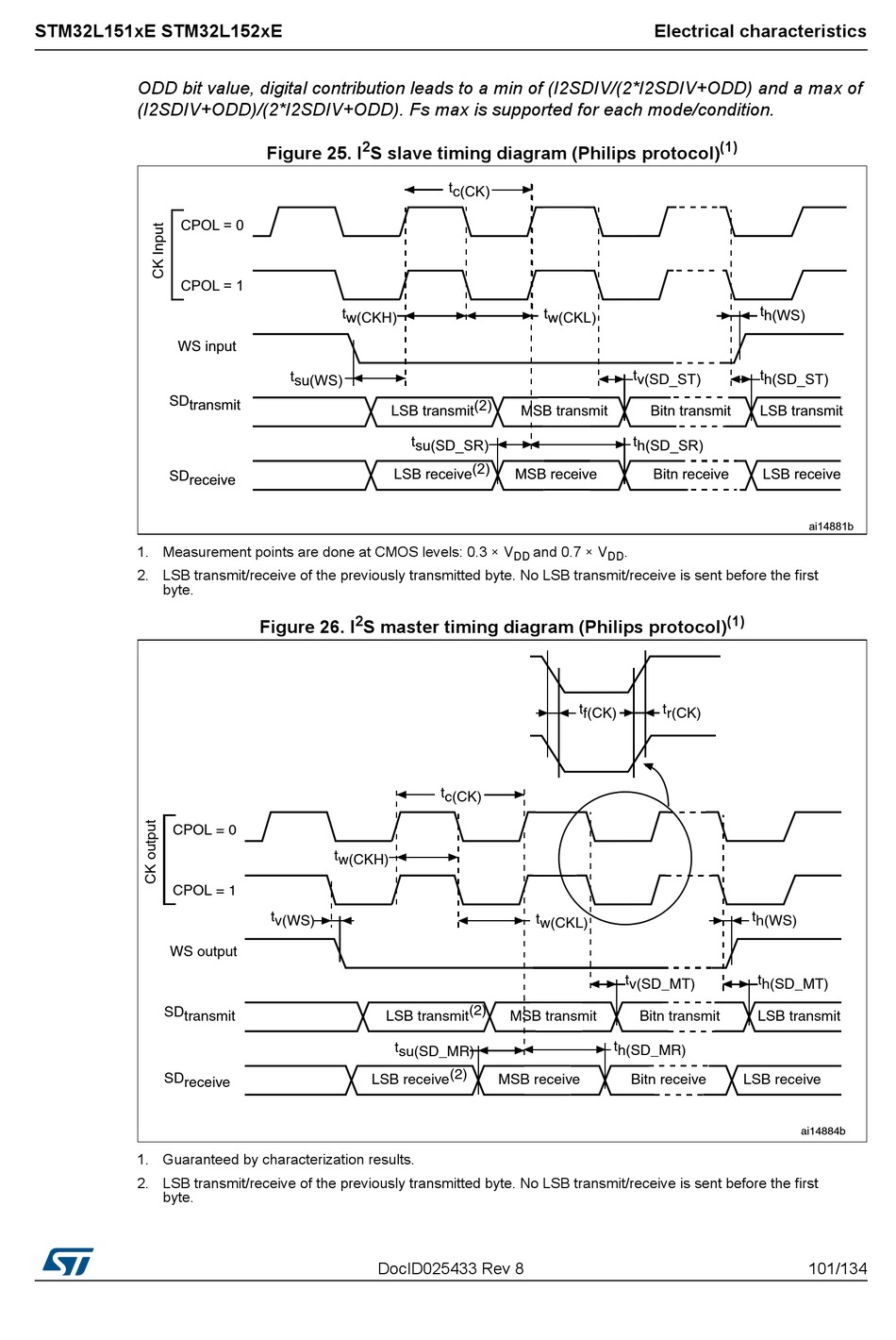

Figure 25. I S slave timing diagram (Philips protocol)
2
Figure 26. I S master timing diagram (Philips protocol)
DocID025433 Rev 8
Electrical characteristics
and 0.7 × V .
DD DD
(1)
(1)
101/134
113
