Figure 23. Spi Timing Diagram - Master Mode (1) - STMicroelectronics STM32L151RE Manual

Ultra-low -power 32-bit mcu arm-based cortex-m3 with 512kb flash, 80kb sram, 16kb eerom, lcd, usb, adc, dac

Table of Contents

Electrical characteristics

STM32L151xE STM32L152xE

(1)

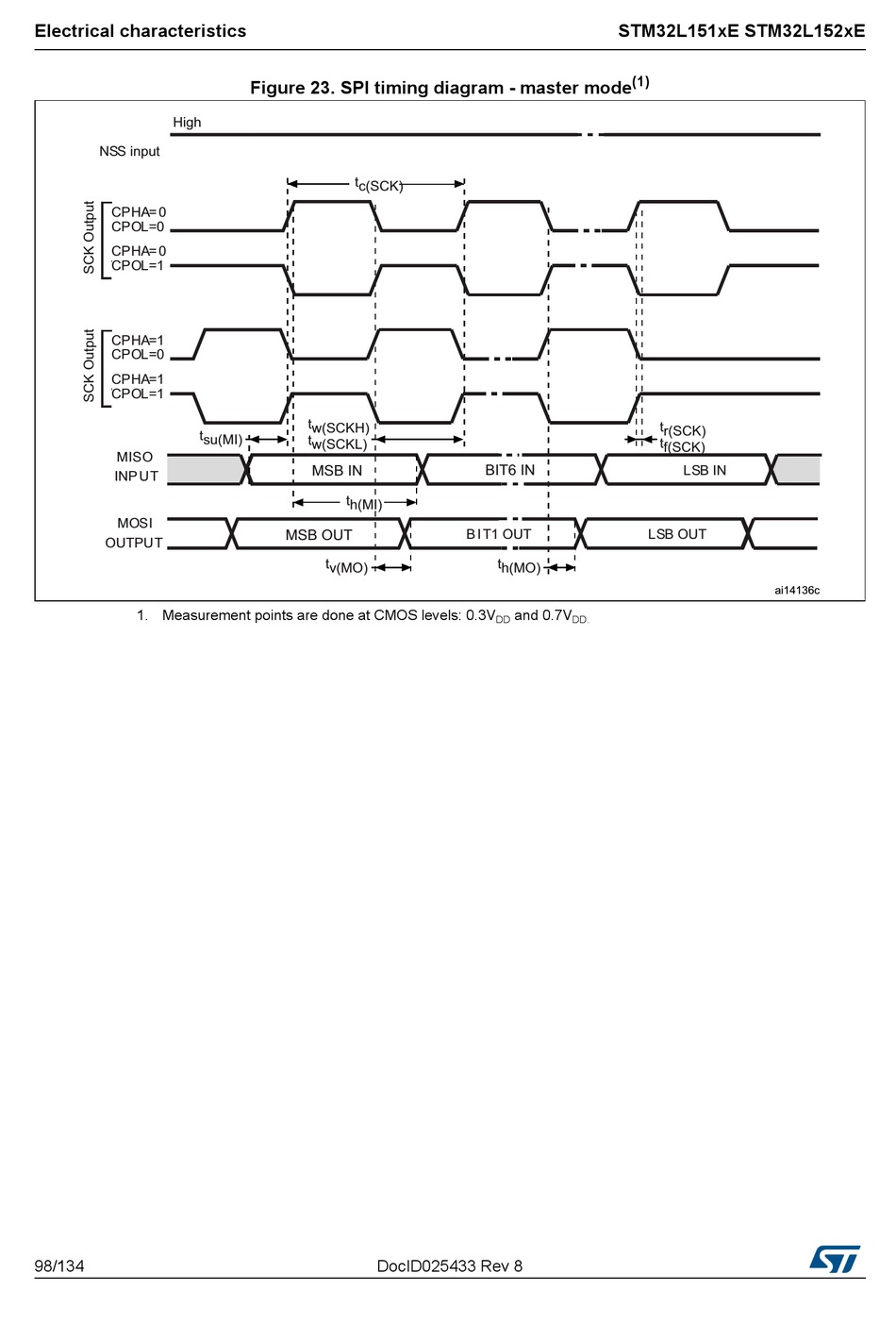

Figure 23. SPI timing diagram - master mode

1. Measurement points are done at CMOS levels: 0.3V

and 0.7V

DD.
