AMI Codes-II
Installation
Process
calibration
3.2.
Mounting re-
quirements
3.3.
3.3.1
Mounting of
SERTO fitting
A-96.250.571 / 050517
Make 3 manual measurements. Use a high quality photometer,
e.g. Chematest from Swan. Calculate average value and compare
this value to the value indicated by the AMI. If necessary, correct
the value. The zero point is done automatically before each mea-
surement.

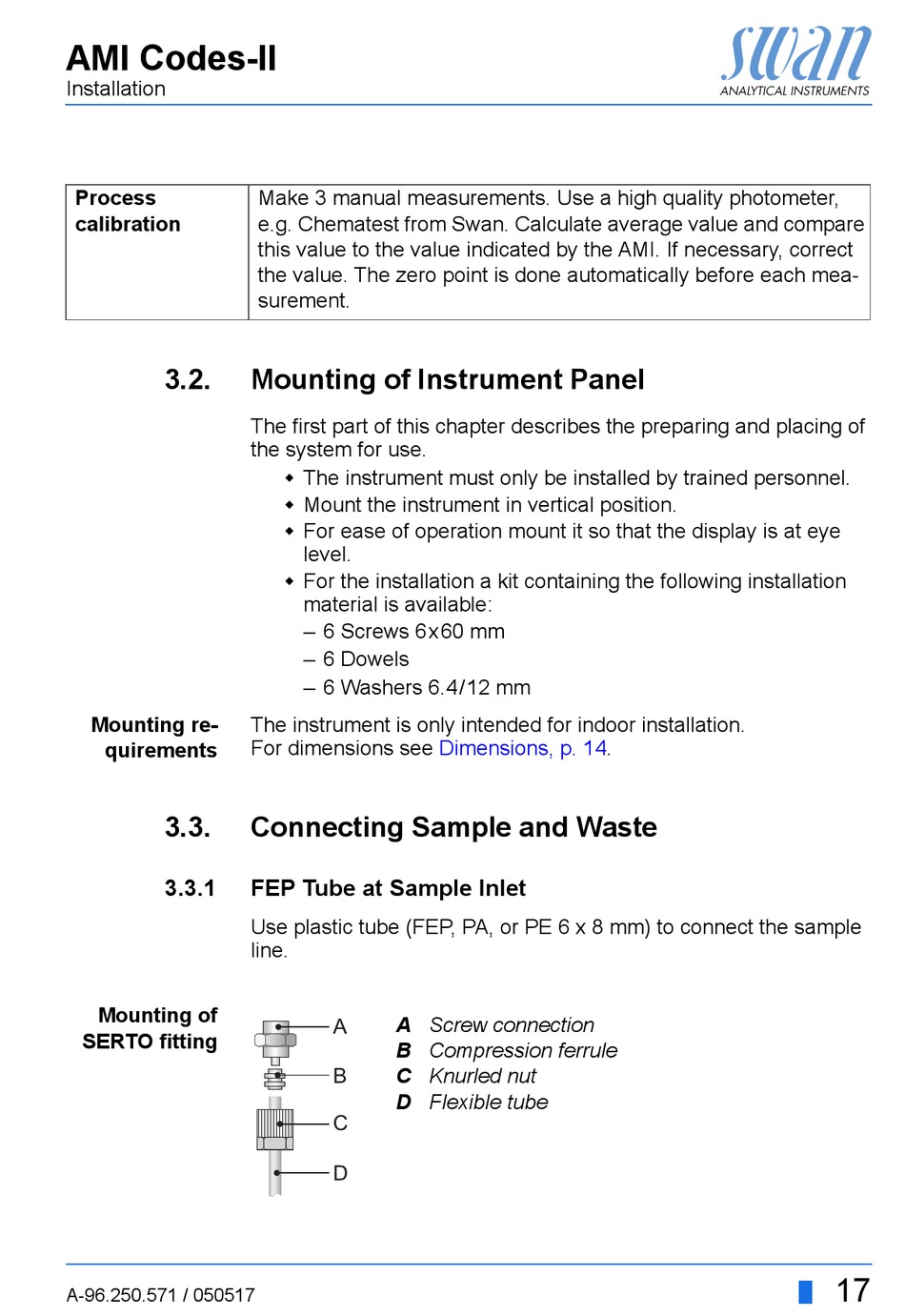

Mounting of Instrument Panel
The first part of this chapter describes the preparing and placing of
the system for use.
The instrument must only be installed by trained personnel.
Mount the instrument in vertical position.
For ease of operation mount it so that the display is at eye
level.
For the installation a kit containing the following installation
material is available:
– 6 Screws 6x60 mm
– 6 Dowels
– 6 Washers 6.4/12 mm
The instrument is only intended for indoor installation.
For dimensions see
Connecting Sample and Waste
FEP Tube at Sample Inlet
Use plastic tube (FEP, PA, or PE 6 x 8 mm) to connect the sample
line.
A
A
B
C
B
D
C
D
Dimensions, p.
14.
Screw connection
Compression ferrule
Knurled nut
Flexible tube
17
