AMI Codes-II
Installation
3.
3.1.
Check
On site require-
ments
Installation
Electrical Wiring Do not switch on the Instrument until all electrical connections
If ordered:
Option pH
Reagents
Power-up
Instrument
Setup
Run-in period
pH sensor
calibration
16

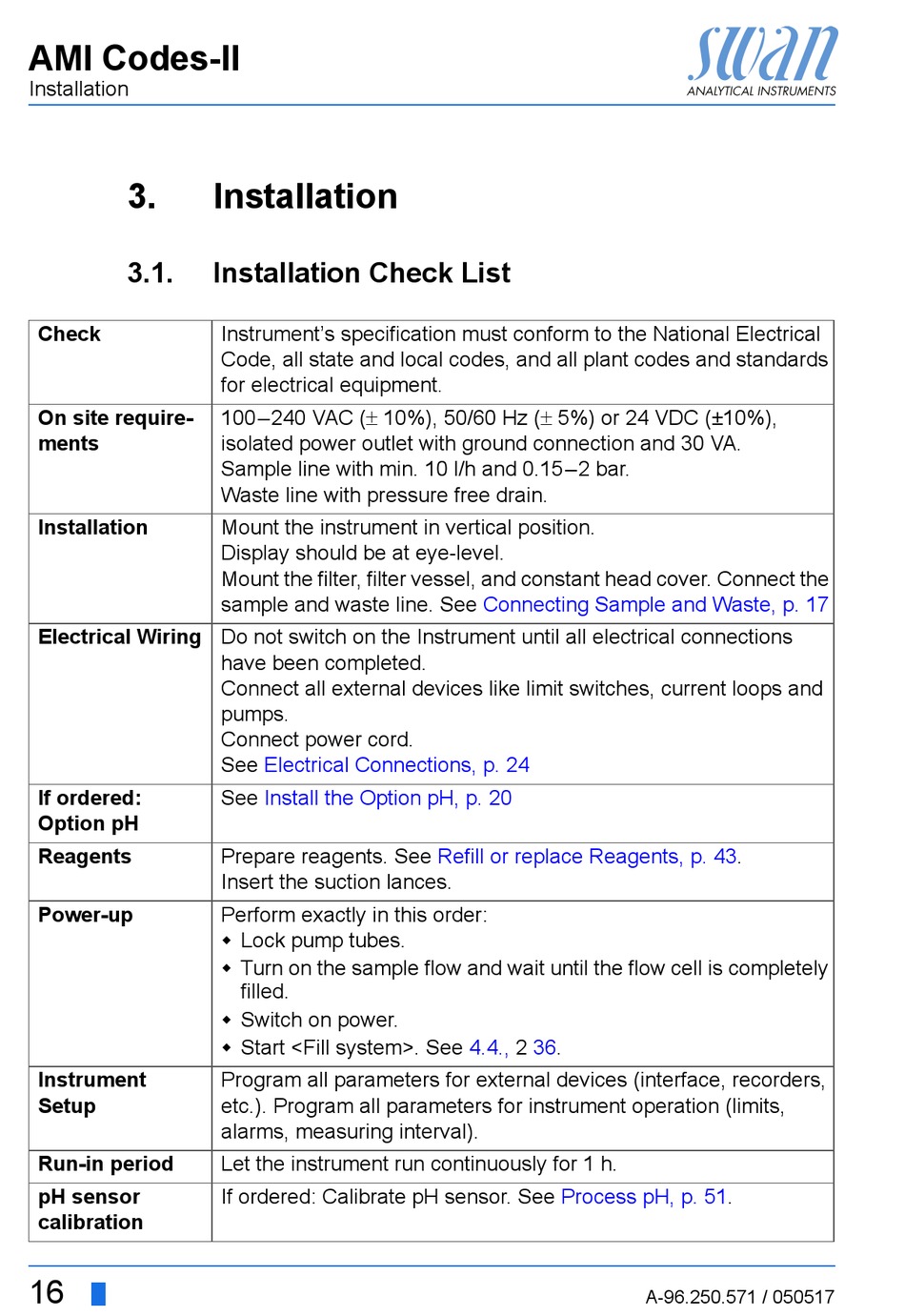

Installation
Installation Check List
Instrument's specification must conform to the National Electrical
Code, all state and local codes, and all plant codes and standards
for electrical equipment.
100–240 VAC ( 10%), 50/60 Hz ( 5%) or 24 VDC (±10%),
isolated power outlet with ground connection and 30 VA.
Sample line with min. 10 l/h and 0.15–2 bar.
Waste line with pressure free drain.
Mount the instrument in vertical position.
Display should be at eye-level.
Mount the filter, filter vessel, and constant head cover. Connect the
sample and waste line. See
have been completed.
Connect all external devices like limit switches, current loops and
pumps.
Connect power cord.
See
Electrical Connections, p. 24
See
Install the Option pH, p. 20
Prepare reagents. See
Insert the suction lances.
Perform exactly in this order:
Lock pump tubes.
Turn on the sample flow and wait until the flow cell is completely
filled.
Switch on power.
Start <Fill system>. See
Program all parameters for external devices (interface, recorders,
etc.). Program all parameters for instrument operation (limits,
alarms, measuring interval).
Let the instrument run continuously for 1 h.
If ordered: Calibrate pH sensor. See
Connecting Sample and Waste, p. 17
Refill or replace Reagents, p.
4.4.,
2 36.
Process pH, p.
43.
51.
A-96.250.571 / 050517
